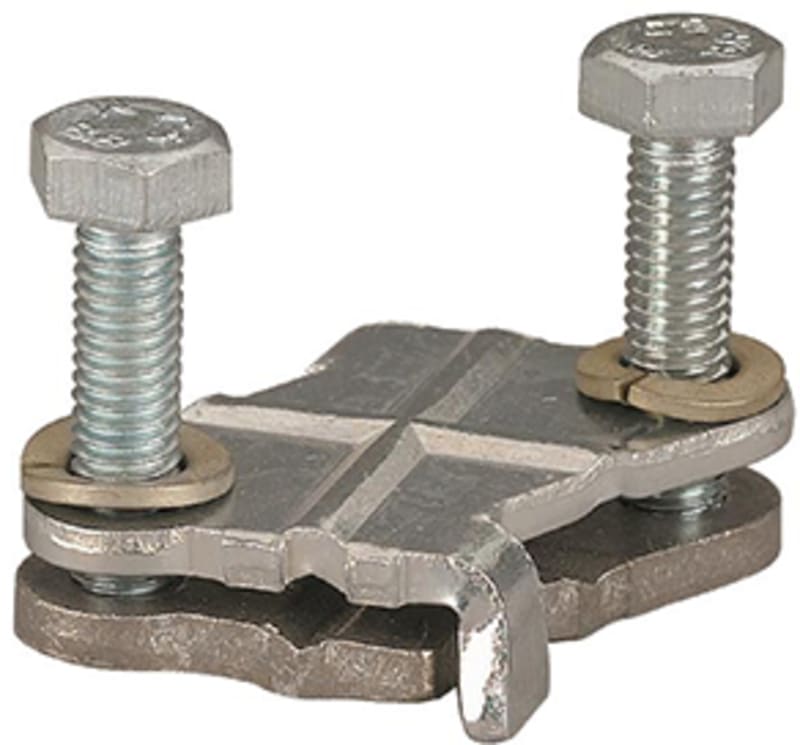

S.sk.terminal for CU20X5 (K20X15/40)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton S.sk.terminal for CU20X5 (K20X15/40) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 002285; Depth: 50 mm; Height: 40 mm; Width: 40 mm.
Technical Specifications
- Manufacturer part number (MPN)
- K20X15/40
- EAN / GTIN
- 4015080022855
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 002285
- Depth
- 50 mm
- Height
- 40 mm
- Width
- 40 mm
- Weight
- 0.072 kg
- Compliances
- RoHS conform
- Functions
- Terminal for flat strip
- Suitable for
- Strip conductor connection; Round conductor connection; Flat rail
- Used with
- Cu 20 x 5 mm busbars; Cu 20 x 10 mm busbars; Cu 20 x 15 mm busbars; Ci insulated enclosure; Accessory for busbar enclosures; Prepared enclosures; Accessory panel building
- Accessory/spare part type
- Ultra-flat busbar terminals; Busbar terminals
- Type
- Accessory for busbar enclosures Accessory panel building Ci insulated enclosure Prepared enclosures
- Rated operation current (Ie)
- 100 A; 400 A; 200 A; 160 A; 630 A; 250 A
- Rated operational current
- 400 A
- Rated operational current (Ie) - max
- 400 A
- Busbar thickness - max
- 10 mm
- Busbar thickness - min
- 5 mm
- Busbar width - max
- 20 mm
- Busbar width - min
- 20 mm
- Conductor cross section - max
- 124 mm²
- Terminal capacity (flat strip)
- 16 mm x 0.8 mm (10x); 9 mm x 0.8 mm (6x); 16 mm x 0.8 mm (6x); 16 mm x 0.8 mm (4x); 9 mm x 0.8 mm (3x); 21 mm x 1 mm (11x)
- Terminal capacity (round conductor)
- 1.5 mm² - 10 mm²; 1.5 mm² - 6 mm²
- Width clamp
- 32 mm
- Max. conductor cross section
- 124 mm²
- Busbar thickness
- 5–10 mm
- Suitable for strip conductor connection
- Yes
- Suitable for round conductor connection
- Yes
- Suitable for sector conductor connection
- No
- Max. rated operation current Ie
- 400 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015080022855
- SAP 1000788207
- Code 81399459
Product Documentation
