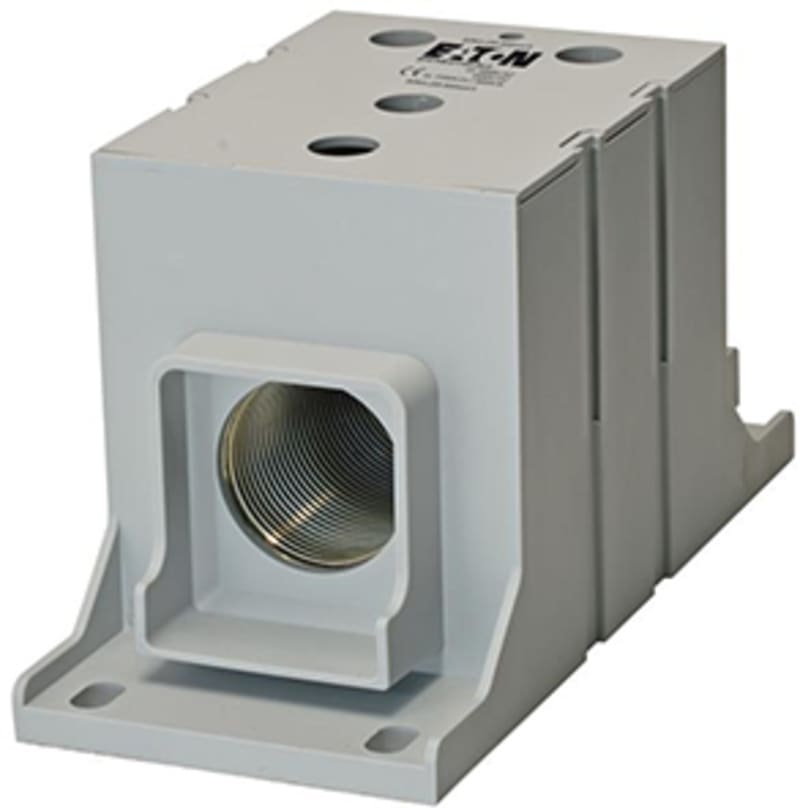

Terminal 1-Pole 1100A
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Terminal 1-Pole 1100A (part number BPZ-KB-2/1100-ALU) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 178404; Depth: 107 mm; Height: 202 mm; Width: 89.6 mm.
Technical Specifications
- Manufacturer part number (MPN)
- BPZ-KB-2/1100-ALU
- EAN / GTIN
- 4015081737079
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 178404
- Depth
- 107 mm
- Height
- 202 mm
- Width
- 89.6 mm
- Weight
- 2.034 kg
- Compliances
- RoHS conform
- Certifications
- IEC 60 947 -7 -1
- Comparative tracking index (CTI)
- 600 V
- Flame classification (UL 94)
- V-0
- Functions
- Additional equipment
- Amperage rating
- 1100 A
- Number of poles
- Single-pole
- Heat deflection temperature
- 100 °C
- Rated operation current (Ie) Al (IEC)
- 900 A
- Rated operation current (Ie) Cu (IEC)
- 1100 A
- Voltage rating at AC Al (IEC) - max
- 1000 VAC
- Voltage rating at AC Cu (IEC) - max
- 1000 VAC
- Voltage rating at DC Al (IEC) - max
- 1500 VDC
- Voltage rating at DC Cu (IEC) - max
- 1500 VDC
- Clamp material
- Aluminum; Plated
- Conductor cross section (solid, solid-strand) - max
- 500 mm²
- Conductor cross section (solid, solid-strand) - min
- 50 mm²
- Housing color
- Light gray (RAL 7035)
- Housing material
- PA66
- Material
- Aluminum
- Mounting method
- Flush mounting; Floor standing distribution board; Surface mounting
- Mounting position
- Universal
- Number of clamp positions per pole
- 3
- Number of clamping units per pole
- 3
- Terminal capacity (single/multi-wire)
- 1.5 mm² - 16 mm² (test connection); 1.5 mm² - 10 mm² (test connection, fine wire (with sleeve)); 50 mm² - 240 mm² (outgoing, fine wire (with sleeve)); 95 mm² - 500 mm² (incoming); 95 mm² - 500 mm² (incoming, fine wire (with sleeve)); 50 mm² - 300 mm² (outgoing)
- Degree of protection
- IP10
- Torque rating
- 80 Nm (incoming). 50 Nm (outgoing). 3 Nm (test connection)
- Conductor cross section solid (solid, stranded)
- 50–500 mm²
- Max. rated current
- 1100 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081737079
- SAP 1200562698
- Code 82905848
Product Documentation
More from Eaton
Eaton
NH3L Cover Replacement XNH2015
XNH3-XGRIP-FCL
Eaton
Wall-mount cabinet IP55 xE DB-lock H1060 B400 D270
110839
Eaton
Position Switch LS-S11S/RR
Eaton
Soft starter S811+, 1000A, pump
169012
Eaton
Eaton NZM1-XU24DC
Eaton
Eaton IZMX-KLP-SO-KIRK-1
Eaton
Contactor,DILA-22(110V50HZ,120V60HZ) (DILA-22(110V50HZ,120V60HZ)-PI)
Eaton
Busbaradapter (BBA4/2TS-L)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy BPZ-KB-2/1100-ALU?
- BPZ-KB-2/1100-ALU can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is BPZ-KB-2/1100-ALU.
- What is the HS code for BPZ-KB-2/1100-ALU?
- The customs tariff (HS) code for BPZ-KB-2/1100-ALU is 8536.90.
- Who manufactures BPZ-KB-2/1100-ALU?
- BPZ-KB-2/1100-ALU is a Eaton product in the Electrical Components range.
- Is a datasheet available for BPZ-KB-2/1100-ALU?
- Yes — the BPZ-KB-2/1100-ALU datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for BPZ-KB-2/1100-ALU?
- The minimum order quantity is 1.
- Is BPZ-KB-2/1100-ALU available?
- Yes — BPZ-KB-2/1100-ALU is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
