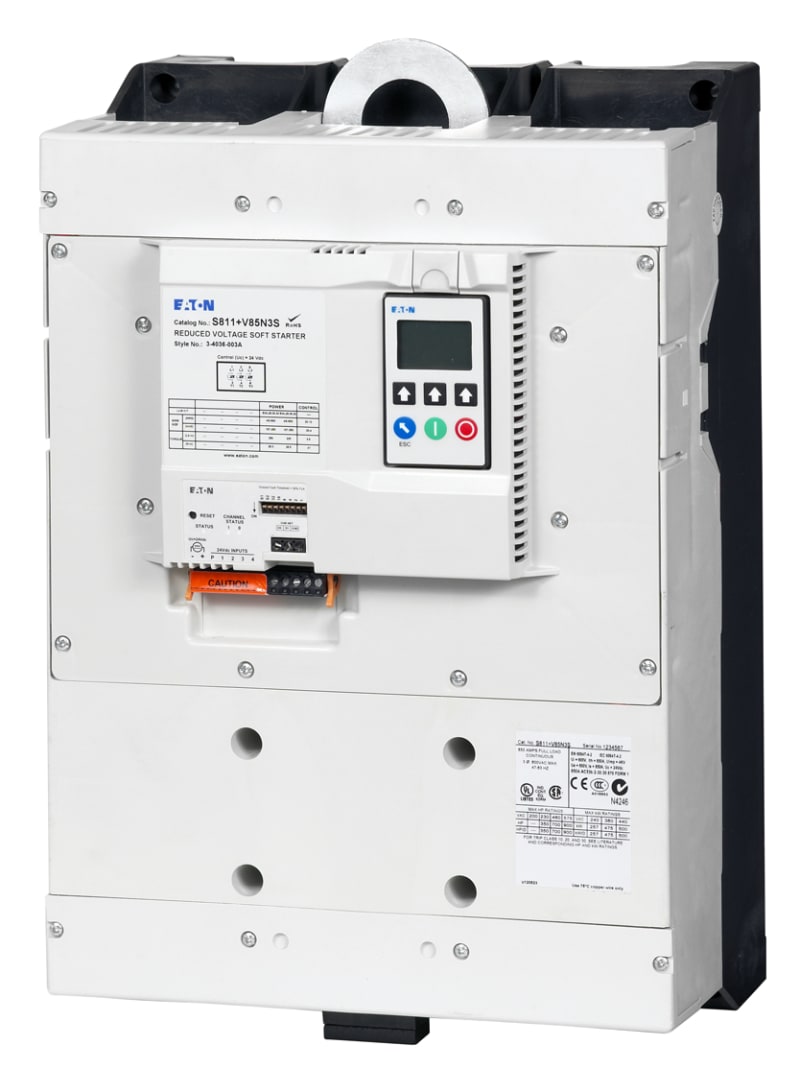

Soft starter S811+, 1000A, pump
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Soft starter S811+, 1000A, pump (part number 169012) is listed under Drives & Controllers / Soft Starters. Sales unit: pcs; Eaton catalogue number: 169012; Depth: 187.8 mm; Height: 420.8 mm; Width: 280.6 mm; Weight: 41.4 kg.
Technical Specifications
- Manufacturer part number (MPN)
- 169012
- EAN / GTIN
- 4015081655052
- Sales unit
- pcs
- Eaton catalogue number
- 169012
- UPC
- 786680238277
- Depth
- 187.8 mm
- Height
- 420.8 mm
- Width
- 280.6 mm
- Weight
- 41.4 kg
- Certifications
- CE
- Type
- Soft starter
- Fitted with
- Internal bypass; Motor overload protection; Display
- Class
- Adjustable
- Ambient operating temperature - max
- 50 °C
- Voltage type
- DC
- Rated operational voltage (Ue) - min
- 200 V
- Rated power three-phase motor, inline, at 230 V
- 200 kW
- Rated power three-phase motor, inline, at 400 V
- 560 kW
- Rated power three-phase motor, inside delta, at 230 V
- 200 kW
- Rated power three-phase motor, inside delta, at 400 V
- 900 kW
- Degree of protection
- IP20; NEMA Other
- Functions
- Single direction
- Rated control supply voltage (Us) at DC - max
- 24 V
- Rated control supply voltage (Us) at DC - min
- 24 V
- Rated operational current (Ie) at AC-53
- 1000 A
- Rated operational voltage (Ue) - max
- 600 V
- With display
- Yes
- Rated operating voltage Ue
- 200–600 V
- Rated control supply voltage DC
- 24 V
- Release class
- Adjustable
- Rated operation current Ie at 40 °C Tu
- 1000 A
- Rated surrounding temperature without derating
- 50 °C
- Integrated motor overload protection
- Yes
- Voltage type for actuating
- DC
- Internal bypass
- Yes
- Torque control
- No
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4015081655052
- SAP 1200185997
- Code 82120453
Product Documentation
More from Eaton
Eaton
Eaton NZM1-XU24DC
Eaton
Eaton IZMX-KLP-SO-KIRK-1
Eaton
Contactor,DILA-22(110V50HZ,120V60HZ) (DILA-22(110V50HZ,120V60HZ)-PI)
Eaton
Busbaradapter (BBA4/2TS-L)
Eaton
NH2E Cover Replacement XNH2015
XNH2-XGRIP-FCE
Eaton
Instrumentswitch Voltage (T0-3-8007/Z)
Eaton
Meter Panel 5 mustlere xE H400 B1200
BPZ-MT-1200/400-5
Eaton
Reversing Plug-In Module PKZM0-XRM12 for DILM7–12 Contactors
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 169012?
- 169012 can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is 169012.
- What is the HS code for 169012?
- The customs tariff (HS) code for 169012 is 8504.40.
- Who manufactures 169012?
- 169012 is a Eaton product in the Drives & Controllers range.
- Is a datasheet available for 169012?
- Yes — the 169012 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 169012?
- The minimum order quantity is 1.
- Is 169012 available?
- Yes — 169012 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
