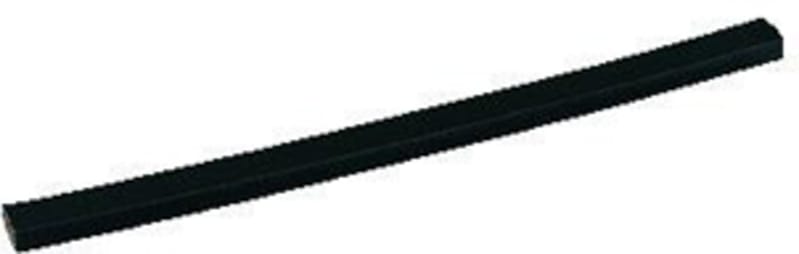

FLEXIBLE RAIL 1 pcs=2M (CU-BAND6X9X0,8-Bk)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton FLEXIBLE RAIL 1 pcs=2M (CU-BAND6X9X0,8-Bk) is listed in the cBallast industrial catalogue. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 081414; Depth: 2000 mm; Height: 9 mm; Width: 12 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CU-BAND6X9X0,8-BK
- EAN / GTIN
- 4015080814146
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 081414
- Depth
- 2000 mm
- Height
- 9 mm
- Width
- 12 mm
- Weight
- 0.964 kg
- Compliances
- EN 60439-1; UL CSA09 (max. 105 °C); UL 758; CE marking; EN 60439-3; RoHS conform
- Certifications
- UL (Category Control Number AVLV2); North America (UL listed, certified by UL for use in Canada); UL (File No. E248096)
- Used with
- Appliance wiring material; Copper band isolated
- Special features
- E‐Cu laminated conductor, tin-plated UL approved up to max. 600 V AC Insulating material heat resistant up to +105 °C
- Type
- General switchboard accessory
- Features
- Laminated; Self-extinguishing acc. UL 94 V0
- Accessory/spare part type
- Copper band insulated
- Voltage rating
- 1000 V AC, 1500 V DC
- Voltage rating (UL CSA 13)
- Max. 600 V AC, 750 V DC
- Busbar thickness
- 8.8 mm
- Cross section
- 43.2 mm²
- Lamella thickness
- 0.8 mm
- Number of fuse holders (knife blade)
- 6
- Amperage rating
- 160 A
- Color
- Black, similar to RAL 9005
- Dielectric strength
- 20 kV/mm
- Dimensions - band specification
- 6 mm x 9 mm x 0.8 mm
- Rated operation current (Ie)
- 160 A
- Thickness
- 8.8 mm
- Length
- 2000 mm
- Laminated
- Yes
- Number of lamellas
- 6
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7419.80
Cross References
- EAN 4015080814146
- SAP 1200562657
- Code 82906013
