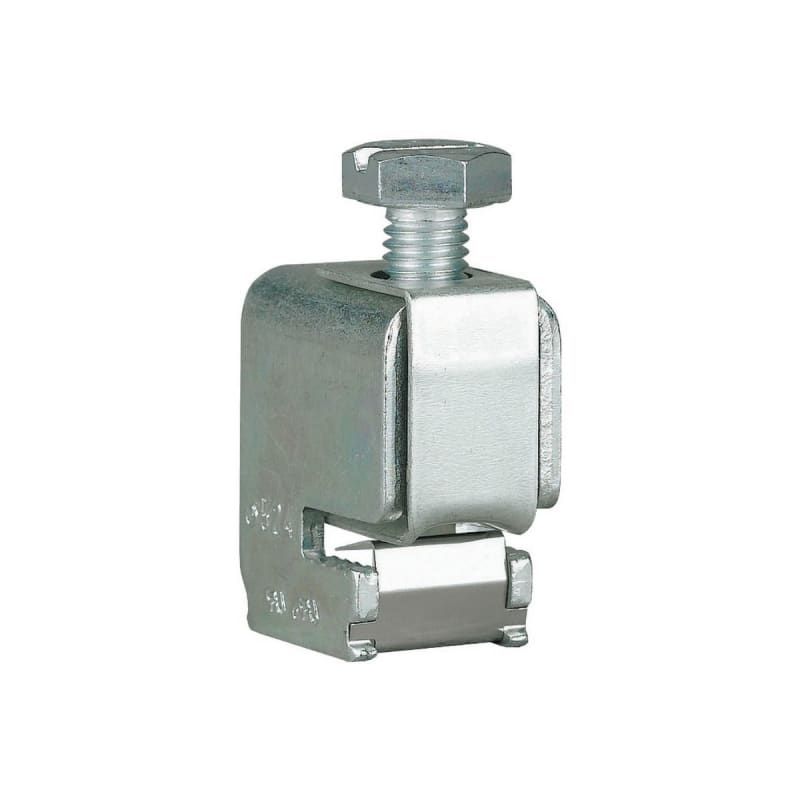

Connection Terminal 16-120mm², f 5mm
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Connection Terminal 16-120mm², f 5mm (part number AKU120/5) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 25 pcs; Eaton catalogue number: 107190; Depth: 24 mm; Height: 55 mm; Width: 36 mm.
Technical Specifications
- Manufacturer part number (MPN)
- AKU120/5
- EAN / GTIN
- 4015081069538
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Eaton catalogue number
- 107190
- Depth
- 24 mm
- Height
- 55 mm
- Width
- 36 mm
- Weight
- 0.101 kg
- Compliances
- UL CSA09 (refer to approbation report); RoHS conform
- Certifications
- North America (UL listed, CSA certified); CSA-C22.2 No. 14; UL (File No. E307559); CE marking; UL (Category Control Number NMTR2, NMTR8); IEC 60439-1; CSA (Class No. 3211-37); CSA (File No. 236217); UL508A
- Functions
- Current limiting circuit breaker, refer to approbation report; Universal conductor connection terminal; Connections
- Special features
- With integrated retaining spring, open terminal chamber and captive terminal screw
- Suitable for
- Sector conductor connection; Flat rail; Round conductor connection; Strip conductor connection
- Used with
- All 5 mm thick flat busbars; Feeder circuits; 60 mm system; Connection; Compact system
- Type
- 60 mm system Compact system Connection
- Rated operation current (Ie)
- 440 A
- Rated operational current
- 440 A
- Rated operational current (Ie) - max
- 440 A
- Voltage rating (UL CSA 13)
- Max. 600 V AC
- Busbar thickness - max
- 5 mm
- Busbar thickness - min
- 5 mm
- Conductor cross section - max
- 120 mm²
- Degree of protection
- Feeder circuits; UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking
- Terminal capacity (conductor)
- AWG 4 - MCM 250; 16 mm² - 120 mm²; 16 mm x 0.8 mm (4x); 16 mm x 0.8 mm (10x); 16 mm x 0.8 mm (6x)
- Terminal contact area
- 17 mm x 15 mm
- Width clamp
- 23.5 mm
- Max. conductor cross section
- 120 mm²
- Busbar thickness
- 5 mm
- Suitable for strip conductor connection
- Yes
- Suitable for round conductor connection
- Yes
- Suitable for sector conductor connection
- Yes
- Max. rated operation current Ie
- 440 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081069538
- SAP 1200607342
- Code 82995635
Product Documentation
More from Eaton
Eaton

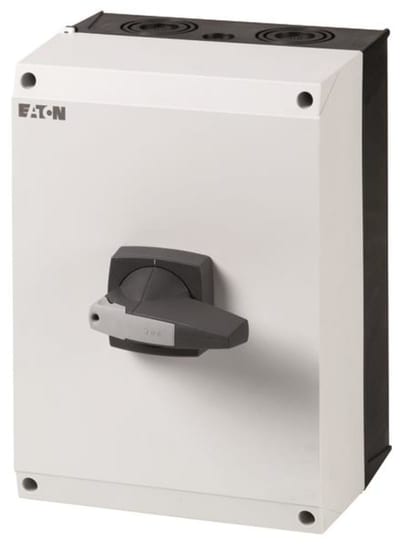

Serviceswitch 3P 160A
DMM-160/3/I5/P-G
Eaton

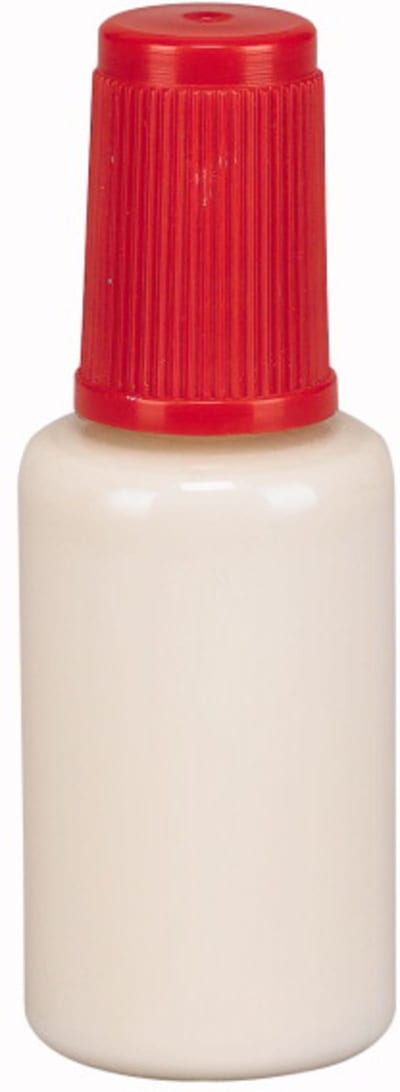

Lacquer, RAL9016 (PAINT-RAL9016)
Eaton
Eaton FRCMM-63/4/03-G/A (170305)
Eaton

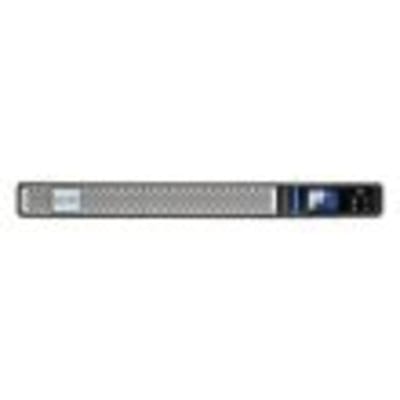

Eaton 5P 650I Rack 1U Netpack G2
5P650IRNG2
Eaton

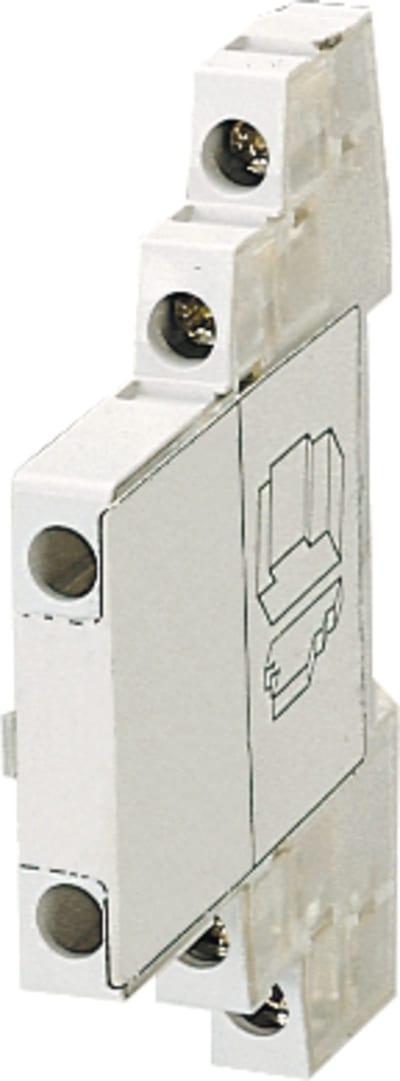

Auxiliary contact (NHI12-PKZ0)
Eaton
Cable-terminal rail (BPZ-KFS-600)
Eaton

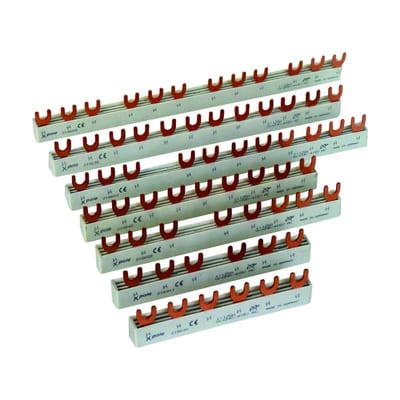

Busbar PKPM TN 3+N 8 pcs
EVG-16/4PHAS/L-N-X/8PC
Eaton

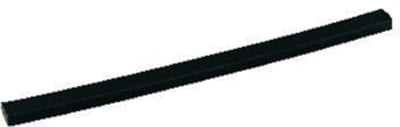

FLEXIBLE RAIL 1 pcs=2M (CU-BAND3X9X0,8-Bk)
