Eaton

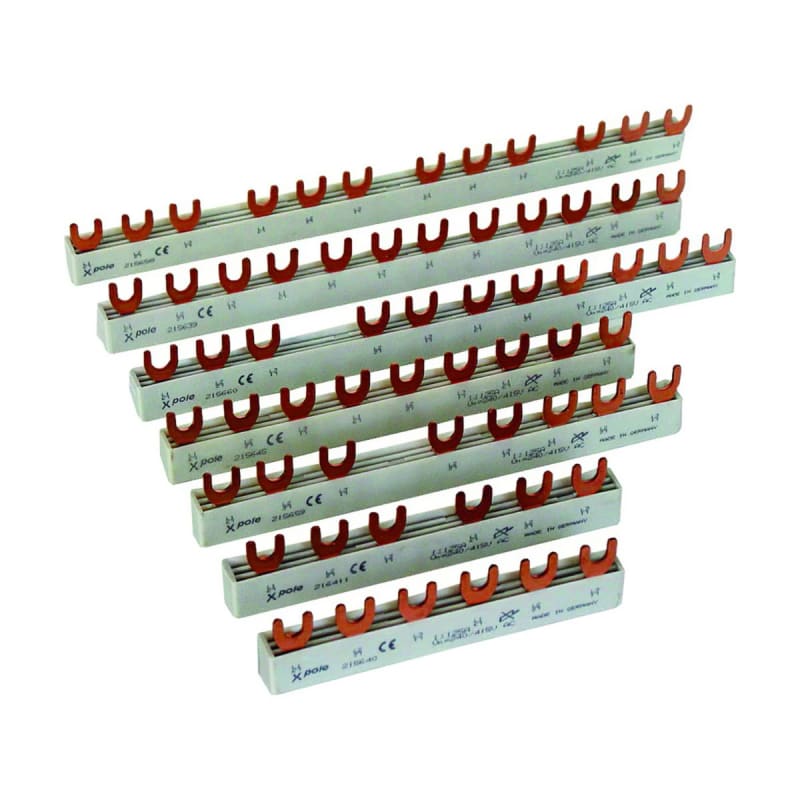

Busbar PKPM TN 3+N 8 pcs
Part numberEVG-16/4PHAS/L-N-X/8PCEAN / GTIN4015081166213HS code8536.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton EVG-16/4PHAS/L-N-X/8PC EVG-16/4PHAS/L-N-X/8PC.
Technical Specifications
- Manufacturer part number (MPN)
- EVG-16/4PHAS/L-N-X/8PC
- EAN / GTIN
- 4015081166213
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 116881
- Depth
- 415 mm
- Height
- 30.3 mm
- Width
- 13.3 mm
- Weight
- 0.249 kg
- Compliances
- RoHS conform
- Electric connection type
- Fork
- Rated surge voltage
- 4 KV
- Rated uninterrupted current (Iu)
- 80 A
- Suitable for number of devices
- 2
- Number of poles
- Four-pole
- Color
- Other
- Cross section
- 16 mm²
- Number of modular spacings
- 24
- Number of phases
- 4
- Pitch dimensions
- 17.8 mm
- Rated operational voltage (Ue) - max
- 415 V
- Rated conditional short-circuit current (Iq)
- 25 kA
- Colour
- Grey
- Insulated
- No
- Rated permanent current Iu
- 80 A
- Length
- 415 mm
- Conditioned rated short-circuit current Iq
- 25 kA
- Width in number of modular spacings
- 24
- Type of electric connection
- Fork
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Max. rated operation voltage Ue
- 415 V
- Module width
- 17.8 mm
- Can be cut to size
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081166213
- SAP 1200563130
- Code 82903712
Product Documentation
Document preview: Busbar PKPM TN 3+N 8stk (EVG-16/4PHAS/L-N-X/8PC) — Specification Data Sheet (OEM)
