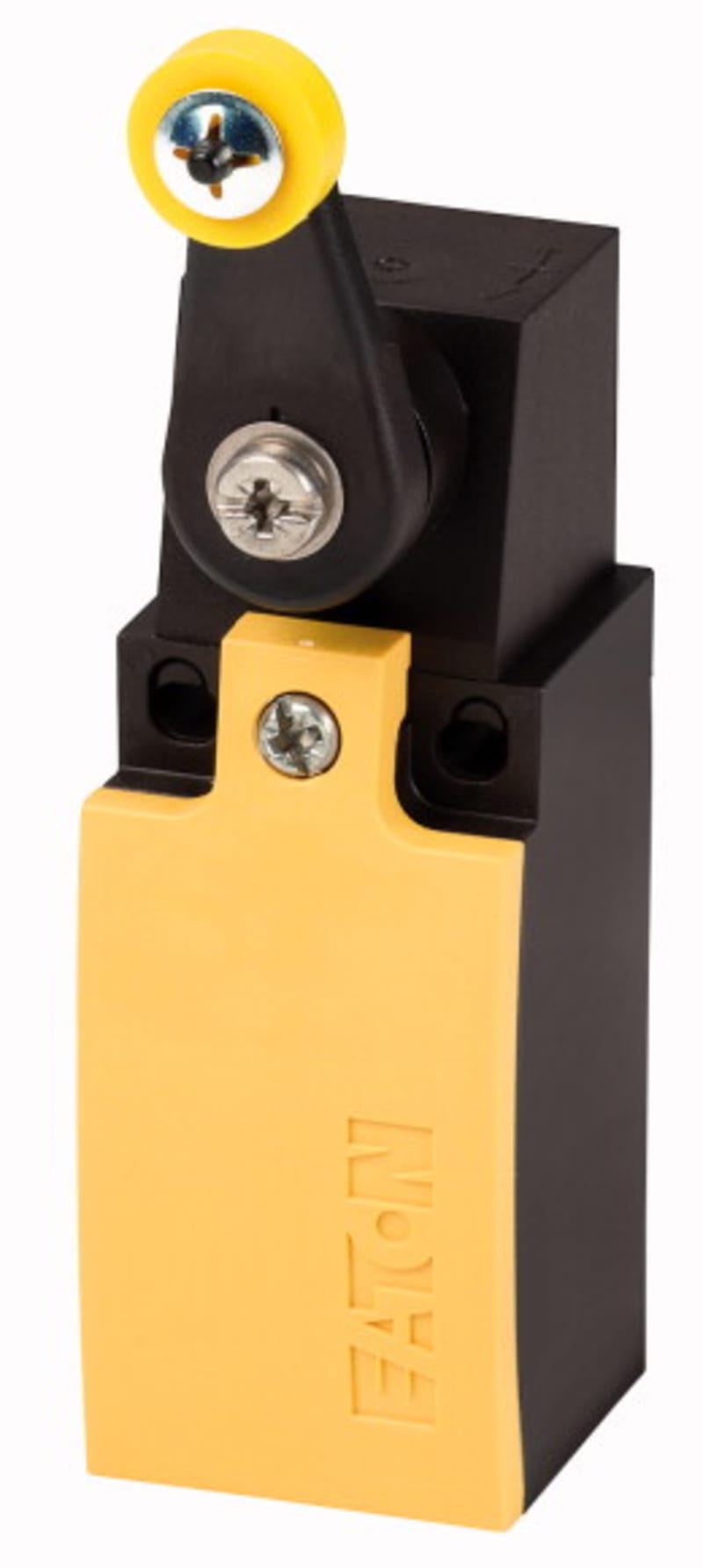

Limit Switch 1S1TO WITH Svingarm

Eaton Limit Switch 1S1TO WITH Svingarm (part number LS-11/RL) is listed under Sensors & Instrumentation / Position Switches. HS code: 8536.90; Sales unit: pcs; Package quantity: 2 pcs; Eaton catalogue number: 266111; Depth: 33.5 mm; Height: 110 mm.

Manufacturer part number (MPN)

LS-11/RL

EAN / GTIN

4015082661113

HS code

8536.90

Sales unit

pcs

Package quantity

2 pcs

Eaton catalogue number

266111

Depth

33.5 mm

Height

110 mm

Width

31 mm

Weight

0.066 kg

Certifications

IEC/EN 60947; CSA File No.: 012528; CSA-C22.2 No. 14; CE marking; UL 508; UL Listed; UL File No.: E29184; CSA Class No.: 3211-03; IEC/EN 60947-5; UL Category Control No.: NKCR; CSA certified

Actuating force at beginning/end of stroke

1.0 N/8.0 N

Actuating torque of rotary drives

0.2 Nm

Actuator type

Rotary lever

Operating speed

For angle of actuation α = 0°; Max. 1.5 m/s (with DIN cam, mechanical actuation)

Mounting position

As required

Shock resistance

25 g, Standard-action contact, Mechanical, Half-sinusoidal shock 20 ms

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Control circuit reliability

1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA); 1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0.17 W

Rated operational current for specified heat dissipation (In)

6 A

Static heat dissipation, non-current-dependent Pvs

0 W

Rated insulation voltage (Ui)

400 V

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at AC-15, 24 V

6 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at DC-13, 110 V

0.6 A

Rated operational current (Ie) at DC-13, 125 V

0.8 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.3 A

Rated operational current (Ie) at DC-13, 24 V

3 A

Short-circuit protection rating

Max. 6 A gG/gL, Fuse, Contacts

Supply frequency

Max. 400 Hz, Contacts

Design

EN 50047 Form A

Electric connection type

Cable entry metrical

Enclosure color

Yellow Cover

Enclosure material

Plastic; Insulated material

Features

Forced opening; Positive opening

Switch function type

Slow-action switch

Connection type

Cage Clamp

Degree of protection

IP66/IP67; NEMA 4X, 13

Lifespan

8,000,000 mechanical Operations

Operating frequency

6000 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Rotary lever

Rated impulse withstand voltage (Uimp)

4000 V AC

Repetition accuracy

0.15 mm (Contacts/switching capacity)

Suitable for

Safety functions

Type

Safety position switch

Explosion safety category for dust

None

Explosion safety category for gas

None

Terminal capacity (flexible with ferrule)

1 x (0.5 - 1.5) mm²

Terminal capacity (solid)

1 x (0.5 - 2.5) mm²

HS Code

8536.90

• EAN 4015082661113
• SAP 1000043912
• Code 8773212
