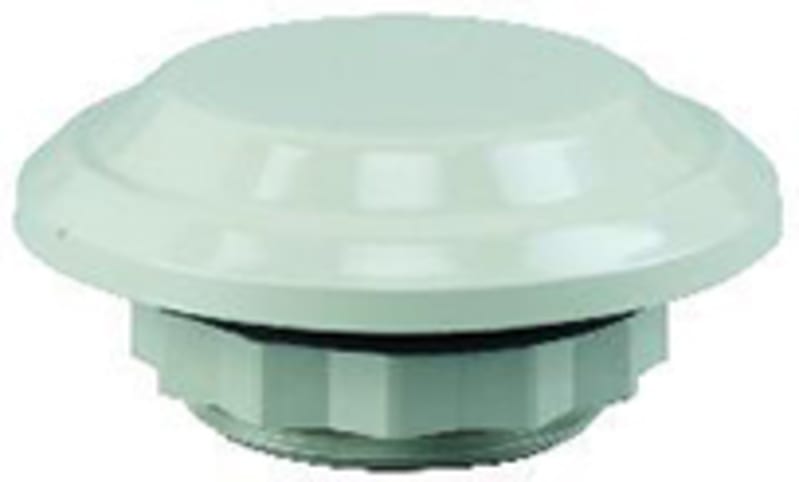

Pressure komp. NIPPELIP55 PG
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Pressure komp. NIPPELIP55 PG (part number DA412) is listed under Electrical Components / Cable Glands. Sales unit: pcs; Package quantity: 2 pcs; Eaton catalogue number: 079219; Depth: 66 mm; Height: 31 mm; Width: 66 mm.
Technical Specifications
- Manufacturer part number (MPN)
- DA412
- EAN / GTIN
- 4015081995448
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Eaton catalogue number
- 079219
- Depth
- 66 mm
- Height
- 31 mm
- Width
- 66 mm
- Weight
- 0.03 kg
- Compliances
- RoHS conform
- Certifications
- DIN EN 62208
- Features
- Halogen free; Shock resistant
- For ex-zone dust
- None
- For ex-zone gas
- None
- Functions
- For the prevention of condensation; Cable management; Pressure-compensating
- RAL-number
- 7035
- Special features
- PG With union nut Moisture escapes (approx. air inlet area: 1.5 cm²) Dust-proof and waterproof (sealing ring: nitrile rubber) Using two in the upper housing area, on opposite sides
- Used with
- Ci…; EW…; XVTL; CS-...; xEnergy; Accessory panel building; General switchboard accessory
- Accessory/spare part type
- Equalization fittings; Cable management
- Color
- Light gray (RAL 7035); Gray
- Type
- Accessory panel building General switchboard accessory
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -45 °C
- Cable entry type
- PG29
- Degree of protection
- IP54 otherwise; IP55 when installed vertically
- Material
- Plastic in accordance with UL 94 V-0; Plastic; High weather and UV resistance in accordance with UL 746C (f1)
- Material quality
- Polyamide (PA)
- Mounting position
- Vertical
- Nominal thread size inch/gas pipe thread
- Other
- Nominal thread size Metric/PG
- 29
- Opening diameter
- 37 mm
- Pitch thread
- 1.5 mm
- Surface protection
- Untreated
- Thread type
- PG
- Operating temperature - max
- 70 °C
- Operating temperature - min
- -45 °C
- Colour
- Grey
- Halogen free
- Yes
- Shock resistant
- Yes
- Glass-fibre reinforced
- No
- Operating temperature
- -45–70 °C
- Explosion-tested version
- No
- Pressure-compensating
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081995448
- SAP 1200562654
- Code 82906087
Product Documentation
