Eaton

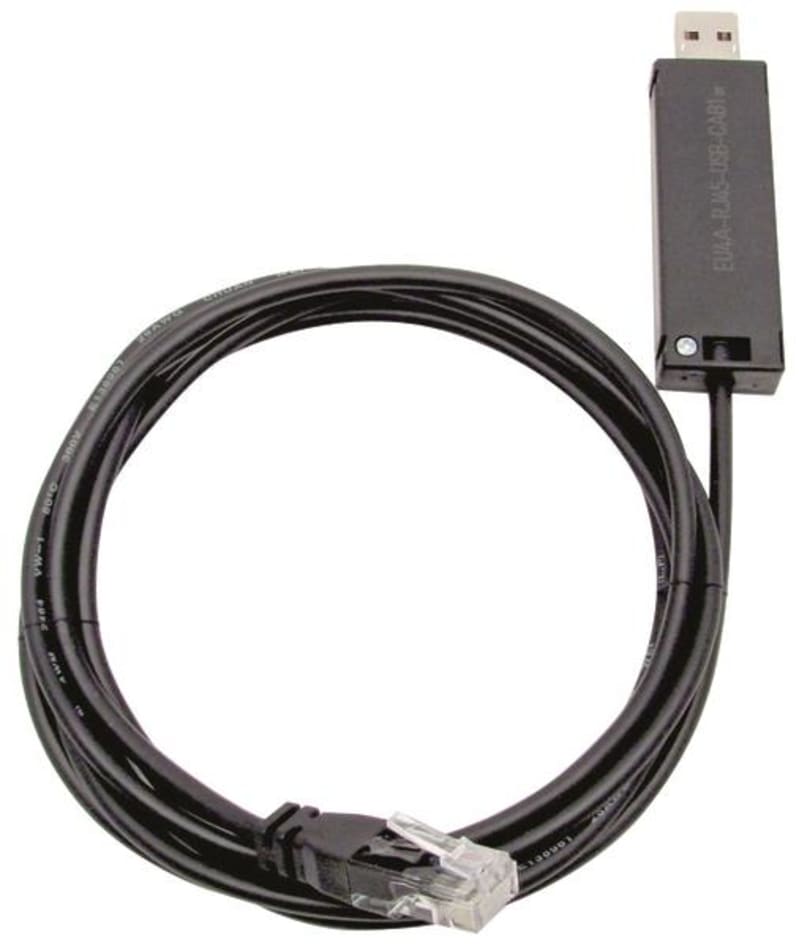

Programmingcable XC100/200 (115735)
Part number115735EAN / GTIN4015081154760HS code8544.49
Control & Automation
PLC Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 115735 EU4A-RJ45-USB-CAB1.
Technical Specifications
- Manufacturer part number (MPN)
- 115735
- EAN / GTIN
- 4015081154760
- Sales unit
- pcs
- Eaton catalogue number
- 115735
- Depth
- 220 mm
- Height
- 25 mm
- Width
- 160 mm
- Weight
- 0.06 kg
- Compliances
- CE
- Used with
- XC200; XC100; XC121
- Accessories
- Programming accessories
- Number of poles
- Five-pole
- Conductor category
- Class 2 = stranded
- Cable category
- Other
- Reaction-to-fire class (EN 13501-6)
- None
- Specification material outer sheath
- Other
- Stranding
- Other
- Stranding element
- No
- Ambient operating temperature - max
- 45 °C
- Ambient operating temperature - min
- -20 °C
- Nominal cross section (conductor)
- 0.5 mm²
- Number of cores
- 4
- Number of stranding elements
- 0
- NVP value
- 66.5 %
- Permitted temperature of outer cable (assembling/handling) - max
- 70 °C
- Permitted temperature of outer cable (assembling/handling) - min
- -25 °C
- Circuit integrity
- None
- Approved type of underground installation
- Other
- Material reinforcement
- Other
- Armouring/reinforcement
- None
- Cable geometry
- Round
- Conductor material
- Other
- Product category
- SmartWire-DT accessories
- Conductor diameter
- 1.5 mm
- AWG-size
- 20
- Cable length
- 1.5 m; 2 m
- Conductor surface
- Bare
- Core identification
- Colour
- Core insulation material
- Other
- Suitable for
- Output card PLC; Digital signals; Analogue signals; Input board PLC
- Euro class acidity (EN 13501-6)
- None
- Euro class flaming droplets/particles (EN 13501-6)
- None
- Flame retardant
- In accordance with EN 60332-1-2
- Electrical connection type (box-sided)
- RJ-plug
- Electrical connection type (field-sided)
- Connection plug board
- Outer sheath material
- Polyvinyl chloride (PVC)
- Protective sheath material
- Other
- Screen over stranding
- None
- Screen over stranding element
- None
- Smoke development class (EN 13501-6)
- None
- Functions
- PLC - PC; For transferring the user program to the PLC or for diagnosing SmartWire-DT networks
- Length
- 1.5 m
- Type of electrical connection, box-sided
- Connection plug board
- Type of electrical connection, field-sided
- Connection plug board
- Suitable for input board PLC
- Yes
- Suitable for output card PLC
- Yes
- Suitable for digital signals
- Yes
- Suitable for analogue signals
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 4015081154760
- SAP 1000252285
- Code 8215831
Product Documentation
Document preview: Programmingcable XC100/200 (115735) — Specification Data Sheet (OEM)
