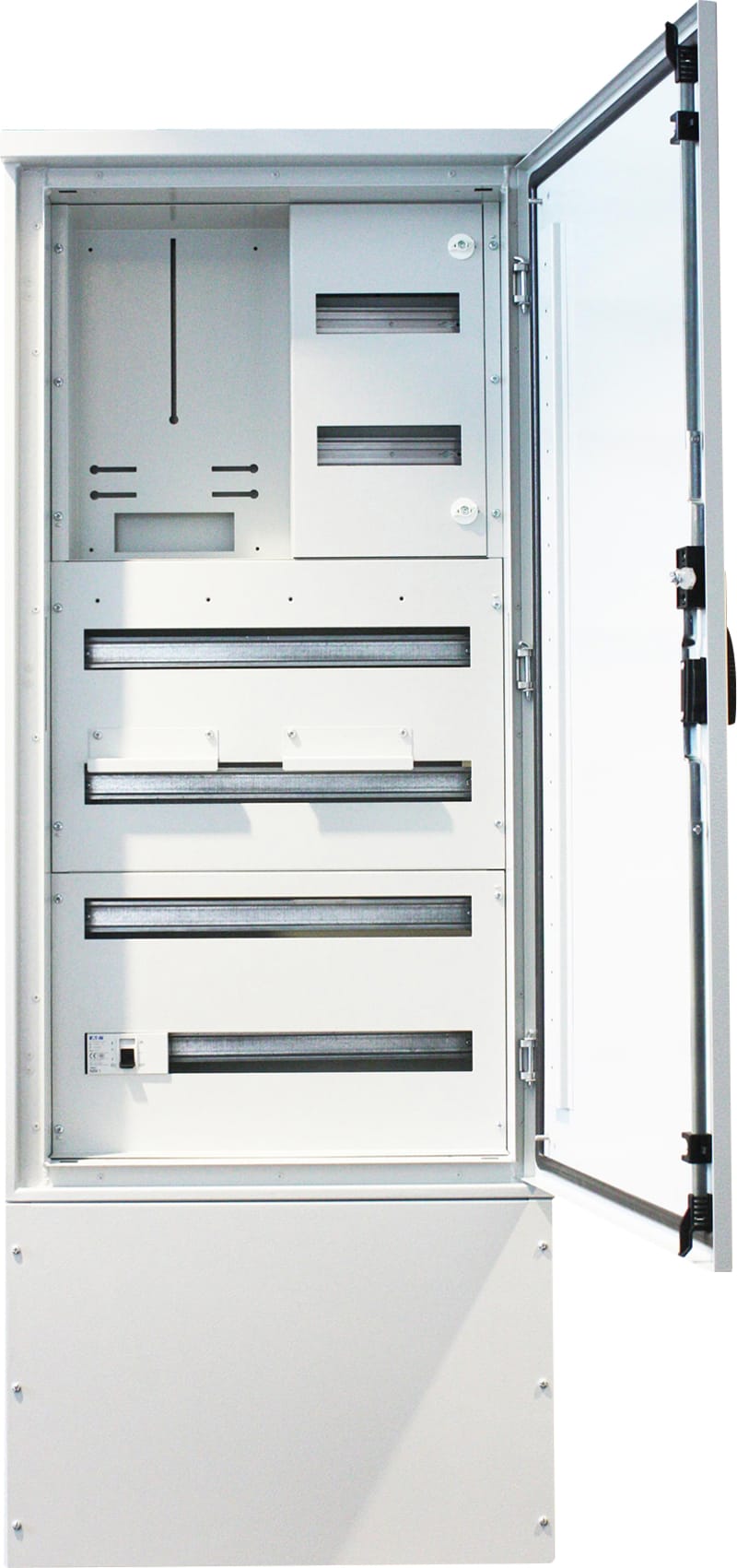

Distribution cabinet alu B600 without channel grey
Part number195384EAN / GTIN9010238092563HS code8538.90
Enclosures
Distribution Boards
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 195384 MDB-BI-12060/TWIN/DIN.
Technical Specifications
- Manufacturer part number (MPN)
- 195384
- EAN / GTIN
- 9010238092563
- Sales unit
- pcs
- Eaton catalogue number
- 195384
- Depth
- 265 mm
- Height
- 1200 mm
- Width
- 615 mm
- Weight
- 36 kg
- Compliances
- RoHS conform
- Certifications
- IEC/EN 62208
- Special features
- Empty cabinet. Supplied without circuit protection devices and without wiring
- Type
- TKS Norway Extended
- Voltage rating
- 230/400
- Features
- EMC-version; Earthing terminal block
- Fitted with
- Lock; Mounting plate
- Enclosure material
- Aluminum
- Built-in height
- 1200 mm
- Built-in width
- 615 mm
- Cable entry postion
- Cable plugs at bottom of enclosure
- Ambient operating temperature - max
- 40 °C
- Ambient operating temperature - min
- -40 °C
- Built-in depth
- 265 mm
- Closure type
- Other
- Cover/door model
- Closed
- Cover/door type
- Door; Door with 3-point-locking system and rotary-handle; Single
- RAL-number
- 7035
- Width in number of modular spacings
- 24
- Ambient operating temperature details
- -40 - +40
- Application
- Outdoor
- Color
- Gray
- Number of rows
- 6
- Frequency rating of contacts
- 50 Hz
- Module rack type
- DIN rail
- Degree of protection
- IP55; IK10 (impact resistance)
- Number of module space units per row
- (4x 24) + (2x 11)
- Protection class
- I (earthed)
- Protective shrouding material
- Metal
- Functions
- Basic device; Meter Cabinet; Sealable
- Material
- Aluminum, powder-coated
- Mounting method
- DIN-rail; Surface mounted (plaster)
- Internal depth
- 156 mm
- Number of openings for socket outlets
- 0
- Colour
- Grey
- UV resistant
- No
- With mounting plate
- Yes
- Type of covering
- Door
- EMC-version
- Yes
- Extension possible
- No
- Inner depth
- 156 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Aluminium
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- Yes
- Cover model
- Closed
- Earthing terminal block
- Yes
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 9010238092563
- SAP 1200218345
- Code 82141599
Product Documentation
Document preview: Distribution cabinet alu B600 u/channel grey (195384) — Specification Data Sheet (OEM)
