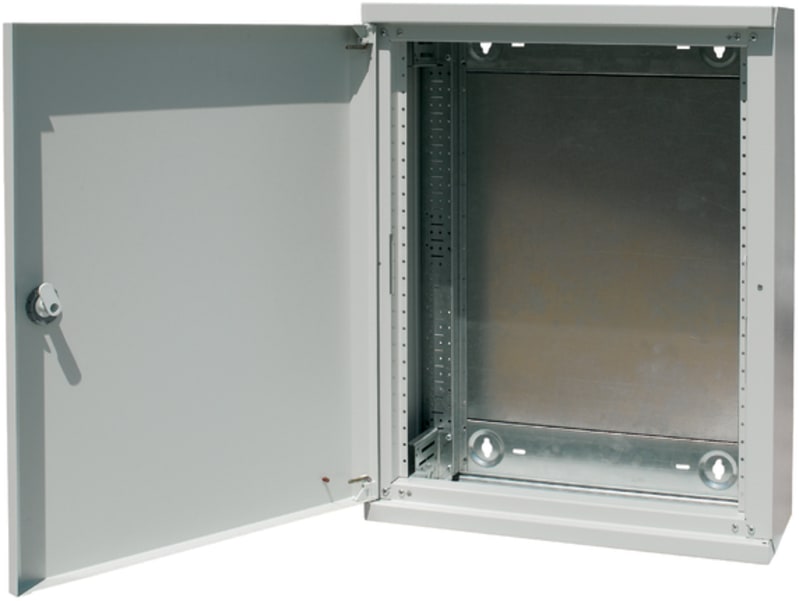

Panel board B=1000 mm H=1560 mm
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Panel board B=1000 mm H=1560 mm (part number BP-O-1000/15-MSW) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Height: 1560 mm; Width: 1000 mm; Mounting method: Surface mounted; Colour: Grey; UV resistant: No.
Technical Specifications
- Manufacturer part number (MPN)
- BP-O-1000/15-MSW
- EAN / GTIN
- 4015081455096
- Sales unit
- pcs
- Height
- 1560 mm
- Width
- 1000 mm
- Mounting method
- Surface mounted
- Colour
- Grey
- UV resistant
- No
- Depth
- 262.5 mm
- RAL-number
- 7035
- With mounting plate
- No
- Built-in depth
- 185 mm
- Number of rows
- 11
- Built-in height
- 1575 mm
- Type of covering
- Door
- Built-in width
- 1015 mm
- EMC-version
- Yes
- Extension possible
- Yes
- Inner depth
- 257.5 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Width in number of modular spacings
- 46
- Type of door
- Double
- Degree of protection (IP)
- IP30
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081455096
- SAP 1200282397
- Code 82252779
