Auxiliary contact, snap-on, 1NO/1NC

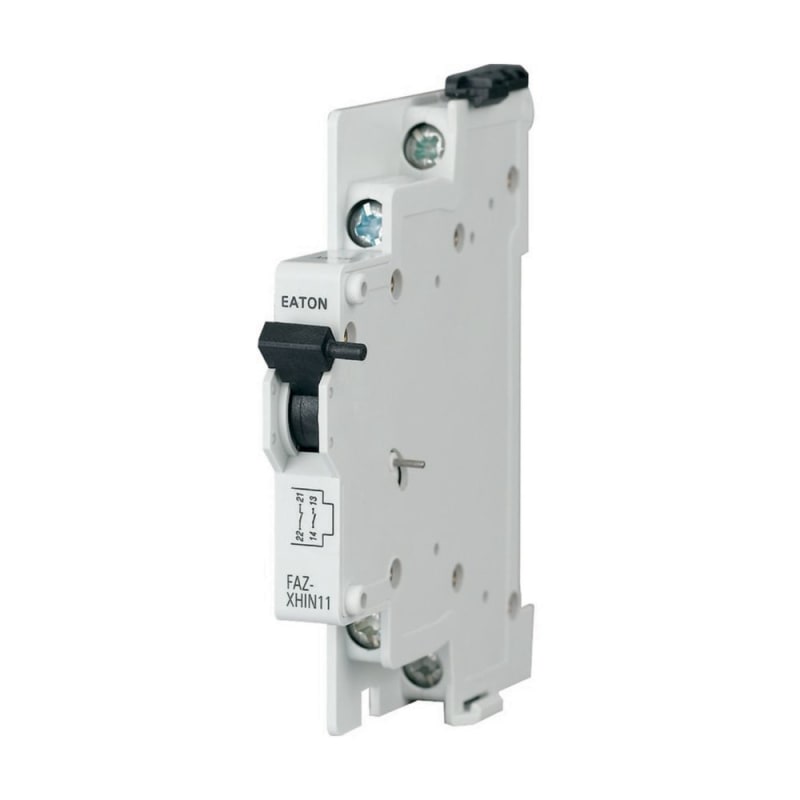

Eaton FAZ-XHIN11 Auxiliary Contact 1NO/1NC.

Manufacturer part number (MPN)

FAZ-XHIN11

EAN / GTIN

4015082860547

Sales unit

pcs

Package quantity

10 pcs

Eaton catalogue number

286054

Depth

80 mm

Height

75.5 mm

Width

8.8 mm

Weight

0.046 kg

Compliances

RoHS conform

Certifications

UL (File No. E177451); North America (UL listed, certified by UL for use in Canada); IEC/EN 60898; CSA (Class No. 3215-30); UL 1077; CE marking; UL (Category Control Number QVNU2, QVNU9); IEC/EN 60947-2; CSA-C22.2 No. 235; EN45545-2; IEC 61373

Catalog Notes

&1NC

Used with

Accessory; Accessory for miniature circuit breaker

Voltage rating

250 V AC

Amperage Rating

6 A

Accessory/spare part type

Auxiliary contacts

Degree of protection

UL/CSA Type: -; IP40; IP20 (IEC)

Frame

Standard front dimension: 45 mm

Frequency rating

50 Hz / 60 Hz

Rated impulse withstand voltage (Uimp)

2.5 kV

Mounting method

Max. 2 x on MCB

Additional equipment required

Auxiliary switch

Admissible back-up fuse - max

6 A gL

Terminal protection

Protection against electric shock to IEC 536

Terminal type

Lift terminals

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-5 °C

Assembly width

0.5

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

6 A

Enclosure width

80 mm

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Number of poles at main contact unit - max

2

Number of switches (fault signal)

0

Rated conditional short-circuit current (Iq) with 6 a back-up fuse

1 kA

Rated insulation voltage (Ui)

250 VAC

Voltage type

AC

Functions

Auxiliary switch

Contact function

1 NO + 1 NC

Device fitting

Universal

Type

Accessory Accessory for miniature circuit breaker

Mounting width

8.8 mm (0.5 space units)

Rated operational voltage (Ue) - max

230 V

Rated switch current

3 A

Voltage rating per contact - min

5 VDC

Rated operational current

0.5 A (110 V DC-12); 2 A (250 V AC-15); 3 A (250 V AC-13)

Terminal capacity (cable)

0.5 mm² - 2.5 mm²

Terminal capacity (solid wire)

0.5 mm² - 2.5 mm²

Rated voltage

230 V

Installed at the factory

No

Width in number of modular spacings

0.5

Additional equipment

Auxiliary switch

Voltage type for actuating

AC

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

2

Country of origin

Serbia

HS Code

8536.50
