Eaton NZM2-XTVDVR Red Lockable Door-Coupling Rotary Handle Emergency Stop

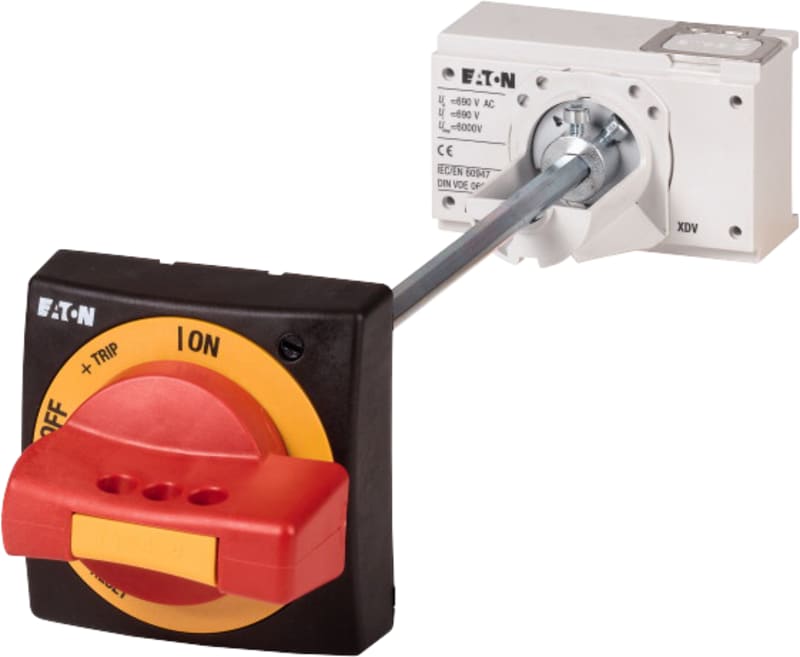

Eaton NZM2-XTVDVR is a red and yellow door-coupling rotary handle for NZM2, PN2 and N(S)2 series circuit breakers, allowing the switch to be operated through a closed control panel door and used for emergency switching off. It is supplied complete with rotary drive and coupling parts; an extension shaft is ordered separately. Enclosure ingress rating is IP66 and NEMA 4X/12, and the handle can be secured with up to three padlocks with the door interlock defeatable only via tool from outside. It is applied on power circuit breakers and switch disconnectors requiring an emergency-stop external actuator.

Manufacturer part number (MPN)

NZM2-XTVDVR

EAN / GTIN

4015082601805

Sales unit

pcs

Eaton catalogue number

260180

Depth

100 mm

Height

190 mm

Width

110 mm

Weight

0.822 kg

Compliances

UL/CSA; IEC; RoHS conform

Certifications

CE marking; CSA (Class No. 1437-01); UL489; UL (File No. E140305); UL listed; CSA-C22.2 No. 5-09; CSA (File No. 22086); UL (Category Control Number DIHS); CSA certified; IEC60947

Features

Red-yellow for emergency switching off; Lockable

Fitted with

Padlock

Frame

NZM2

Special features

Door coupling rotary handle for operating the switch through a closed control panel door External warning plate/designation label can be clipped on. Complete including rotary drive and coupling parts Extension shaft additionally required.

Suitable for

Emergency stop; Switch disconnector; Power circuit breaker

Type

Accessory Door coupling rotary handle

Used with

NZM2(-4), PN2(-4), N(S)2(-4)

Color

Red

Cover/door type

Door interlock not defeated in the locked OFF position.; Door can be opened in OFF; Door interlock can be modified in the unlocked ON position; Door interlock can be modified such that it can be defeated from the outside using a screwdriver

Degree of protection / NEMA enclosure type

IP66; 4X. 12

Lock number

Double lockable

Locking facility

With door interlock; Lockable on the handle on the switch using up to 3 padlocks

Colour

Black

Lockable

Yes

Padlock locking

Yes

Suitable for emergency stop

Yes

With extension shaft

No

With restart blockage

No

Suitable for power circuit breaker

Yes

Suitable for switch disconnector

Yes

Degree of protection (NEMA)

4X, 12

With key lock

No

Country of origin

Germany

HS Code

8538.90

• EAN 4015082601805
• SAP 1000081770
• Code 8851185
