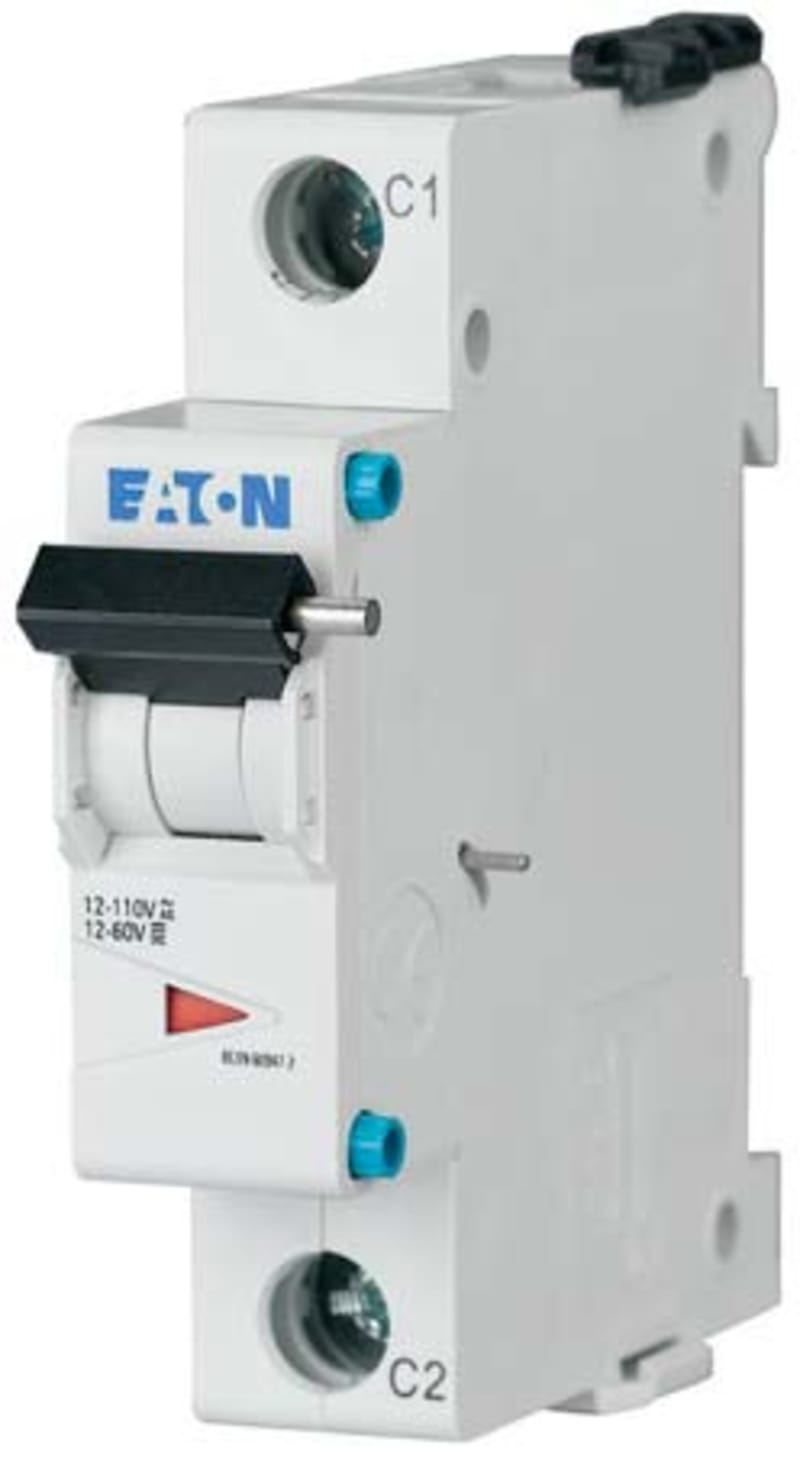

Eaton 278519 FAZ Shunt Trip Release 110-415 V AC 17.5 mm

The Eaton 278519 is a shunt-trip release accessory for FAZ series miniature circuit breakers, allowing remote electrical tripping of the breaker on receipt of a control signal. It operates over a wide voltage range of 110-415 V AC with 1 NO + 1 NC auxiliary contacts and occupies a single 17.5 mm modular width on 35 mm DIN rail. Typical applications include fire alarm interlocks, emergency-stop circuits and remote isolation of distribution circuits in industrial and building installations.

Manufacturer part number (MPN)

278519

EAN / GTIN

4015082785192

Sales unit

pcs

Package quantity

60 pcs

Eaton catalogue number

278519

Depth

80 mm

Height

75.5 mm

Width

17.7 mm

Weight

0.087 kg

Compliances

RoHS conform

Certifications

EN45545-2; IEC 61373

Catalog Notes

0-415VAC)

Used with

Accessory for miniature circuit breaker; Accessory

Accessory/spare part type

Shunt release

Degree of protection

IP40

Frame

Standard front dimension: 45 mm

Frequency rating

50 Hz / 60 Hz

Mounting method

Top-hat rail IEC/EN 60715

Additional equipment required

Shunt release (for power circuit breaker)

Terminal protection

Protection against electric shock to IEC 536

Terminal type

Twin-purpose terminals

Voltage range

110 V AC - 415 V AC

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-5 °C

Assembly width

1

Enclosure width

80 mm

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Number of poles at main contact unit - max

1

Number of switches (fault signal)

0

Voltage type

AC

Functions

Shunt release (for power circuit breaker)

Device fitting

Miniature circuit breaker (MCB)

Type

Accessory Accessory for miniature circuit breaker

Mounting width

17.5 mm (1 space unit)

Rated operational voltage (Ue) - max

110 V

Terminal capacity (cable)

1 mm² - 2.5 mm²

Terminal capacity (solid wire)

1 mm² - 2.5 mm²

Rated voltage

110 V

Installed at the factory

No

Width in number of modular spacings

1

Additional equipment

Shunt release (for power circuit breaker)

Voltage type for actuating

AC

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

1

Country of origin

Romania

HS Code

8536.50
