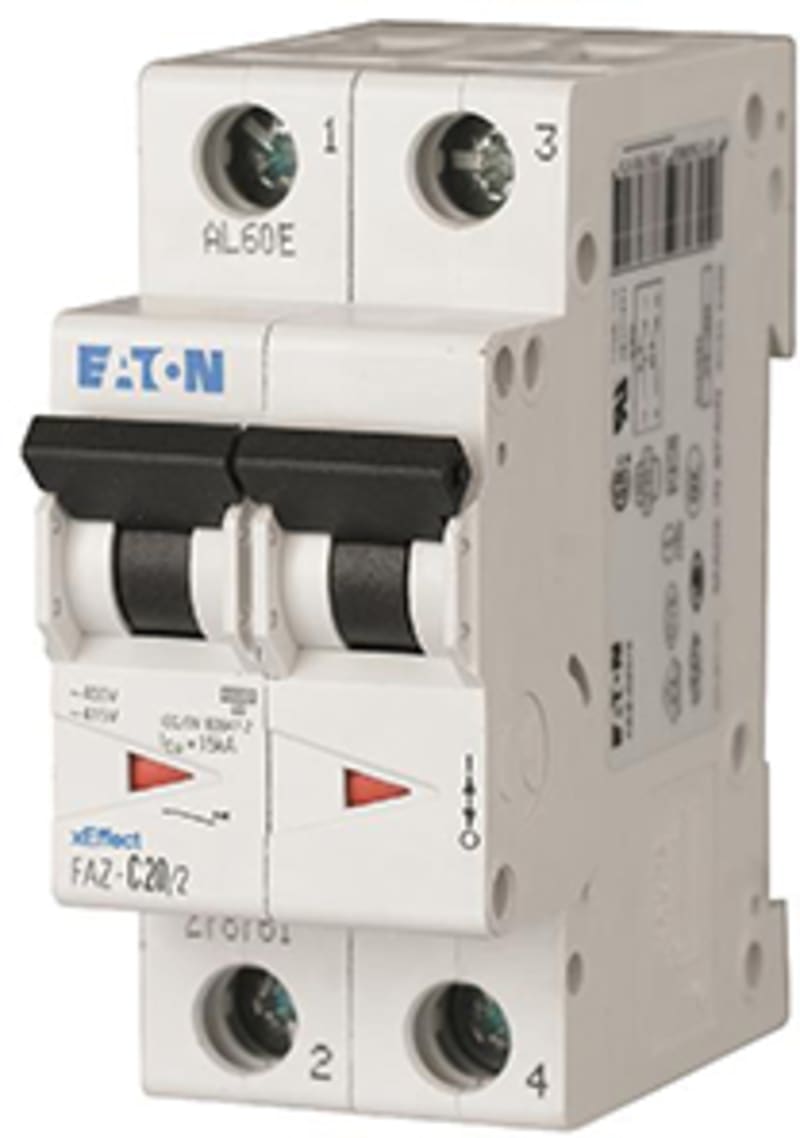

Eaton FAZ-D30/2 Miniature Circuit Breaker — 2P, Type D, 30 A, 15 kA

Eaton FAZ-D30/2 miniature circuit breaker (MCB) from the xEffect FAZ range. 2-pole, rated current In = 30 A, Type D tripping characteristic. Rated ultimate short-circuit breaking capacity Icu = 15 kA to IEC/EN 60947-2; rated operational voltage Ue 230/400 V AC. DIN-rail (35 mm) modular device for overload and short-circuit protection of cables and equipment. Conforms to IEC/EN 60947-2. Eaton type FAZ-D30/2, EAN 4015081639700, Eaton/SAP material 1200607200, catalogue code 82998505.

Manufacturer

Eaton

Product family

xEffect FAZ

Type designation

FAZ-D30/2

Manufacturer part number (MPN)

FAZ-D30/2

EAN / GTIN

4015081639700

Eaton / SAP material no.

1200607200

Poles

2P

Tripping characteristic

Type D

Rated current In

30 A

Rated ultimate breaking capacity Icu

15 kA

Rated operational voltage Ue

230/400 V AC

Mounting

DIN rail (35 mm)

Standard

IEC/EN 60947-2

HS code

8536.20

Sales unit

pcs

Eaton catalogue number

167492

Depth

80 mm

Height

75.5 mm

Width

36 mm

Weight

0.237 kg

Compliances

RoHS conform

Certifications

IEC 60947-2; CSA Std. C22.2 No.235; UL 1077; EN45545-2; IEC 61373

Catalog Notes

Magnetic range for higher startup inrush levels that are usually seen in motors and transformers, and other high inductive systems.

Current limiting class

3

Features

Additional equipment possible

Special features

Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity

Used with

FAZ; Miniature circuit breaker

Amperage Rating

30 A

Application

Switchgear for industrial and advanced commercial applications xEffect - Switchgear for industrial and advanced commercial applications

Number of poles

Two-pole

Number of poles (protected)

2

Number of poles (total)

2

Release characteristic

D

Type

FAZ Miniature circuit breaker

Ambient operating temperature - max

75 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

5.4 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

0 W

Rated operational current for specified heat dissipation (In)

30 A

Static heat dissipation, non-current-dependent

0 W

Frequency rating - max

60 Hz

Frequency rating - min

50 Hz

Overvoltage category

III

Pollution degree

2

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

415 V

Rated short-circuit breaking capacity (IEC/EN 60898-1) - Icn at 230 V

10 kA

Rated short-circuit breaking capacity (IEC/EN 60898-1)- Icn at 400 V

10 kA

Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 230 V

15 kA

Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 400 V

15 kA

Rated switching capacity (IEC/EN 60947-2)

15 kA

Voltage type

AC

Built-in depth

70.5 mm

Connectable conductor cross section (multi-wired) - max

25 mm²

Connectable conductor cross section (multi-wired) - min

1 mm²

Connectable conductor cross section (solid-core) - max

25 mm²

Connectable conductor cross section (solid-core) - min

1 mm²

Degree of protection

IP20

Width in number of modular spacings

2

Document Name

Description Action

Standard

IEC/EN 60947-2

HS Code

8536.20

• EAN 4015081639700
• SAP 1200607200
• Code 82998505
