Eaton FAZ-D20/1N Miniature Circuit Breaker — 1P+N, Type D, 20 A, 15 kA
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton FAZ-D20/1N miniature circuit breaker (MCB) from the xEffect FAZ range. 1-pole + neutral (1+N per module), rated current In = 20 A, Type D tripping characteristic. Rated ultimate short-circuit breaking capacity Icu = 15 kA to IEC/EN 60947-2; rated operational voltage Ue 230/400 V AC. DIN-rail (35 mm) modular device for overload and short-circuit protection of cables and equipment. Conforms to IEC/EN 60947-2. Eaton type FAZ-D20/1N, EAN 4015082786984, Eaton/SAP material 1200236893, catalogue code 82233316.
Technical Specifications
- Manufacturer
- Eaton
- Product family
- xEffect FAZ
- Type designation
- FAZ-D20/1N
- Manufacturer part number (MPN)
- FAZ-D20/1N
- EAN / GTIN
- 4015082786984
- Eaton / SAP material no.
- 1200236893
- Poles
- 1P+N
- Tripping characteristic
- Type D
- Rated current In
- 20 A
- Rated ultimate breaking capacity Icu
- 15 kA
- Rated operational voltage Ue
- 230/400 V AC
- Mounting
- DIN rail (35 mm)
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
- Eaton catalogue number
- 278698
- Depth
- 80 mm
- Height
- 75.5 mm
- Width
- 36 mm
- Weight
- 0.199 kg
- Compliances
- RoHS conform
- Certifications
- EN45545-2; IEC 61373
- Current limiting class
- 3
- Features
- Additional equipment possible; Concurrently switching N-neutral
- Special features
- Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
- Used with
- Miniature circuit breaker; FAZ
- Amperage Rating
- 20 A
- Application
- Switchgear for industrial and advanced commercial applications xEffect - Switchgear for industrial and advanced commercial applications
- Number of poles
- Single-pole + N
- Number of poles (protected)
- 1
- Number of poles (total)
- 2
- Release characteristic
- D
- Type
- FAZ Miniature circuit breaker
- Ambient operating temperature - max
- 75 °C
- Ambient operating temperature - min
- -25 °C
- Equipment heat dissipation, current-dependent
- 2.2 W
- Heat dissipation capacity
- 0 W
- Heat dissipation per pole, current-dependent
- 0 W
- Rated operational current for specified heat dissipation (In)
- 20 A
- Static heat dissipation, non-current-dependent
- 0 W
- Frequency rating - max
- 60 Hz
- Frequency rating - min
- 50 Hz
- Overvoltage category
- III
- Pollution degree
- 2
- Rated impulse withstand voltage (Uimp)
- 4 kV
- Rated insulation voltage (Ui)
- 440 V
- Rated operational voltage (Ue) - max
- 230 V
- Rated short-circuit breaking capacity (IEC/EN 60898-1) - Icn at 230 V
- 10 kA
- Rated short-circuit breaking capacity (IEC/EN 60898-1)- Icn at 400 V
- 10 kA
- Rated switching capacity (IEC/EN 60947-2)
- 15 kA
- Voltage type
- AC
- Built-in depth
- 70.5 mm
- Connectable conductor cross section (multi-wired) - max
- 25 mm²
- Connectable conductor cross section (multi-wired) - min
- 1 mm²
- Connectable conductor cross section (solid-core) - max
- 25 mm²
- Connectable conductor cross section (solid-core) - min
- 1 mm²
- Degree of protection
- IP20
- Width in number of modular spacings
- 1.5
- Document Name
- Description Action
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 4015082786984
- SAP 1200236893
- Code 82233316
Product Documentation
More from Eaton
Eaton

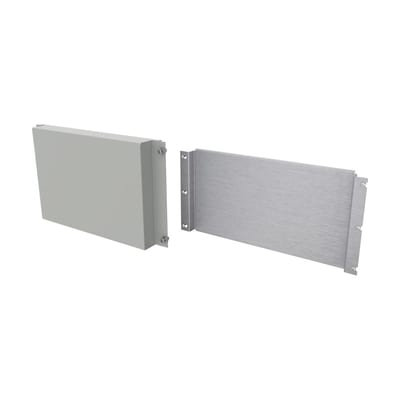

Mounting Kit sealed H300 B600 xE Basic
2457605
Eaton

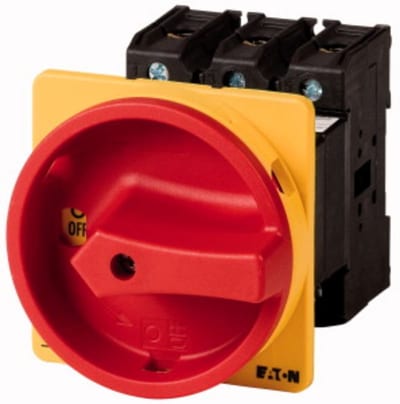

Safety Switch 3P SPLIT MOUNTING (P3-100/V/Svb)
P3-100/V/SVB
Eaton

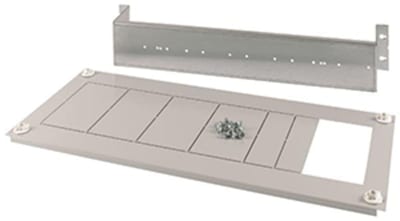

NH switch unit 160A (BPZ-XNH00X-6/1-800-MV)
