Panel board m/DIN B=600mm H=1560mm H
Pricing
Request a quote
We reply within 24 hours
Overview

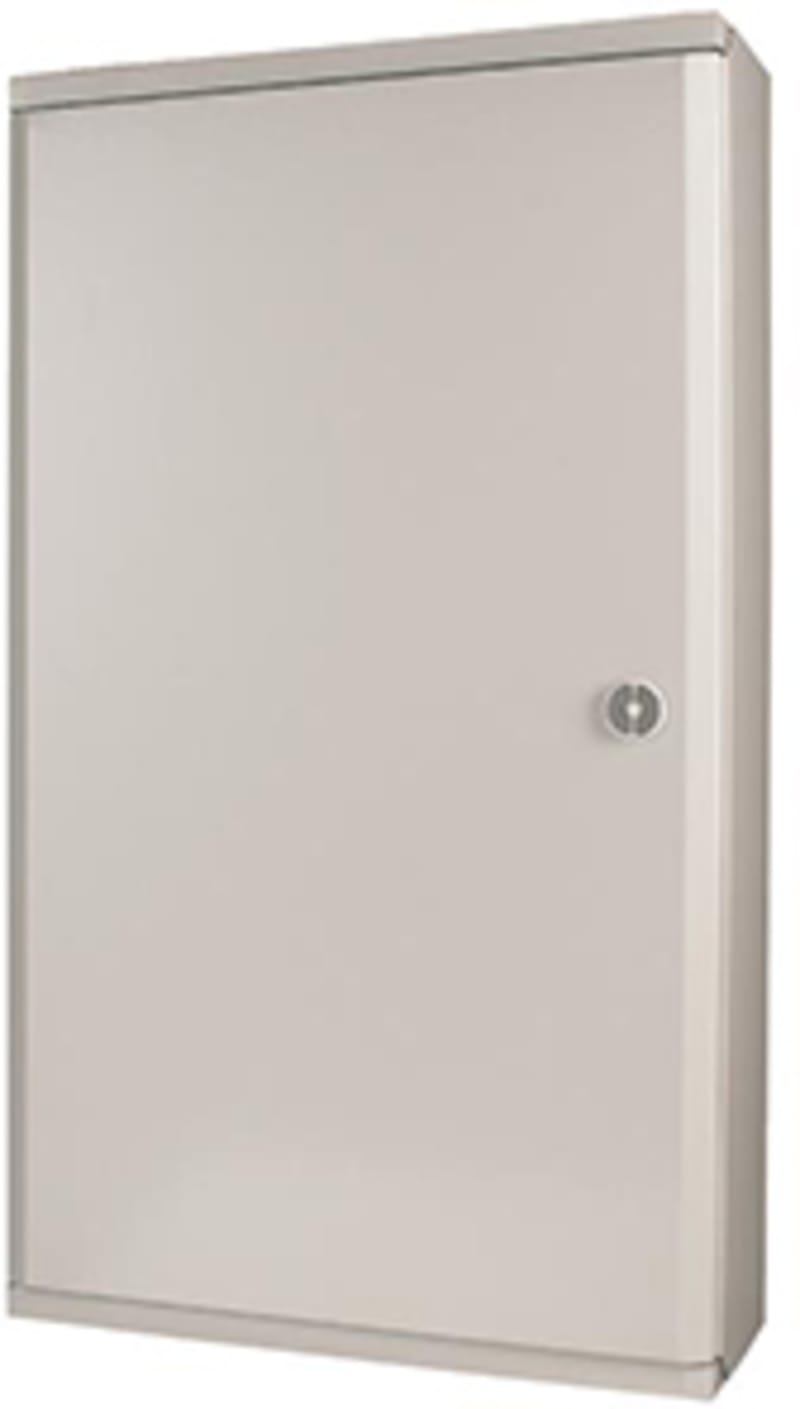

Eaton Panel board m/DIN B=600mm H=1560mm H (part number BP-O-600/15-C-W) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Eaton catalogue number: 105537; Depth: 262 mm; Height: 1560 mm; Width: 600 mm; Weight: 45.5 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BP-O-600/15-C-W
- EAN / GTIN
- 4015081053148
- Sales unit
- pcs
- Eaton catalogue number
- 105537
- Depth
- 262 mm
- Height
- 1560 mm
- Width
- 600 mm
- Weight
- 45.5 kg
- Compliances
- RoHS conform
- Features
- EMC-version
- Functions
- Extension possible; Basic device; Sealable
- RAL-number
- 9016
- Special features
- With DIN-rail Front plate with 45mm cut-out
- Application
- Indoor (installation site)
- Color
- Traffic white (RAL 9016); White
- Type
- Basic device
- Built-in height
- 1575 mm
- Built-in width
- 615 mm
- Closure type
- Other
- Cover/door model
- Closed
- Cover/door type
- Door; Three-point turn-lock; Single
- Enclosure material
- Steel
- Internal depth
- 257.5 mm
- Material
- Sheet steel
- Mounting method
- Surface mounting; Surface mounted (plaster); DIN-rail
- Number of rows
- 9
- Surface finishing
- With powder coating
- Width in number of modular spacings
- 24
- Built-in depth
- 280 mm
- Degree of protection
- IP30
- Colour
- White
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 257.5 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081053148
- SAP 1000754197
- Code 8505095
