Eaton
Overvoltagesplugg 1-pole 260VAC 30KA
Part numberSPCT2-NPE60EAN / GTIN4015081641079HS code8536.50
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

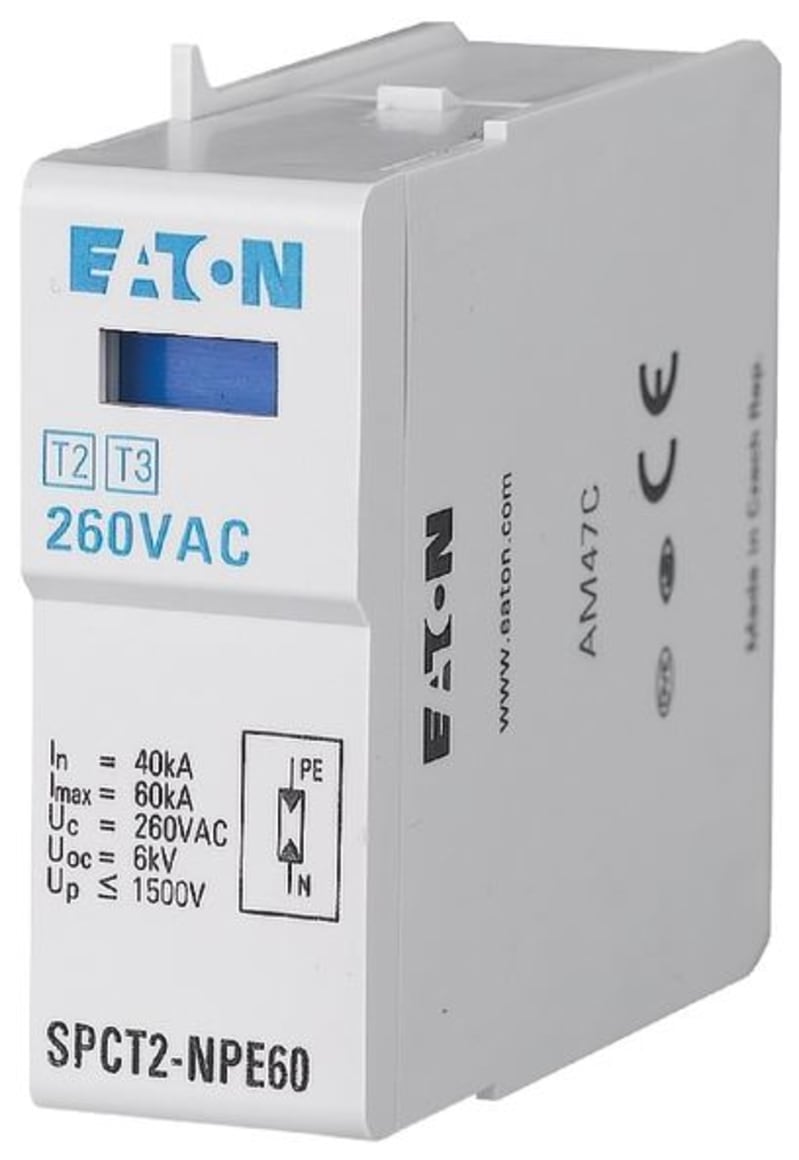

Eaton SPCT2-NPE60 Overspenningsplugg 1-pole 260VAC 30kA.
Technical Specifications
- Manufacturer part number (MPN)
- SPCT2-NPE60
- EAN / GTIN
- 4015081641079
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Eaton catalogue number
- 167617
- Depth
- 47 mm
- Height
- 54 mm
- Width
- 17.5 mm
- Weight
- 0.03 kg
- Compliances
- RoHS conform
- Certifications
- CE
- Features
- Category type 2
- System configuration type
- TN; Other
- Application
- Open areas Residential buildings Utility buildings
- Type
- Surge arrester
- Continuous voltage at AC - max
- 260 V
- Discharge surge current (8/20) - max
- 60 kA
- Nominal discharge surge current (8/20)
- 30 kA
- Nominal voltage at AC
- 260 V
- Signalling at the device
- Optic
- Voltage protection level
- 1 KV
- Degree of protection
- IP20
- Frame
- 1 modular spacing
- Mounting method
- On basic element
- Number of conductors without earthing
- 0
- Number of poles
- 1
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- No
- System configuration TT
- No
- System configuration other
- Yes
- Max. discharge surge current (8/20)
- 60 kA
- Short-circuit-proof
- No
- Nominal voltage AC
- 260 V
- Max. continuous voltage AC
- 260 V
- Max. overcurrent protection device, series connection (fuse)
- 125 A
- Integrated short-circuit protection
- No
- Integrated backup fuse
- No
- Leakage-current free
- No
- Construction size
- 1 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- With remote signalling contact
- No
- Category type 2
- Yes
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081641079
- SAP 1000336156
- Code 8367547
Product Documentation
Document preview: OVERVOLTAGESPLUGG 1-POLET 260VAC 30KA (SPCT2-NPE60) — Specification Data Sheet (OEM)
