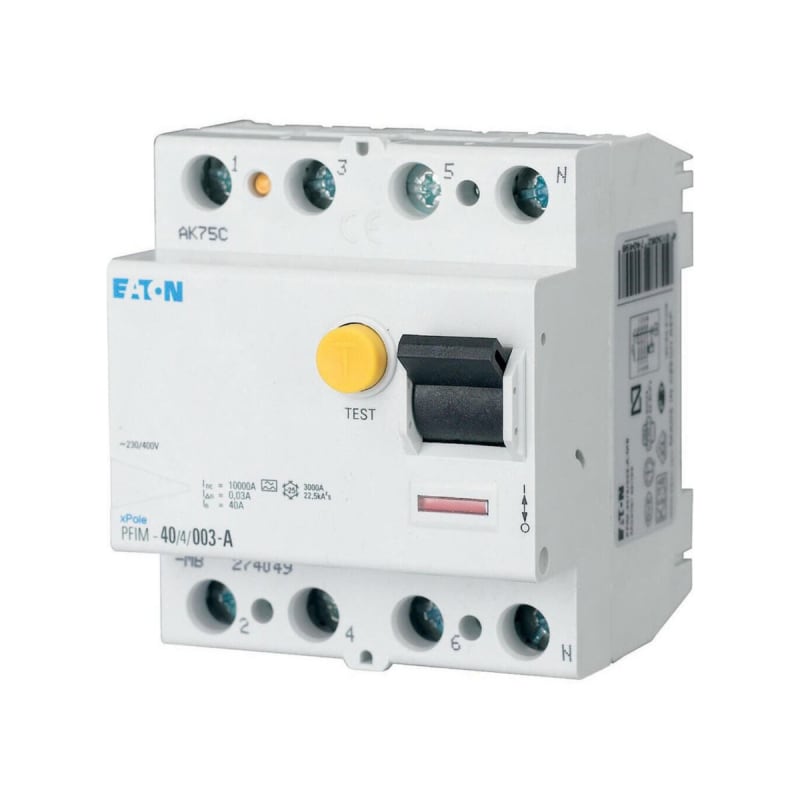

Residual current circuit breaker 100A 4P 500MAA

Eaton 102872 PFIM-100/4/05-A.

Manufacturer part number (MPN)

102872

EAN / GTIN

4015081027170

HS code

8536.90

Sales unit

pcs

Package quantity

30 pcs

Eaton catalogue number

102872

Depth

76 mm

Height

80 mm

Width

70 mm

Weight

0.356 kg

Compliances

RoHS conform

Certifications

IEC/EN 61008

Accessories required

Z-HK 248432

Features

Additional equipment possible; Residual current circuit breaker

Fitted with

Interlocking device

Special features

Maximum operating temperature is 60 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.2% for every 1 °C Tripping signal contact for subsequent installation Z-NHK 248434

Used with

Residual current circuit breakers; Type A; PFIM; KLV-TC-4 276241 (Compact enclosure); Z-FW/LP 248296 (Remote control and automatic switching device); Z-RC/AK-4MU 101062 (sealing cover set)

Amperage Rating

100 A

Application

Residual current circuit breaker for residential and commercial applications xPole - Switchgear for residential and commercial applications

Fault current rating

500 mA

Impulse withstand current

Partly surge-proof 250 A

Number of poles

Four-pole

Rated short-circuit strength

10 kA

Sensitivity type

Pulse-current sensitive

Tripping time

Non-delayed

Type

PFIM Residual current circuit breakers Type A

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

18.8 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

0 W

Rated operational current for specified heat dissipation (In)

100 A

Static heat dissipation, non-current-dependent

0 W

Admissible back-up fuse overload - max

63 A gG/gL

Frequency rating

50 Hz

Leakage current type

A

Lifespan, electrical

4000 operations

Pollution degree

2

Rated fault current - max

0.5 A

Rated fault current - min

0.5 A

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

400 V

Rated residual making and breaking capacity

1000 A

Rated short-time withstand current (Icw)

10 kA

Short-circuit rating

100 A (max. admissible back-up fuse)

Surge current capacity

0.25 kA

Test circuit range

196 V AC - 456 V AC

Voltage rating

230 V AC / 400 V AC

Built-in depth

70.5 mm

Built-in width (number of units)

70 mm (4 SU)

Busbar material thickness

0.8 mm - 2 mm

Climatic proofing

25-55 °C / 90-95% relative humidity according to IEC 60068-2

Connectable conductor cross section (multi-wired) - max

16 mm²

Connectable conductor cross section (multi-wired) - min

1.5 mm²

Connectable conductor cross section (solid-core) - max

35 mm²

Connectable conductor cross section (solid-core) - min

1.5 mm²

Degree of protection

IP20, IP40 with suitable enclosure; IP20

Frame

45 mm

Lifespan, mechanical

20000 operations

Mounting Method

Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715; DIN rail

Permitted storage and transport temperature - max

60 °C

Permitted storage and transport temperature - min

-35 °C

Terminal capacity (solid wire)

1.5 mm² - 35 mm²

Terminal capacity (stranded cable)

16 mm² (2x)

Terminal protection

Finger and hand touch safe, DGUV VS3, EN 50274

Terminals (top and bottom)

Open mouthed/lift terminals

Width in number of modular spacings

4

HS Code

8536.90
