Eaton

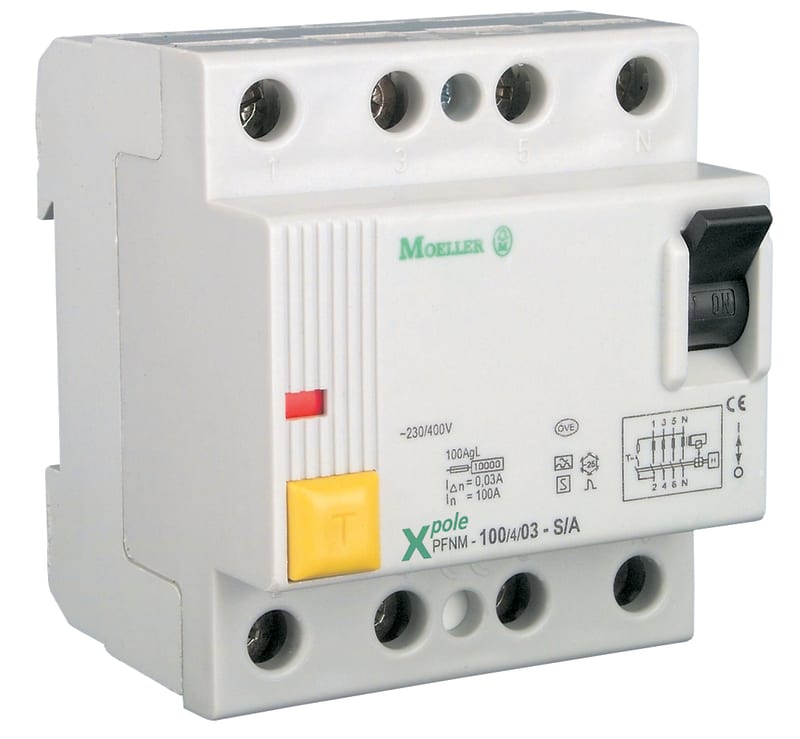

Residual current circuit breaker 100A 4P 300MAA (PFNM-100/4/03-(A))
Part numberPFNM-100/4/03-(A)EAN / GTIN4015082358976HS code8536.90
Electrical Components
RCDs & RCBOs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton PFNM-100/4/03-(A) Residual current circuit breaker, 100A, 4-pole, 300mA.
Technical Specifications
- Manufacturer part number (MPN)
- PFNM-100/4/03-(A)
- EAN / GTIN
- 4015082358976
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Rated current
- 100 A
- Number of poles
- 4
- Mounting method
- DIN rail
- Built-in depth
- 70.5 mm
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 440 V
- Rated fault current
- 0.3 A
- Leakage current type
- A
- Selective protection
- No
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 0.25 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- Short-time delayed tripping
- No
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1.5–35 mm²
- Connectable conductor cross section multi-wired
- 1.5–16 mm²
- With interlocking device
- Yes
- Ambient temperature during operating
- -25–40 °C
- Additional equipment possible
- Yes
- Rated impulse withstand voltage Uimp
- 4 kV
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015082358976
- SAP 1000077253
- Code 8568162
Product Documentation
Document preview: Residual current circuit breaker 100A 4P 300MAA (PFNM-100/4/03-(A)) — Specification sheet
