Eaton

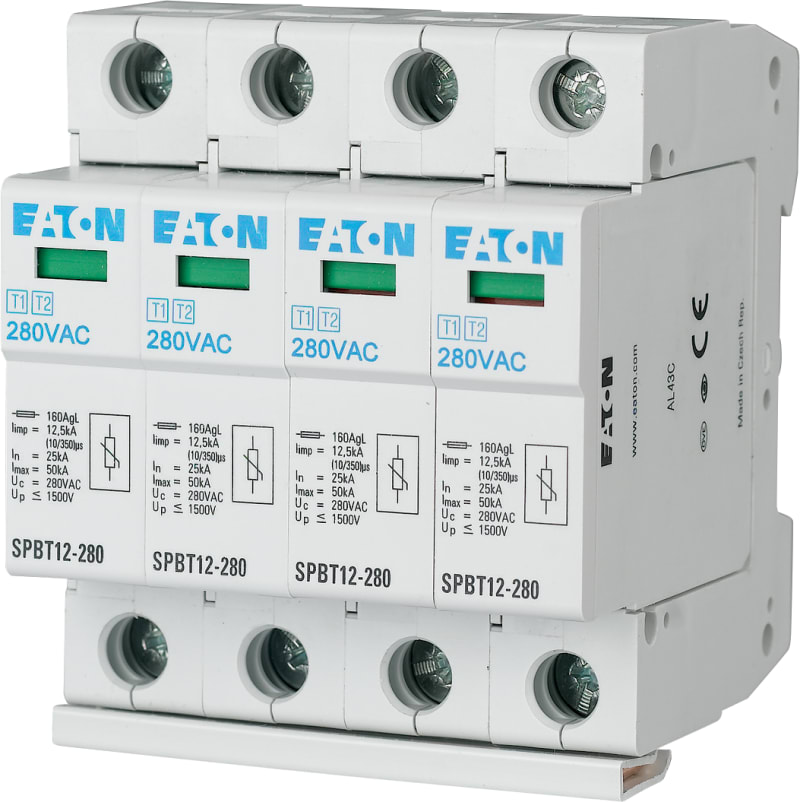

Overvoltagesplugg 280VAC 12,5KA
Part numberSPBT12-280EAN / GTIN4015081638413HS code8535.40
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton SPBT12-280 Overspenningsplugg 280VAC 12,5kA.
Technical Specifications
- Manufacturer part number (MPN)
- SPBT12-280
- EAN / GTIN
- 4015081638413
- Sales unit
- pcs
- Eaton catalogue number
- 167341
- Depth
- 80 mm
- Height
- 65 mm
- Width
- 17.5 mm
- Weight
- 0.231 kg
- Compliances
- RoHS conform
- System configuration type
- TN; Other
- Test class
- Type 1 + 2
- Application
- Open areas Residential buildings Utility buildings
- Number of poles
- Single-pole
- Type
- Surge arrester
- Continuous voltage at AC - max
- 280 V
- Lightning impulse current (10/350 µs)
- 12.5 kA
- Nominal voltage at AC
- 280 V
- Signalling at the device
- Optic
- Specific energy (W/R)
- 39.1 kJ/Ohm
- Voltage protection level
- 1.5 KV
- Voltage protection level (L-PE)
- 1.5 KV
- Conductor cross section (flexible, fine-strand) - max
- 35 mm²
- Conductor cross section (solid, solid-strand) - max
- 25 mm²
- Degree of protection
- IP20
- Frame
- 1 modular spacing
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Exhausting
- No
- Remote signalling
- No
- Max. continuous voltage AC
- 280 V
- Nominal voltage AC
- 280 V
- Integrated backup fuse
- No
- Max. conductor cross section solid (solid, stranded)
- 25 mm²
- Max. conductor cross section flexible (fine-strand)
- 35 mm²
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- Yes
- System configuration TN-C
- No
- System configuration TT
- No
- System configuration other
- Yes
- Voltage protection level L-PE
- 1.5 kV
- Max. overcurrent protection device, series connection (fuse)
- 160 A
- Voltage switching spark gap technology
- No
- Overcurrent protected voltage tapping
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8535.40
Cross References
- EAN 4015081638413
- SAP 1000336148
- Code 81085263
Product Documentation
Document preview: OVERVOLTAGESPLUGG 280VAC 12,5KA (SPBT12-280) — Specification Data Sheet (OEM)
