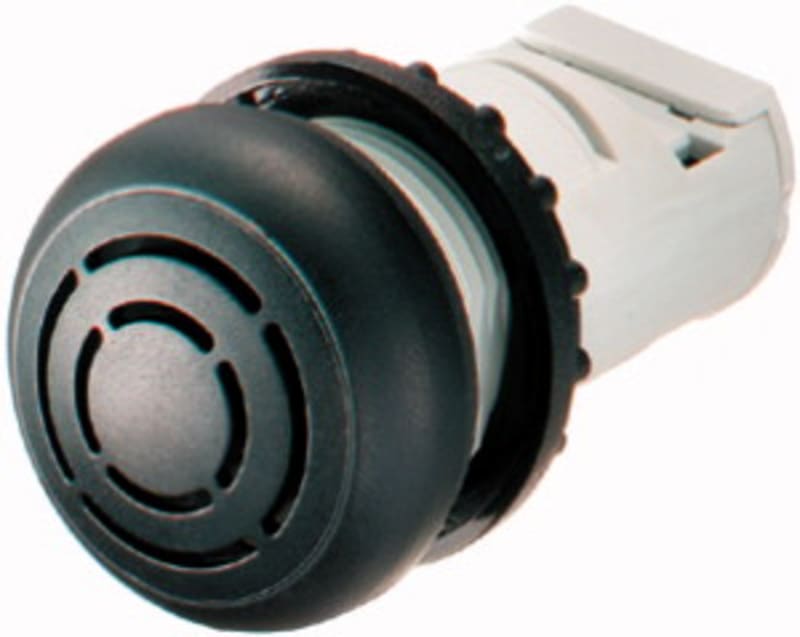

Summerfront Black IP40

Eaton M22-AMC Acoustic device, compact, IP40_x.

Manufacturer part number (MPN)

M22-AMC

EAN / GTIN

4015082290153

Sales unit

pcs

Eaton catalogue number

229015

Depth

62 mm

Height

30 mm

Width

30 mm

Weight

0.024 kg

Compliances

CE Marked

Certifications

CSA Std. C22.2 No. 94-91; UL 508; IEC 60947-5; EN 60947-5; CSA Std. C22.2 No. 14-05; VDE; CSA-C22.2 No. 94-91; CSA-C22.2 No. 14-05; UL Category Control No.: NKCR; CE; CSA File No.: 012528; IEC/EN 60947; VDE 0660; IEC/EN 60947-5; CSA Class No.: 3211-03; UL File No.: E29184; UL; CSA

Catalog Notes

without buzzer

Fitted with

BA 9s lamp socket

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

No

Rated insulation voltage (Ui)

250 V

Degree of protection

IP40; NEMA 4X, 13

Mounting position

As required

Overvoltage category

III

Pollution degree

3

Product Category

Accessories

Rated impulse withstand voltage (Uimp)

4000 V AC

Type

Compact

Voltage type

AC/DC

Terminal capacity (solid)

2 x (0.5 - 1.5) mm²

Terminal capacity (stranded)

0.5 - 1.5 mm²

Loudness

0 dB

Country of origin

Germany

HS Code

8531.80
