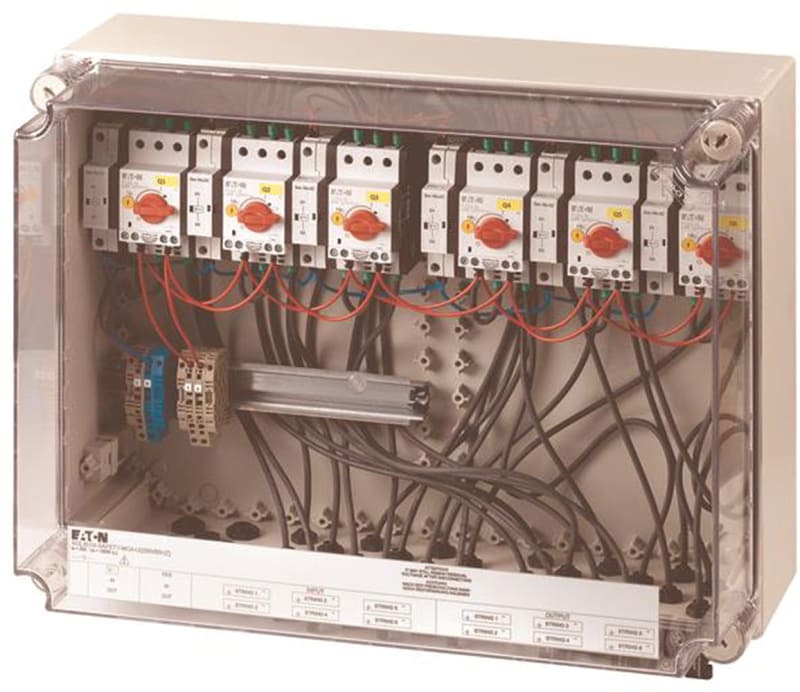

Firefighter's Switch (SOL30X6-SAFETY-MV-U(230V50HZ))

Eaton SOL30X6-SAFETY-MV-U firefighter's switch for photovoltaic installations, 230 V 50 Hz.

Manufacturer part number (MPN)

SOL30X6-SAFETY-MV-U(230V50HZ)

EAN / GTIN

4015081646746

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

168105

Depth

225 mm

Height

405 mm

Width

500 mm

Weight

9.5 kg

Certifications

IEC/EN 60 947-3

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

1

Number of auxiliary contacts (normally open contacts)

1

Rated operational current (Ie)

26 A at DC-PV1; 10 A at DC-PV2

Rated operational voltage (Ue) at AC - max

1000 V

Rated uninterrupted current (Iu)

30 A

Resistance

7 mΩ (internal)

Actuator type

Turn button

Enclosure material

Plastic

Features

Complete device in housing

Fitted with

0 (off) position; Retraction in 0-position

Number of poles

Two-pole

Application

Residential buildings Utility buildings

Connection type

M12, Inputs; M12, Outputs

Degree of protection

IP65

Degree of protection (front side)

IP65; NEMA Other

Lifespan, electrical

1,500 Operations

Lifespan, mechanical

100,000 Operations

Model

On/Off switch

Operating frequency

120 Operations/h

Overvoltage category

III

Pollution degree

3

Product Category

Fireman's Switch Switchgear for photovoltaic systems

Rated impulse withstand voltage (Uimp)

8000 V

Suitable for

Ground mounting

Utilization category

DC-21 A; DC-PV1 (EN 60947-3); DC-PV2 (EN 60947-3)

Rated short-circuit making capacity (Icm)

0.32 kA (up to 440 V, 50/60 Hz)

Rated short-time withstand current (Icw)

0.36 kA

HS Code

8536.90

• EAN 4015081646746
• SAP 1000768272
• Code 81171640
