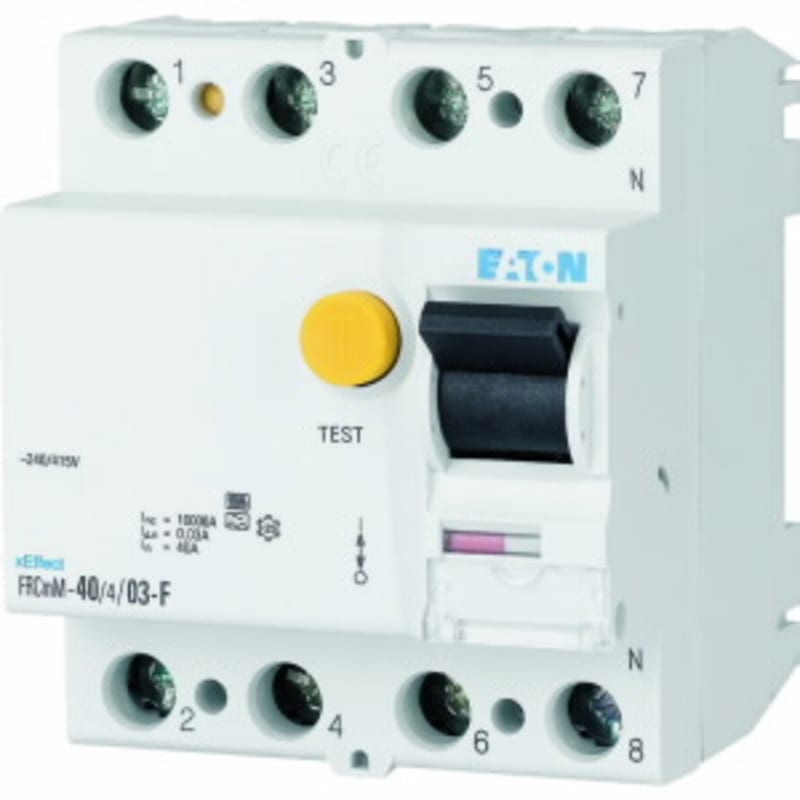

Residual current circuit breaker 100A 4P 300MA F

Eaton 187442 FRCMM-100/4/03-S/F.

Manufacturer part number (MPN)

187442

EAN / GTIN

4015081825004

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

187442

Depth

76 mm

Height

80 mm

Width

70 mm

Weight

0.381 kg

Compliances

RoHS conform

Certifications

IEC/EN 62423; EN45545-2; IEC 61373; IEC/EN 61008

Features

Selective protection; Additional equipment possible; Residual current circuit breaker

Fitted with

Interlocking device

Special features

Current test marks as per inscription Maximum operating temperature is 75 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.2% for every 1 °C

Used with

Residual current circuit breakers; FRCmM; Type S/F

Amperage Rating

100 A

Application

Switchgear for industrial and advanced commercial applications xEffect - Switchgear for industrial and advanced commercial applications

Fault current rating

300 mA

Impulse withstand current

5 kA (8/20 μs) surge-proof

Number of poles

Four-pole

Rated short-circuit strength

10 kA with back-up fuse

Sensitivity type

Pulse-current sensitive

Tripping time

40 ms delayed - selective switch off; Selective switch off

Type

FRCmM Residual current circuit breakers Type S/F

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

18.8 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

4.7 W

Rated operational current for specified heat dissipation (In)

100 A

Static heat dissipation, non-current-dependent

0 W

Admissible back-up fuse overload - max

80 A gG/gL

Frequency rating

50 Hz / 60 Hz

Leakage current type

Other

Lifespan, electrical

4000 operations

Pollution degree

2

Radiation resistance

Frequency mix (10 Hz, 50 Hz, 1000 Hz) enhanced sensitivity

Rated fault current - max

0.3 A

Rated fault current - min

0.3 A

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

240 V

Rated residual making and breaking capacity

1000 A

Rated short-time withstand current (Icw)

10 kA

Short-circuit rating

100 A (max. admissible back-up fuse)

Surge current capacity

5 kA

Test circuit range

184 V AC - 440 V AC

Voltage rating (IEC/EN 60947-2)

240 V AC / 415 V AC

Built-in depth

70.5 mm

Built-in width (number of units)

70 mm (4 SU)

Busbar material thickness

0.8 mm - 2 mm

Climatic proofing

25-55 °C / 90-95% relative humidity according to IEC 60068-2

Connectable conductor cross section (multi-wired) - max

16 mm²

Connectable conductor cross section (multi-wired) - min

1.5 mm²

Connectable conductor cross section (solid-core) - max

35 mm²

Connectable conductor cross section (solid-core) - min

1.5 mm²

Contact position indicator color

Red / green

Degree of protection

IP20, IP40 with suitable enclosure; IP20

Frame

45 mm

Lifespan, mechanical

20000 operations

Mounting Method

DIN rail; Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715

Mounting position

As required

Permitted storage and transport temperature - max

60 °C

Permitted storage and transport temperature - min

-35 °C

Status indication

White / blue

Terminal capacity (cable)

M5 (with cross-recessed screw as defined in EN ISO 4757-Z2, PZ2)

Terminal capacity (solid wire)

1.5 mm² - 35 mm²

Terminal capacity (stranded cable)

16 mm² (2x)

Terminal protection

Finger and hand touch safe, DGUV VS3, EN 50274

Terminals (top and bottom)

Twin-purpose terminals

Tightening torque

2 Nm - 2.4 Nm

Width in number of modular spacings

4

Document Name

Description Action

HS Code

8536.90

• EAN 4015081825004
• SAP 1200290168
• Code 82261803
