Eaton

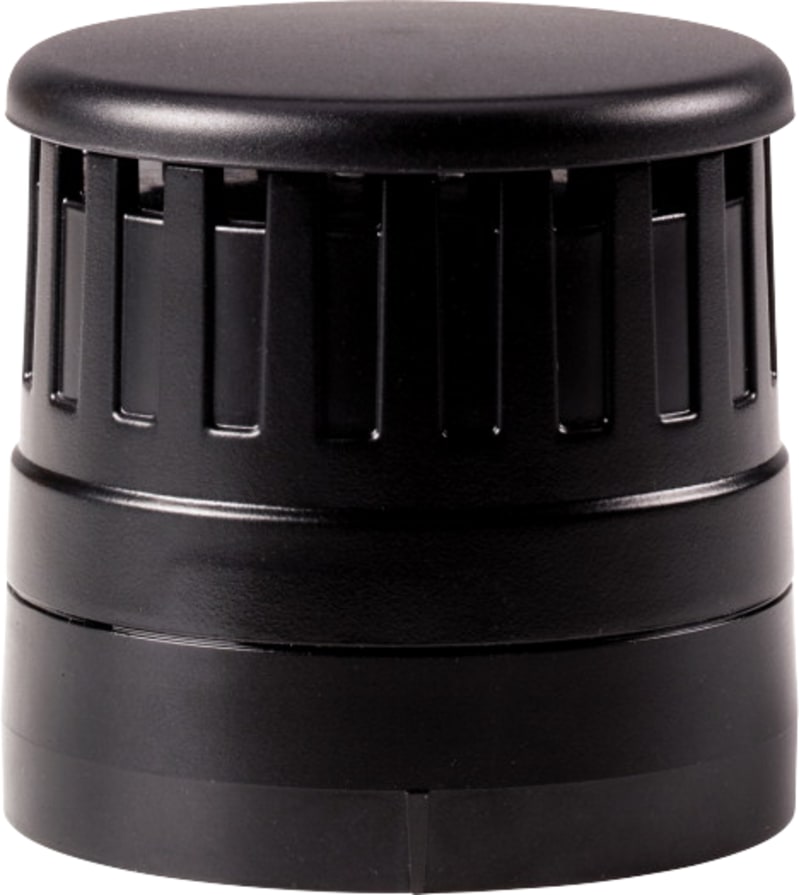

Akuplug,24V,Multitone (SL7-AP24-M)
Part numberSL7-AP24-MEAN / GTIN4015081678327HS code8531.80
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Akuplug,24V,Multitone (SL7-AP24-M) is listed in the cBallast industrial catalogue. HS code: 8531.80.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-AP24-M EAN / GTIN: 4015081678327 Sales unit: pcs Eaton catalogue number: 171287 Depth: 73 mm Height: 71 mm Width: 73 mm Weight: 0.091 kg Certifications: IEC/EN 60529; UL File No.: E29184; UL 508; CSA Class No.: NKCR7; CE; UL report applies to both US and Canada; UL Category Control No.: NKCR; CSA-C22.2 No. 94-91; Certified by UL for use in Canada; IEC/EN 60947-5-1; CSA-C22.2 No. 14-10; UL Ambient operating temperature - max: 60 °C Ambient operating temperature - min: -30 °C Climatic proofing: Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78 Leakage current: 0.003 A Rated insulation voltage (Ui): 250 V Rated operational current (Ie) - max: 115 mA Rated operational voltage (Ue) at AC - max: 24 V Rated operational voltage (Ue) at AC - min: 24 V Rated operational voltage (Ue) at DC - max: 24 V Rated operational voltage (Ue) at DC - min: 24 V Color: Black Features: Sound pressure adjustable to a minimum of 88 dB Functions: Other Alarm type: Internal sound setting, 3 pole DIP; Tone adjustable; Pulsed tone; 8 types of sound; Continuous tone Connection to SmartWire-DT: No Current consumption: 0.115 A, at 24 V AC/DC Degree of protection: NEMA 13; IP66 Frequency rating: 500 - 2700 Hz Loudness: Can be adjusted with built-in potentiometer; 100 dB material: Cap: Polycarbonate (PC); Enclosure: Polycarbonate (PC) Mounting position: As required; Place only at the highest position on a pole Overvoltage category: III Pollution degree: 3 Product Category: SL signal towers Radiation angle: 360 ° Rated impulse withstand voltage (Uimp): 4000 V AC Shock resistance: Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms Type: Acoustic module Voltage type: AC/DC Colour: Black Outer diameter: 73 mm Tone adjustable: Yes Operating voltage AC 50 Hz: 24 V Operating voltage AC 60 Hz: 24 V Operating voltage DC: 24 V Country of origin: Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081678327
- SAP 1000492322
- Code 8951781
Product Documentation
Document preview: Akuplug,24V,Multitone (SL7-AP24-M) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Door cut-out 144X144 xE M H600 B425
XSDMC0604-1-144
Eaton
Eaton reversing starter EMS2-ROSF-Z-3-24VDC ATEX 24 V DC
Eaton
Set Cu-rail MSW H100 B600 xE Basic
EP-502285
Eaton
Contactor,DILA-22(24VDC)-PI
Eaton
Rotary switch with light, Flat Front (M30C-FWLK-Y)
Eaton
Position Switch LS-20A
Eaton
Potentiometer, Flat Front (M30C-FR10K)
Eaton
Motor Protection Relay 1,6-2,4A (ZB12-2,4)
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SL7-AP24-M?
- SL7-AP24-M can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is SL7-AP24-M.
- What is the HS code for SL7-AP24-M?
- The customs tariff (HS) code for SL7-AP24-M is 8531.80.
- Who manufactures SL7-AP24-M?
- SL7-AP24-M is a Eaton product in the SC001261 range.
- Is a datasheet available for SL7-AP24-M?
- Yes — the SL7-AP24-M datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SL7-AP24-M?
- The minimum order quantity is 1.
- Is SL7-AP24-M available?
- Yes — SL7-AP24-M is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
