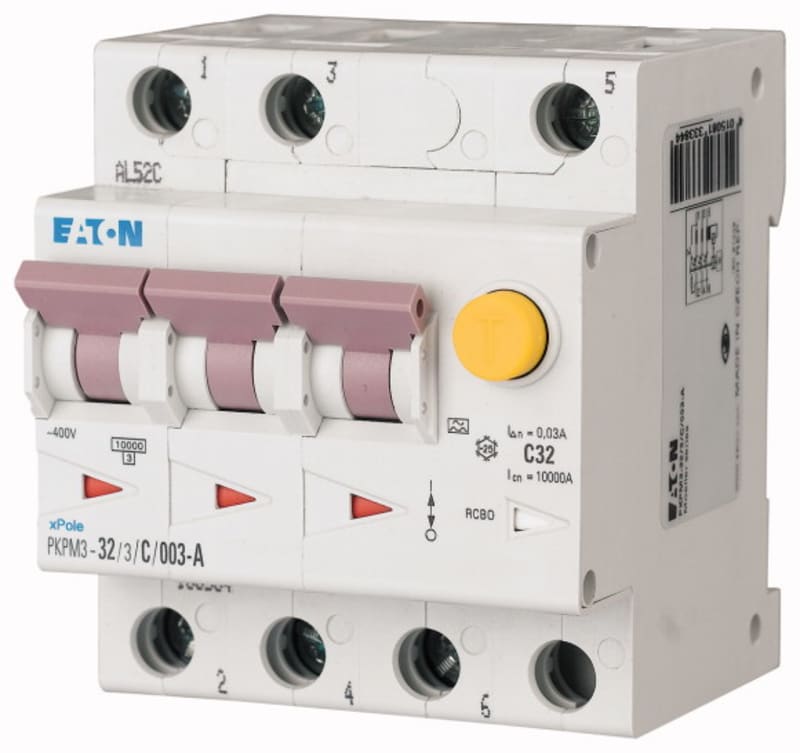

Residual current circuit breaker with overcurrent 32A 3P C 100MAA

Eaton PKPM3-32/3/C/01-Li/A PKPM3-32/3/C/01-Li/A.

Manufacturer part number (MPN)

PKPM3-32/3/C/01-Li/A

EAN / GTIN

9010238800397

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

196669

Depth

86 mm

Height

75 mm

Width

73 mm

Weight

0.39 kg

Compliances

CE Marked; RoHS conform

Certifications

CE

Amperage Rating

32 A

Voltage rating

230 V

Surge current capacity

0.25 kA

Voltage type

AC

Width in number of modular spacings

4

Features

Anti-nuisance tripping version

Device height

80 mm

Mounting style

Tri-stable slide catch - enables removal from existing busbar combination

Operating ambient temperature - max

40 °C

Operating ambient temperature - min

-25 °C

Product application

Switchgear for residential and commercial applications

Product range

PKPM3

Rated current

32 A

Rated fault currents of product range

10, 30, 100 MilliAmpere

Rated switching capacity (IEC/EN 61009)

10 kA

Tripping characteristic

C

Built-in depth

69.5 mm

Current limiting class

3

Rated short-circuit breaking capacity (EN 60947-2)

0 kA

Frame

45 mm

Terminal protection

Finger and hand touch safe, DGUV VS3, EN 50274

Terminals (top and bottom)

Twin-purpose

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-25 °C

Fault current rating

0.1 A

Number of poles (protected)

3

Number of poles (total)

3

Rated operational voltage (Ue) - max

400 V

Rated switching capacity

10 kA

Basic function

Combined RCD/MCB devices

Mounting Method

DIN rail

Climatic proofing

IEC/EN 61009

Equipment heat dissipation, current-dependent

12.8 W

Rated impulse withstand voltage (Uimp)

4 kV

Degree of protection (built in)

IP20, IP40 when fitted

Degree of protection

IP20, IP40 when fitted; IP20

Tripping

Non-delayed

Overvoltage category

III

Built-in width

70 mm

Pollution degree

2

Material thickness

2 mm

Rated non-tripping current

0.5 A

Leakage current type

A

Release characteristic

C

Sensitivity type

Type A, pulse-current sensitive

Frequency rating

50 Hz

Rated insulation voltage (Ui)

500 V

Connectable conductor cross section (solid-core) - min

1 mm²

Connectable conductor cross section (solid-core) - max

25 mm²

Connectable conductor cross section (multi-wired) - min

1 mm²

Connectable conductor cross section (multi-wired) - max

25 mm²

Rated short-circuit breaking capacity (EN 61009)

10 kA

Rated short-circuit breaking capacity (EN 61009-1)

10 kA

Voltage rating at AC

230 V

Number of poles

Three-pole

Disconnection characteristic

Short-time delayed

Lifespan, electrical

2000 operations

Lifespan, mechanical

10000 operations

Type

RCBO

Application

xPole - Switchgear for residential and commercial applications

Selectivity class

3

HS Code

8536.90

• EAN 9010238800397
• SAP 1200183301
• Code 82116547
