Eaton

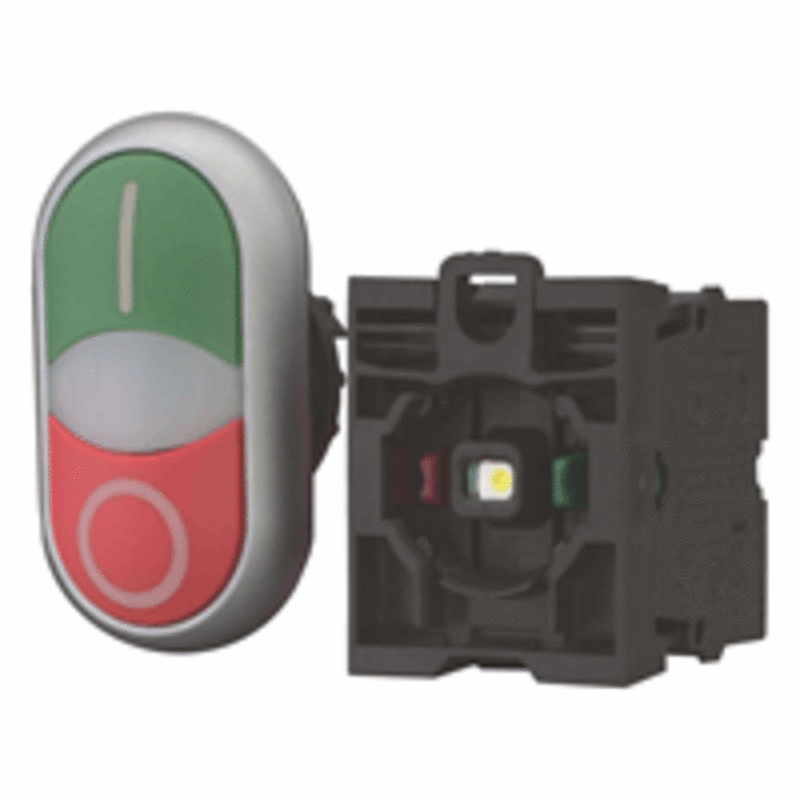

Complete Start/Stop+luminaire (M22-DDL-GR-X1/X0/K11/230-W)
Part numberM22-DDL-GR-X1/X0/K11/230-WEAN / GTIN4015082165093HS code8543.70
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-DDL-GR-X1/X0/K11/230-W Complete Start/Stop+Luminaire.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DDL-GR-X1/X0/K11/230-W
- EAN / GTIN
- 4015082165093
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216509
- Depth
- 30 mm
- Height
- 55 mm
- Width
- 30 mm
- Weight
- 0.015 kg
- Certifications
- CSA-C22.2 No. 94-91; CSA Class No.: 3211-03; CSA-C22.2 No. 14-05; IEC/EN 60947-5; UL File No.: E29184; UL; CSA; CSA File No.: 012528; IEC/EN 60947; CE; UL 508; UL Category Control No.: NKCR; VDE 0660; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- Green, red
- Actuator function
- Spring-return; Momentary
- Actuator travel and actuation force (DIN EN 60947-5-1)
- 4.8 mm
- Bezel color
- Chrome
- Bezel material
- Plastic
- Design
- Non-Flush; Classical
- Electric connection type
- Screw connection
- Features
- Transparent
- Fitted with
- Front ring; LED element
- Inscription
- Inscribed
- Knob travel
- 5.7 mm
- Lens type
- Round
- Light color
- White
- Number of command positions
- 2
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- No
- Equipment heat dissipation, current-dependent Pvid
- 0 W
- Heat dissipation capacity Pdiss
- 0 W
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Static heat dissipation, non-current-dependent Pvs
- 1 W
- Rated operational voltage
- 230 V AC
- Degree of protection
- NEMA 4X, 13; IP66
- Lifespan, mechanical
- 1,000,000 Operations (AC operated)
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 1800 Operations/h
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front dimensions: 29,7 x 54,7 mm
- Suitable for
- Illumination
- Type
- Double actuator
- Rated conditional short-circuit current (Iq)
- 1 kA
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 4015082165093
- SAP 1000037411
- Code 8778498
Product Documentation
Document preview: COMPLETE START/STOPP+LUMINAIRE (M22-DDL-GR-X1/X0/K11/230-W) — Specification Data Sheet (OEM)
