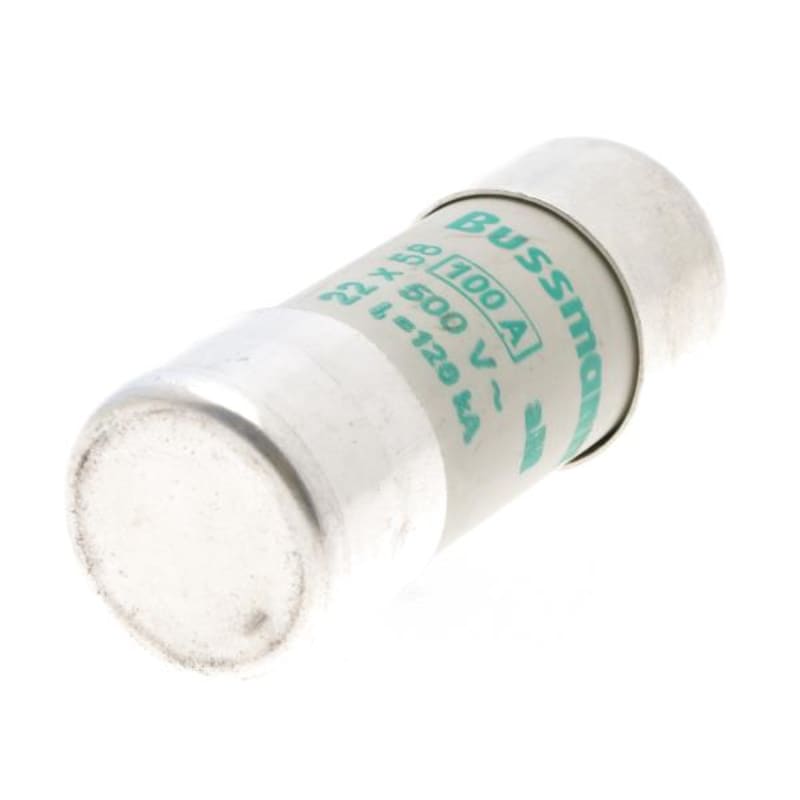

Cylindrical Fuse 22X58MM, 100A
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton C22M100 Bussmann series cylindrical fuse link, 22 x 58 mm ceramic ferrule body, 100 A, utilisation category aM (motor circuit, partial-range back-up): it clears short-circuit current only and must be combined with a separate overload relay. Fits a standard 22 x 58 mm cylindrical fuse holder and conforms to IEC 60269.
Technical Specifications
- Manufacturer part number (MPN)
- C22M100
- EAN / GTIN
- 5027590495639
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Rated current
- 100 A
- Dimensions
- 22x58 mm
- Breaking capacity at nominal voltage, AC
- 120 kA
- Rated voltage AC
- 500 V
- Rated operating frequency
- 45–62 Hz
- Model
- Ceramic fuse
- Rated voltage
- 500 V
- Size
- 22x58 mm
- Voltage type
- AC
- Utilization category according to IEC 60269
- aM
- Nominal current
- 100 A
- With striker
- No
- Breaking capacity
- 120 kA
- Power loss at rated current
- 6.61 W
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8536.10
Cross References
- EAN 5027590495639
- SAP 1200393030
- Code 82417156
Product Documentation
More from Eaton
Eaton

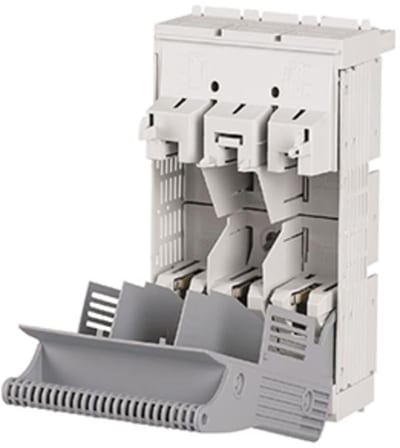

NH0 Switch-disconnector 3P160 BL
XNH00-FCL-S160-BT2
Eaton
Connection Terminal 16-70mm², f 10mm
AKU70/10
Eaton

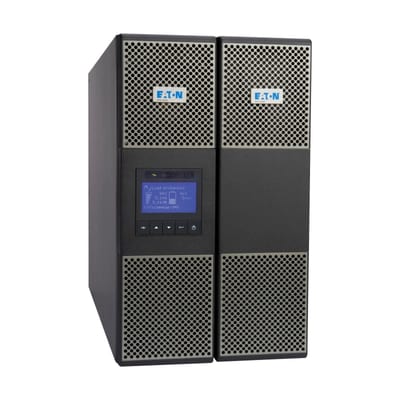

Eaton 9PX 1500I RT2U Netpack
