Eaton
LOAD-Break Switch 40A 2-Pole
Part numberIS-40/2EAN / GTIN4015082762711HS code8536.90
Switchgear & Protection
Disconnect Switches
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton IS-40/2 LOAD-BREAK SWITCH 40A 2-POLE.
Technical Specifications
- Manufacturer part number (MPN)
- IS-40/2
- EAN / GTIN
- 4015082762711
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Eaton catalogue number
- 276271
- Depth
- 60 mm
- Height
- 80 mm
- Width
- 35.4 mm
- Weight
- 0.201 kg
- Compliances
- RoHS conform
- Certifications
- EN45545-2; IEC 61373
- Type
- IS. Main load disconnector switch
- Amperage rating
- 40 A
- Application
- Switchgear for industrial and advanced commercial applications
- Number of poles
- Two-pole
- Rated operational voltage (Ue) - max
- 415 V
- Voltage type
- AC
- Rated short-time withstand current (Icw)
- 1 kA
- Rated switching capacity
- 12.5 kA
- Voltage rating - min
- 240 V
- Width in number of modular spacings
- 2
- Degree of protection
- IP40; IP10
- Built-in depth
- 69.5 mm
- Terminals
- Lift terminal
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally open contacts)
- 2
- Number of contacts (normally closed contacts)
- 2
- Color calotte
- Other
- Lamp socket
- Other
- Lamp type
- Other
- Switch type
- Other
- Ambient operating temperature - max
- 40 °C
- Ambient operating temperature - min
- -5 °C
- Static heat dissipation, non-current-dependent
- 0 W
- Heat dissipation per pole, current-dependent
- 1.9 W
- Heat dissipation capacity
- 0 W
- Equipment heat dissipation, current-dependent
- 1.5 W
- Rated operational current for specified heat dissipation (In)
- 40 A
- Imprint/indication
- Symbol "arrows"
- Document Name
- Description Action
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015082762711
- SAP 1000039099
- Code 8786827
Product Documentation
Document preview: LOAD-BREAK SWITCH 40A 2-POLE (IS-40/2) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Busbar AFDD 12MOD (193378)
Eaton
Residual current circuit breaker with overcurrent 25A C Type-F
MB-300059
Eaton
Eaton PLHT-OV80/4 Miniature Circuit Breaker — 4P, OV, 80 A, 20 kA
Eaton
Eaton Ellipse PRO 650 DIN
ELP650DIN
Eaton
Load-break switch 80A 3P
276280
Eaton
Safety Switch, 3P, 1NO+1NC, in 63A
P3-63/I4/SVB/HI11
Eaton

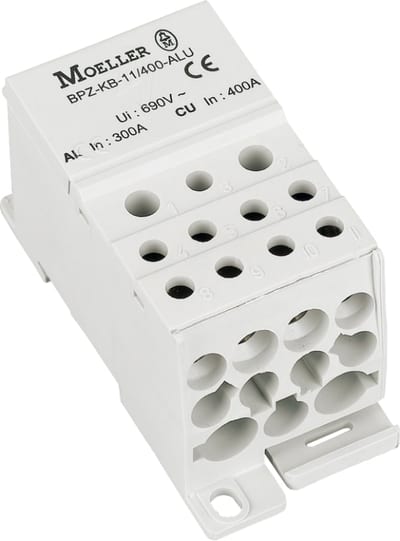

Terminal Block 400 A - 11 Outgoing Feeders
