Eaton

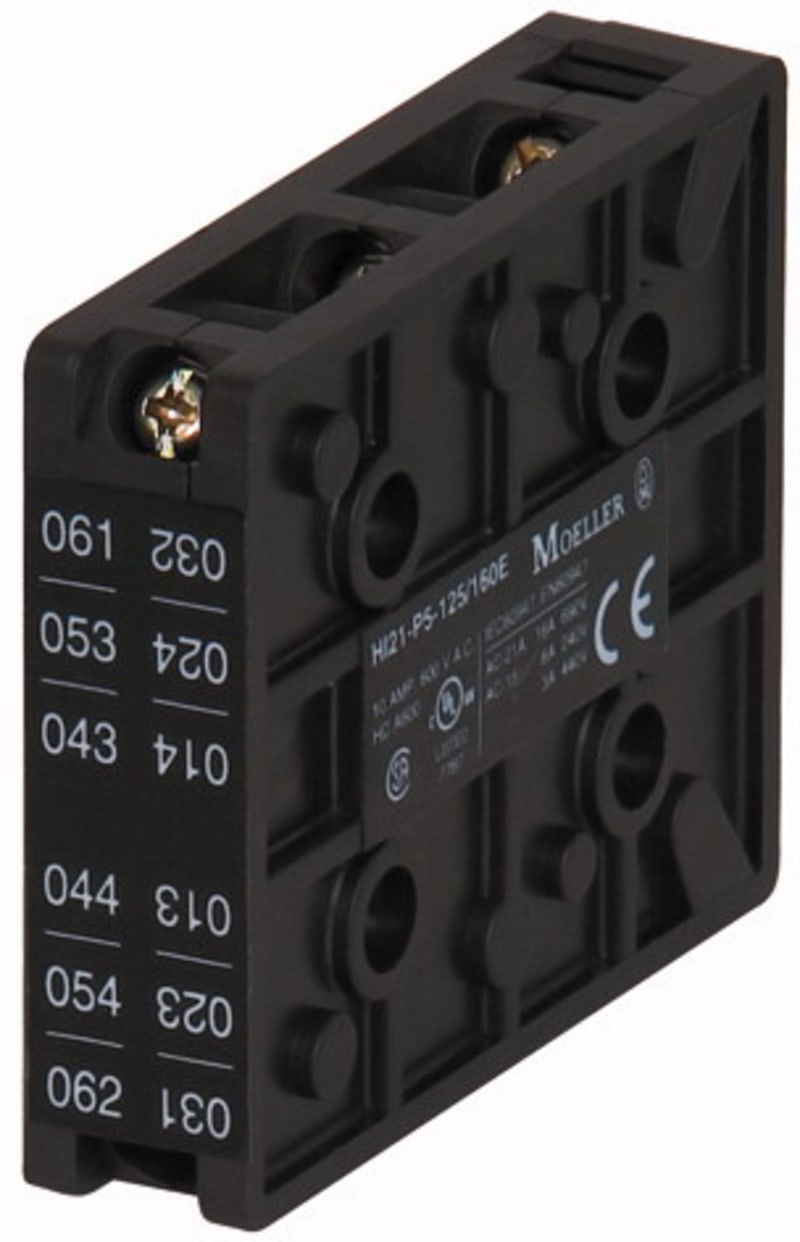

Auxiliary contact (HI21-P5-125/160E)
Part numberHI21-P5-125/160EEAN / GTIN4015082809638HS code8536.50
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Auxiliary contact (HI21-P5-125/160E) is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 280963; Depth: 50 mm; Height: 75 mm; Width: 130 mm; Weight: 0.045 kg.
Technical Specifications
- Manufacturer part number (MPN)
- HI21-P5-125/160E
- EAN / GTIN
- 4015082809638
- Sales unit
- pcs
- Eaton catalogue number
- 280963
- Depth
- 50 mm
- Height
- 75 mm
- Width
- 130 mm
- Weight
- 0.045 kg
- Compliances
- CE Marked
- Certifications
- IEC 60947-5; UL 508; CSA Std. C22.2 No. 14-05; EN 60947-5; CSA File No.: 223805; CSA-C22.2 No. 14-05; CSA; UL File No.: E36332; CSA Class No.: 3211-03; IEC/EN 60947-5; CE; UL Category Control No.: NLRV, NLRV7
- Catalog Notes
- Late-break switching-on behavior, early-make switching-off behavior
- Ambient operating temperature - max
- 50 °C
- Ambient operating temperature - min
- -25 °C
- Control circuit reliability
- 1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 2
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Rated insulation voltage (Ui)
- 500 V
- Rated operational current (Ie)
- 0.1 A at DC-13, 250 V
- Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
- 6 A
- Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
- 3 A
- Rated operational current (Ie) at DC-13, 125 V
- 0.23 A
- Rated uninterrupted current (Iu)
- 10 A
- Electric connection type
- Screw connection
- Connection type
- Screw connection
- Model
- Top mounting
- Mounting method
- Side mounting
- Mounting position
- Right side; Left side
- Product category
- Accessories
- Type
- Auxiliary contact
- Used with
- P5-125(160)/E(EA)
- Short-circuit protection rating
- Max. 10 A gG/gL, Fuse, Auxiliary contacts
- Stripping length (main cable)
- 8 mm
- Terminal capacity (flexible with ferrule)
- 0.5 - 2.5 mm², ferrules to DIN 46228
- Terminal capacity (solid)
- 0.5 - 2.5 mm²
- Tightening torque
- 0.8 Nm, Screw terminals
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082809638
- SAP 1000252441
- Code 81131971
Product Documentation
Document preview: Auxiliary contact (HI21-P5-125/160E) — Specification Data Sheet (OEM)
