Eaton

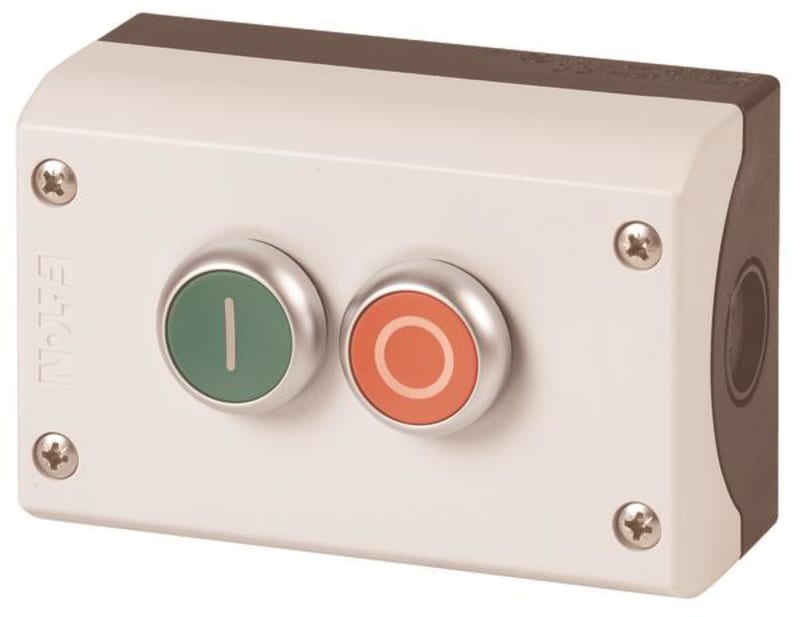

BOX M/RED/Green Button 2S+2TO
Part numberM22-I2-M1EAN / GTIN4015082165291HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton BOX M/RED/Green Button 2S+2TO (part number M22-I2-M1) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 216529; Depth: 80 mm; Height: 70 mm; Width: 120 mm; Weight: 0.255 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M22-I2-M1
- EAN / GTIN
- 4015082165291
- Sales unit
- pcs
- Eaton catalogue number
- 216529
- Depth
- 80 mm
- Height
- 70 mm
- Width
- 120 mm
- Weight
- 0.255 kg
- Compliances
- CE Marked
- Certifications
- IEC 60947-5; UL 508; EN 60947-5; CSA Std. C22.2 No. 94-91; CSA Std. C22.2 No. 14-05; VDE; IEC/EN 60947-5; VDE 0660; CE; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CSA; CSA Class No.: 3211-03; UL Category Control No.: NKCR; UL File No.: E29184; CSA File No.: 012528; IEC/EN 60947; UL
- Catalog Notes
- Contacts with safety function, by positive opening to IEC/EN 60947-5-1
- Actuating force
- 5 N
- Actuator color
- Green, red
- Actuator function
- Momentary
- Actuator travel and actuation force (DIN EN 60947-5-1)
- 4.8 mm
- Bezel color
- Titanium
- Design
- Enclosure
- Enclosure color
- Gray
- Enclosure material
- Plastic
- Inscription
- Inscribed
- Knob travel
- 5.7 mm
- Knockouts
- 1 x M20 (cable entry knockout at the side); 2 x M25/20 (cable entry knockouts at the side); 2 x M20 (cable entry knockouts at the base)
- Number of command positions
- 2
- Number of locations
- 2
- RAL-number
- 7035
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Rated control supply voltage (Us) at AC, 50 Hz - max
- 500 V
- Rated control supply voltage (Us) at AC, 50 Hz - min
- 115 V
- Rated control supply voltage (Us) at AC, 60 Hz - max
- 500 V
- Rated control supply voltage (Us) at AC, 60 Hz - min
- 115 V
- Rated control supply voltage (Us) at DC - max
- 220 V
- Rated control supply voltage (Us) at DC - min
- 24 V
- Degree of protection
- IP67/IP69K; NEMA 4X, 13
- Lifespan
- 5,000,000 mechanical Operations
- Mounting position
- As required
- Operating frequency
- 3600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 120 x 80 mm
- Type
- Pushbutton actuator
- Rated conditional short-circuit current (Iq)
- 1 kA
- Housing colour
- Grey
- Colour housing cover
- Grey
- Suitable for emergency stop
- No
- Housing material
- Plastic
- Rated control supply voltage AC 50 Hz
- 115–500 V
- Rated control supply voltage AC 60 Hz
- 115–500 V
- Rated control supply voltage DC
- 24–220 V
- Explosion-tested version
- No
- Number of push buttons
- 2
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 2
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082165291
- SAP 1000026422
- Code 8198368
Product Documentation
Document preview: BOX M/RED/Green Button 2S+2TO (M22-I2-M1) — Specification Data Sheet (OEM)
