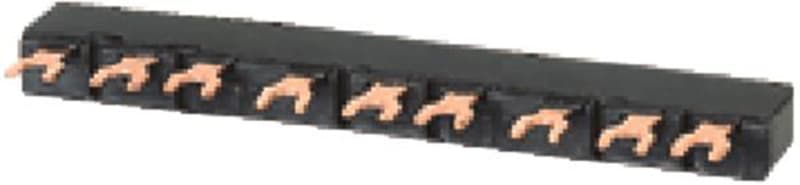

Fellesleder (B3.0/3-PKZ0)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Fellesleder (B3.0/3-PKZ0) is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 232289; Depth: 135 mm; Height: 34 mm; Width: 12 mm.
Technical Specifications
- Manufacturer part number (MPN)
- B3.0/3-PKZ0
- EAN / GTIN
- 4015082322892
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 232289
- Depth
- 135 mm
- Height
- 34 mm
- Width
- 12 mm
- Weight
- 0.058 kg
- Certifications
- UL 508; CSA File No.: 98494; UL Category Control No.: NLRV; CE; UL File No.: E36332; IEC/EN 60947-4-1; UL; CSA; CSA-C22.2 No. 14; CSA Class No.: 3211-06
- Catalog Notes
- For parallel power feed to several motor-protective circuit-breakers on terminals 1, 3, 5 3 circuit breaker without auxiliary contact or voltage release built on laterally can be extended by rotating installation protective against direct contact.
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Rated operational current for specified heat dissipation (In)
- 63 A
- Equipment heat dissipation, current-dependent Pvid
- 4.5 W
- Heat dissipation per pole, current-dependent Pvid
- 1.5 W
- Rated operational voltage (Ue) - max
- 690 V
- Rated operational voltage (Ue) at AC - max
- 690 V
- Rated uninterrupted current (Iu)
- 63 A
- Color
- Black
- Features
- Insulated
- Functions
- Can be extended by rotating installation
- Number of poles
- Three-pole
- Number of phases
- 3
- Electric connection type
- Fork
- Mounting width
- 45 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- Accessories
- Rated impulse withstand voltage (Uimp)
- 6000 V AC
- Suitable for
- 3 Circuit-breakers
- Used with
- PKZ0; PKE12; PKE32
- Colour
- Black
- Insulated
- Yes
- Rated permanent current Iu
- 63 A
- Length
- 135 mm
- Width in number of modular spacings
- 7.5
- Rated surge voltage
- 6 kV
- Type of electric connection
- Fork
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Suitable for number of devices
- 3
- Max. rated operation voltage Ue
- 690 V
- Module width
- 45 mm
- Can be cut to size
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082322892
- SAP 1000289087
- Code 81159262
Product Documentation
