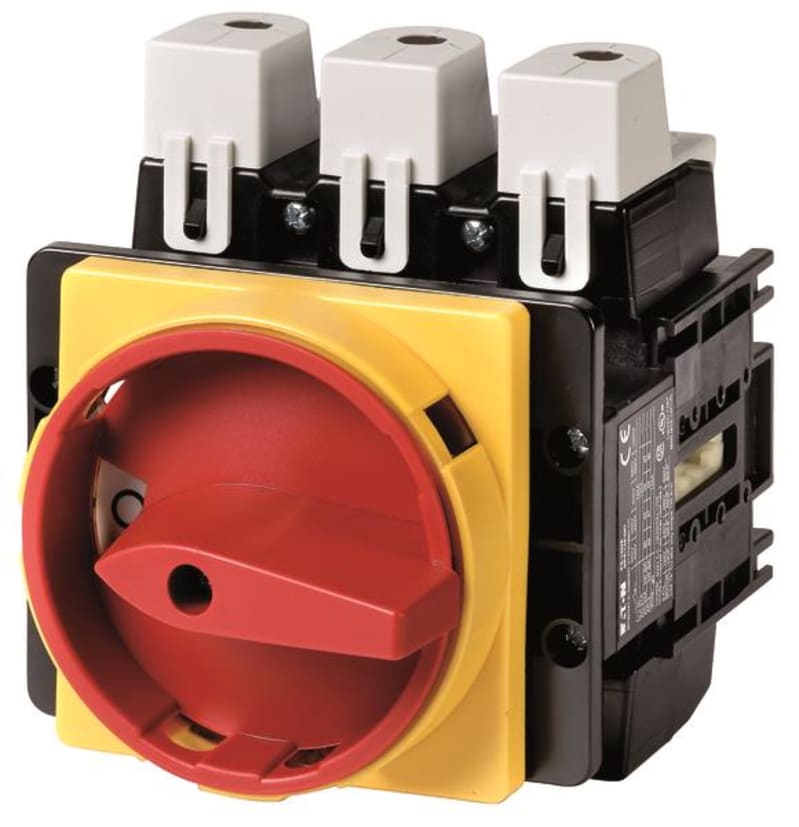

Safety Switch (P5-160/EA/SVB/N)

Eaton Safety Switch (P5-160/EA/SVB/N) is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Eaton catalogue number: 280924; Depth: 150 mm; Height: 150 mm; Width: 130 mm; Weight: 1.444 kg.

Manufacturer part number (MPN)

P5-160/EA/SVB/N

EAN / GTIN

4015082809249

Sales unit

pcs

Eaton catalogue number

280924

Depth

150 mm

Height

150 mm

Width

130 mm

Weight

1.444 kg

Certifications

UL Category Control No.: NLRV

NLRV7; UL 508; CSA Class No.

3211-05; CE; CSA-C22.2 No. 14-05; IEC/EN 60947; VDE 0660; UL File No.: E36332; IEC/EN 60947-3; IEC/EN 60204; UL; CSA; CSA-C22.2 No. 94; CSA File No.: 223805

Catalog Notes

Rated Short-time Withstand Current (Icw) for a time of 1 second

Actuator color

Red

Actuator type

Door coupling rotary drive

Ambient operating temperature - max

50 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Control circuit reliability

1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Equipment heat dissipation, current-dependent Pvid

5 W

Heat dissipation per pole, current-dependent Pvid

5 W

Rated operational current for specified heat dissipation (In)

160 A

Rated breaking capacity at 220/230 V (cos phi to IEC 60947-3)

900 A

Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)

850 A

Rated breaking capacity at 500 V (cos phi to IEC 60947-3)

850 A

Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)

340 A

Rated operational current (Ie) at AC-21

440 V

160 A

Rated operational current (Ie) at AC-23A

230 V

103 A

Rated operational current (Ie) at AC-23A, 400 V

415 V

105 A

Rated operational current (Ie) at AC-23A

500 V

106 A

Rated operational current (Ie) at AC-23A

690 V

42 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

103 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

85 A

Rated operational current (Ie) at AC-3

500 V

80 A

Rated operational current (Ie) at AC-3, 660 V

Rated operational current (Ie) at DC-23A

120 V

50 A

Rated operational current (Ie) at DC-23A

24 V

160 A

Rated operational current (Ie) at DC-23A

48 V

160 A

Rated operational current (Ie) at DC-23A

60 V

160 A

Rated operational power at AC-23A, 220/230 V

50 Hz

30 kW

Rated operational power at AC-23A, 400 V

50 Hz

55 kW

Rated operational power at AC-23A, 500 V

50 Hz

75 kW

Rated operational power at AC-23A, 690 V

50 Hz

37 kW

Rated operational power at AC-3, 380/400 V

50 Hz

45 kW

Rated operational power at AC-3, 415 V

Rated operational power at AC-3, 500 V

Rated operational power at AC-3, 690 V

Rated operational voltage (Ue) at AC - max

690 V

Rated uninterrupted current (Iu)

160 A

Uninterrupted current

Rated uninterrupted current Iu is specified for max. cross-section.

Features

Version as main switch; Version as maintenance-/service switch; Version as emergency stop installation

Fitted with

Red rotary handle and yellow locking ring

Functions

Interlockable; Emergency switching off function

Locking facility

Lockable in the 0 (Off) position

Number of poles

4

Accessories

Auxiliary contact fitted by user.

Degree of protection

NEMA 12

Degree of protection (front side)

IP65

Lifespan, mechanical

100,000 Operations

Mounting method

Flush mounting

Mounting position

As required

Operating frequency

50 Operations/h

Overvoltage category

III

Pollution degree

3

Product Category

Main switch

Rated impulse withstand voltage (Uimp)

8000 V AC

Safe isolation

440 V AC, Between the contacts, According to EN 61140

Safety parameter (EN ISO 13849-1)

B10d values as per EN ISO 13849-1, table C.1

Suitable for

Front mounting 4-hole; Branch circuits, suitable as motor disconnect, (UL/CSA)

Assigned motor power at 115/120 V, 60 Hz

1-phase

10 HP

Assigned motor power at 115/120 V, 60 Hz

3-phase

20 HP

Assigned motor power at 230/240 V, 60 Hz

1-phase

25 HP

Assigned motor power at 230/240 V, 60 Hz

3-phase

40 HP

Assigned motor power at 277 V, 60 Hz

Assigned motor power at 460/480 V, 60 Hz

3-phase

60 HP

Assigned motor power at 575/600 V, 60 Hz

Rated conditional short-circuit current (Iq)

30 kA

Rated short-time withstand current (Icw)

3 kA; 3 kA, Contacts, 1 second

Short-circuit current rating (basic rating)

400A Class RK1, max. Fuse, SCCR (UL/CSA); 10 kA, SCCR (UL/CSA)

Short-circuit current rating (high fault)

300 A, Class J, max. Fuse, SCCR (UL/CSA); 65 kA, SCCR (UL/CSA)

Short-circuit protection rating

160 A gG/gL, Fuse, Contacts

Load rating

1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor); 1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor); 2 x Iₑ (with intermittent operation class 12, 25 % duty factor)

Number of contacts in series at DC-23A

120 V

3

Number of contacts in series at DC-23A

24 V

3

Number of contacts in series at DC-23A

48 V

3

Number of contacts in series at DC-23A

60 V

3

Rated making capacity up to 690 V (cos phi to IEC/EN 60947-3)

1050 A

Switching capacity (auxiliary contacts, general use)

10A, IU, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

A600 (UL/CSA)

Switching capacity (main contacts, general use)

200 A, Rated uninterrupted current max. (UL/CSA)

Voltage per contact pair in series

42 V

HS Code

8536.50
