Eaton

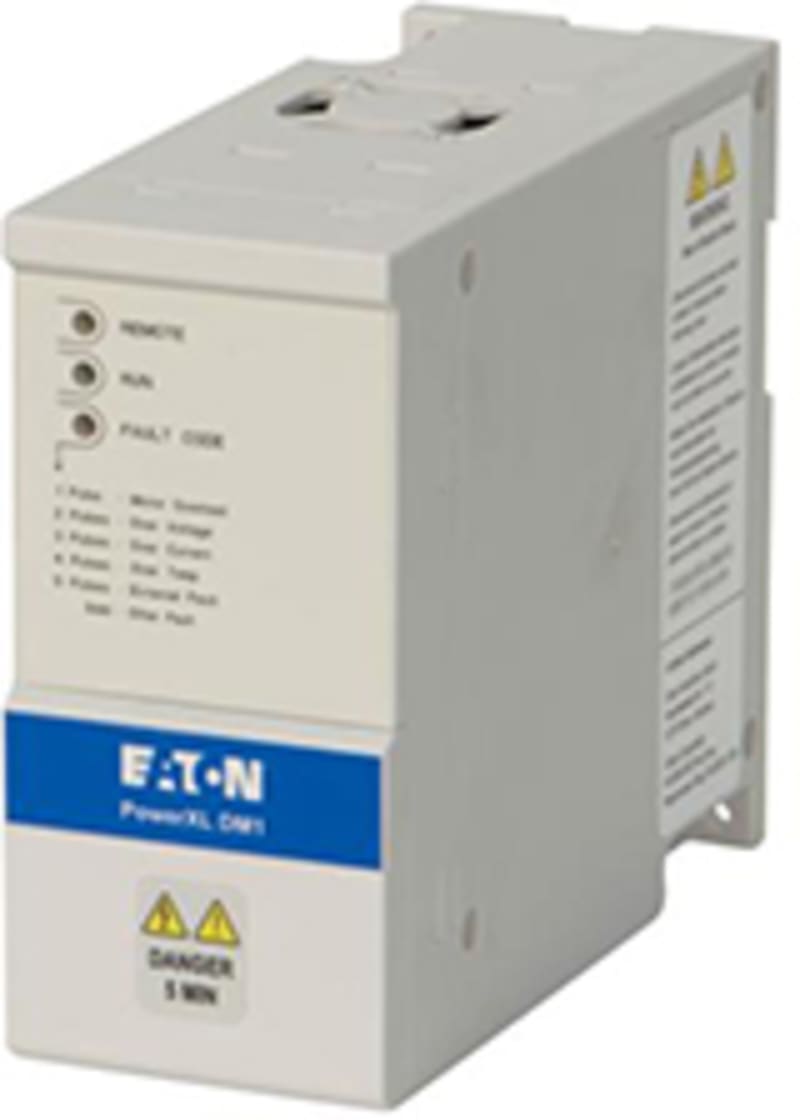

variable-frequency drive DM1-342D2EB-N20B-EM
Part numberDM1-342D2EB-N20B-EMEAN / GTIN4015081980413HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton DM1-342D2EB-N20B-EM variable-frequency drive DM1, 400 V AC, 3-pole, 2.2 A, 0.75 kW, IP20/NEMA0, Radio interference filter, Brake chopper.
Technical Specifications
- Manufacturer part number (MPN)
- DM1-342D2EB-N20B-EM
- EAN / GTIN
- 4015081980413
- HS code
- 8504.40
- Sales unit
- pcs
- Width
- 72 mm
- Height
- 152 mm
- Depth
- 180 mm
- Power consumption
- 65 W
- With control element
- No
- Number of digital inputs
- 4
- Number of analogue inputs
- 1
- Number of analogue outputs
- 1
- Supporting protocol for LON
- No
- Number of HW-interfaces RS-485
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- Degree of protection (IP)
- IP20
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- Yes
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- Yes
- Max. output frequency
- 400 Hz
- Max. output at linear load at rated output voltage
- 0.75 kW
- Max. output at quadratic load at rated output voltage
- 1.5 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 10 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 500 V
- Nominal output current I2N
- 2.2 A
- Supporting protocol for BACnet
- No
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4015081980413
- SAP 1200553471
- Code 82920413
Product Documentation
Document preview: variable-frequency drive DM1-342D2EB-N20B-EM — Specification sheet
More from Eaton
Eaton

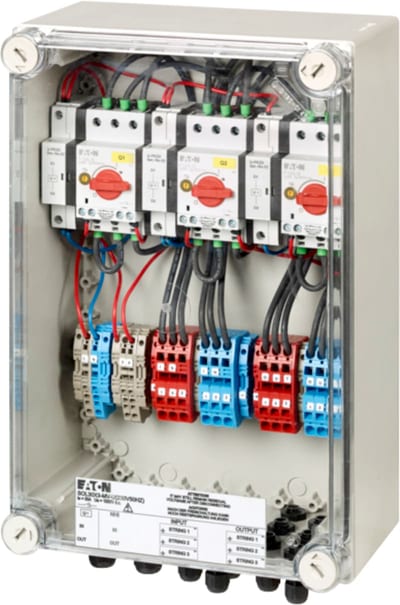

SOL30X3-Safety-MC4-U(230V50HZ) (168100)
Eaton

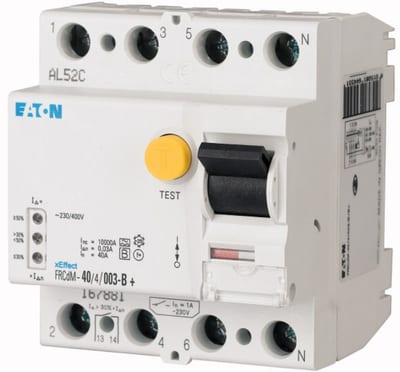

Eaton xEffect FRCdM Residual Current Circuit Breaker (RCCB) — Type B+, 4-Pole, 25 A, 30 mA, Short-Time Delayed
167880
Eaton
Eaton IZMX-PXRV-TA-1
Eaton

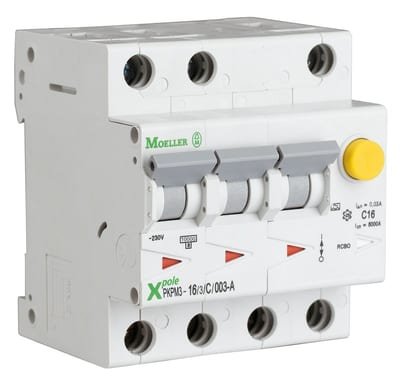

Residual current circuit breaker with overcurrent 13A 3P C 100MAA
PKPM3-13/3/C/01-A
Eaton
Safety Switch (P5-250/V/SVB)
Eaton
Eaton FAZ-Z25/1 Miniature Circuit Breaker — 1P, Type Z, 25 A, 15 kA
Eaton

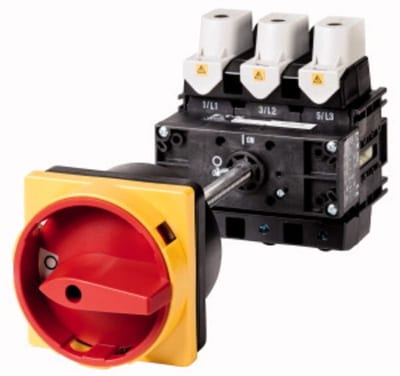

Safety Switch (P5-160/V/SVB/N)
Eaton

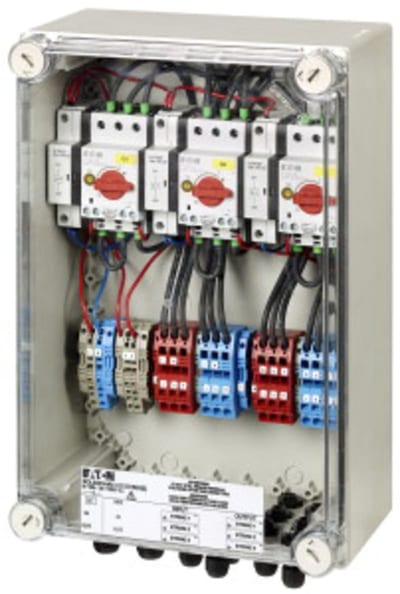

Eaton SOL30X3-SAFETY-MV-U(230V50HZ)
