Dehn

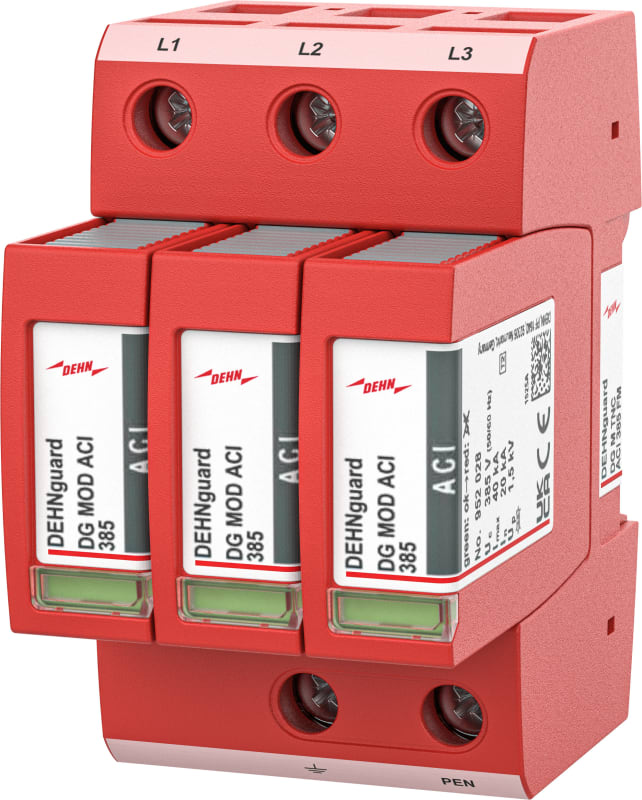

Surge protection device Type 2+3 for IT ACI
Part number952340EAN / GTIN4013364560840HS code8536.90
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Dehn 952340 Surge protection device Type 2+3 for IT without behov for forankoblet fuse.
Technical Specifications
- Manufacturer part number (MPN)
- 952340
- EAN / GTIN
- 4013364560840
- HS code
- 8536.90
- Sales unit
- pcs
- System configuration DC
- No
- System configuration IT
- Yes
- System configuration TN
- Yes
- System configuration TN-C
- Yes
- System configuration TT
- Yes
- System configuration other
- Yes
- Number of conductors (without earthing)
- 3
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 40 kA
- Nominal voltage AC
- 230 V
- Max. continuous voltage AC
- 385 V
- Voltage protection level
- 1.5 kV
- Voltage protection level L-N
- 1.5 kV
- Voltage protection level N-PE
- 1.5 kV
- Short-circuit breaking capacity (Isccr)
- 25 kA
- Integrated short-circuit protection
- Yes
- Integrated backup fuse
- Yes
- Leakage-current free
- Yes
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 35 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4013364560840
- SAP 1200928048
- Code 84213338
Product Documentation
Document preview: Surge protection device Type 2+3 for IT ACI (952340) — Specification sheet
