Dehn
DEHNguard® DG S TNC 385 Type 2
Part number1606981HS code8536.30
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Dehn 1606981 DEHNguard® DG S TNC 385 Type 2 FM.
Technical Specifications
- Manufacturer part number (MPN)
- 1606981
- Sales unit
- pcs
- El-nummer (NO)
- 1606981
- ETIM class
- SC000941
- Nominal discharge surge current (8/20)
- 20 kA
- Nominal voltage AC
- 230 V
- Max. continuous voltage AC
- 385 V
- Max. continuous voltage DC
- 500 V
- Voltage protection level
- 1.75 kV
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 1 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- 4013364108523
- El-nr 1606981
Product Documentation
Document preview: DEHNguard® DG S TNC 385 Type 2 (1606981) — Specification sheet
More from Dehn
Dehn

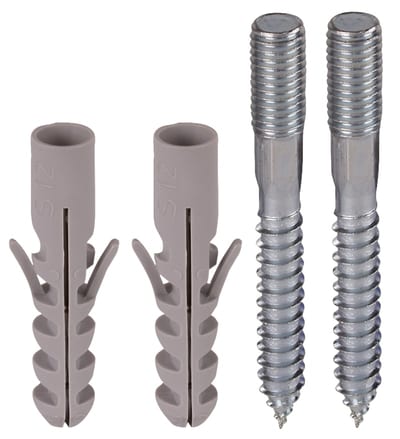

Screw set for equipotential bonding bar
