Dehn

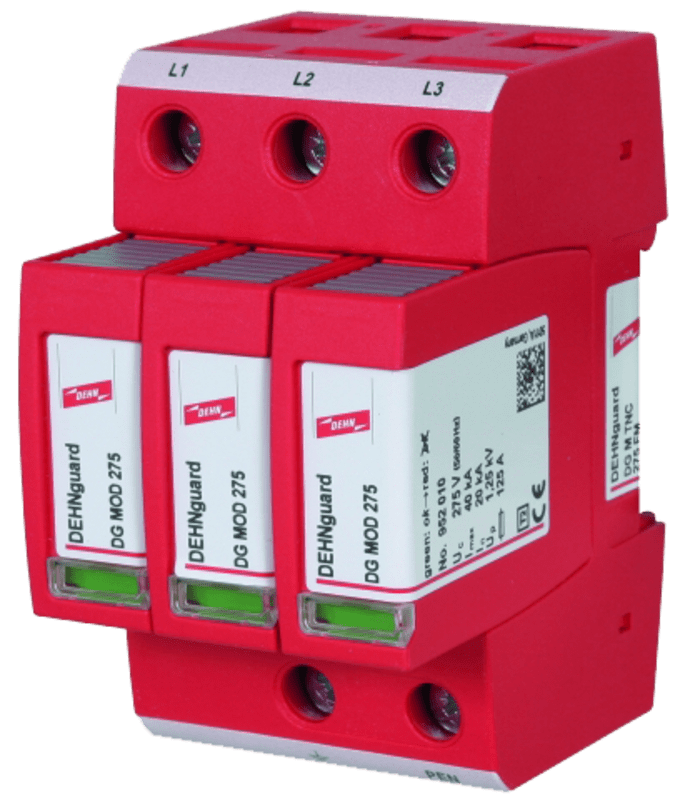

Dehnguard M TNC 275 FM TYPE 2
Part number1606965HS code8536.30
Switchgear & Protection
Surge Protectors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Dehn 1606965 DG M TNC 275 FM With meldekontakt 3 pole.
Technical Specifications
- Manufacturer part number (MPN)
- 1606965
- Sales unit
- pcs
- El-nummer (NO)
- 1606965
- ETIM class
- SC000941
- System configuration
- TN-C
- System configuration DC
- No
- System configuration IT
- No
- System configuration TN
- No
- System configuration TN-C
- Yes
- System configuration TT
- No
- System configuration other
- No
- Number of conductors (without earthing)
- 3
- Nominal discharge surge current (8/20)
- 20 kA
- Max. discharge surge current (8/20)
- 40 kA
- Short-circuit-proof
- Yes
- Nominal voltage AC
- 230 V
- Max. continuous voltage AC
- 275 V
- Voltage protection level
- 1.5 kV
- Voltage protection level L-N
- 1.5 kV
- Voltage protection level N-PE
- 1.5 kV
- Max. overcurrent protection device, series connection (fuse)
- 100 A
- Short-circuit breaking capacity (Isccr)
- 50 kA
- Integrated short-circuit protection
- No
- Integrated backup fuse
- No
- Leakage-current free
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- With remote signalling contact
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- 4013364108448
- El-nr 1606965
Product Documentation
Document preview: Dehnguard M TNC 275 FM TYPE 2 (1606965) — Specification sheet
