Product Description
Danfoss VL 2 two-way seated flanged control-valve body, OEM order code 065Z0381. VL2 PN6 DN65/63 flange. Nominal size DN 65, Kvs 63 m³/h, nominal pressure PN 6 (6 bar), valve stroke 20 mm. Equal percentage flow characteristic, control ratio 100:1. Body of Grey cast iron EN-GJL-250 (GG-25), cone Brass, stem Stainless steel. For heating and cooling circuits on district heating/cooling circulation water, media temperature -10 °C to 120 °C. The valve body is driven by a matched Danfoss electric actuator (AMV/AME series) sized to the 20 mm valve stroke. Data quoted verbatim from store.danfoss.com (code 065Z0381).
Technical Specifications
- Code number
- 065Z0381
- Type
- VL 2
- Product group
- Other valves
- Gross weight
- 18.2 Kilogram
- Net weight
- 14.2 Kilogram
- Volume
- 88.8 Liter
- Application
- Heating and cooling
- Application alternative VSP
- District heating
- Connection types
- Flange
- Control ratio
- 100:1
- Description
- VL2 PN6 DN65/63 flange
- Diameter [mm]
- 65 mm
- Differential pressure range [bar] [Max]
- 2.5 bar
- Flow characteristic
- Equal percentage
- Function
- Pressure relief
- Kvs values [m³/h]
- 63 m³/h
- Leakage through port max. [% Kvs]
- bubble tight design
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 120 °C
- Media temperature [°C] [Min]
- -10 °C
- Medium alternative
- Glycolic water up to 50%
- Mounting version
- Flow
- Number of ports
- 2
- Permissible media
- District heating/cooling circulation water
- Pressure nominal [bar]
- 6 bar
- Stroke [mm]
- 20 mm
- Stuffing box sealing material
- EPDM
- Valve body material
- Grey cast iron EN-GJL-250 (GG-25)
- Valve cone material
- Brass
- Valve stem material
- Stainless steel
- EAN
- 5710104008288
- HS code
- 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Size / Series
- Accessories
- Material
- Grey cast iron EN-GJL-250 (GG-25); cone Brass; stem Stainless steel
- Pressure Rating
- PN 6 (6 bar); max differential pressure 2.5 bar
- Temperature Range
- -10 °C to 120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Two-way seated valve body — requires a matched Danfoss electric actuator (AMV/AME series) sized to the 20 mm valve stroke. Confirm Kvs (63 m³/h), nominal size (DN 65) and pressure class (PN 6) against the circuit design before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss VL2 PN6 DN80/100 flange
065Z0382
Danfoss
Danfoss HRB 3 rotary 3-Way mixing valve body DN 20 Kvs 2.5 m³/h PN 10 Rp 3/4
065Z0397
Danfoss
Danfoss HRB 3 rotary 3-Way mixing valve body DN 15 Kvs 4 m³/h PN 10 Rp 1/2
065Z0398
Danfoss
Danfoss HRB 3 rotary 3-Way mixing valve body DN 15 Kvs 0.4 m³/h PN 10 Rp 1/2
065Z0399
Danfoss
Danfoss HRB 3 rotary 3-Way mixing valve body DN 15 Kvs 0.63 m³/h PN 10 Rp 1/2
065Z0400
Danfoss
Danfoss HRB 3 rotary 3-Way mixing valve body DN 15 Kvs 1 m³/h PN 10 Rp 1/2
065Z0401
Danfoss

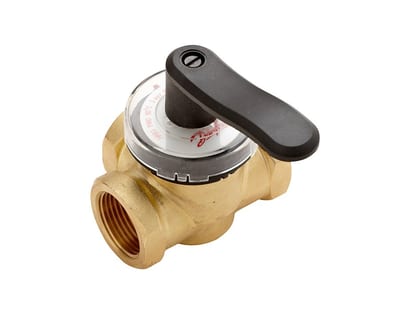

Danfoss HRB 3 rotary 3-Way mixing valve body DN 15 Kvs 1.63 m³/h PN 10 Rp 1/2
