Product Description
Danfoss VFM 2 two-way seated flanged control-valve body, OEM order code 065B3084. VFM 2 PN 25 DN125 Nominal size DN 125, Kvs 250 m³/h, nominal pressure PN 25 (25 bar). Motorised by a matched Danfoss AMV/AME electric actuator sized to the valve stroke. Net weight 56 Kilogram. Data quoted verbatim from store.danfoss.com (code 065B3084).
Technical Specifications
- Brand
- Danfoss
- Part number
- 065B3084
- Type
- VFM 2
- Product group
- Motorized control valves
- Valve function
- Two-way (2-port) seated flanged control-valve body
- Nominal size
- DN 125
- Kvs value
- 250 m³/h
- Nominal pressure
- PN 25 (25 bar)
- Connection
- Flange
- Net weight
- 56 Kilogram
- Gross weight
- 76 Kilogram
- EAN
- 5710104512426
- HS code
- 8481.80 (taps, cocks, valves for pipes)
- Cavitation factor 100%
- 0.24
- Cavitation factor 25%
- 0.4
- Cavitation factor 50%
- 0.36
- Cavitation factor 75%
- 0.35
- China RoHS compliance
- Out of scope
- Connection types
- Flange
- Diameter [mm]
- 125 mm
- EU RoHS compliance
- Out of scope
- Kvs values [m³/h]
- 250 m³/h
- Pressure class
- PN 25
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Valve size
- DN 125
Standards & Compliance
- Pressure Rating
- PN 25 (25 bar)
- HS Code
- 8481.80
Compatibility & Fitment
Two-way seated valve body — requires a matched Danfoss electric actuator (AMV/AME series) sized to the valve stroke. Confirm stroke, Kvs (250 m³/h), nominal size (DN 125) and pressure class (PN 25) against the circuit design before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss VFM 2 PN 25 2-Way Seated Flanged Control Valve DN 150, Kvs 400
065B3085
Danfoss
Danfoss VFM 2 PN 25 2-Way Seated Flanged Control Valve DN 200, Kvs 630
065B3086
Danfoss
Danfoss VF 3 PN 16 3-Way Seated Flanged Mixing Valve DN 100, Kvs 145
065B1685
Danfoss
Danfoss VF 3 PN 16 3-Way Seated Flanged Mixing Valve DN 125, Kvs 220
065B3125
Danfoss

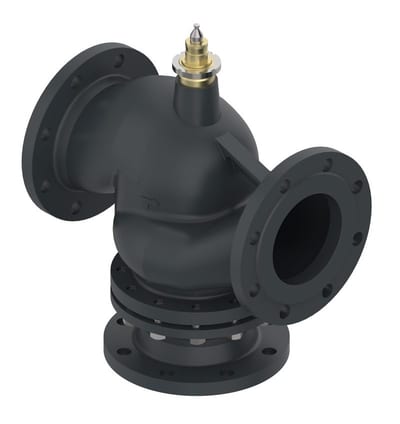

Danfoss VF 3 PN 16 3-Way Seated Flanged Mixing Valve DN 150, Kvs 320
065B3150
Danfoss

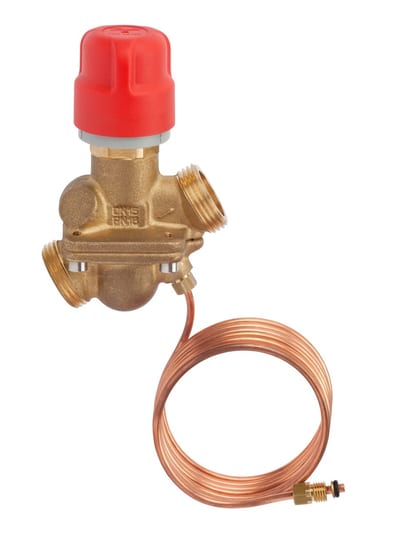

Danfoss AB-PM DN 10 differential pressure controller & flow limiter, Standard, external thread
