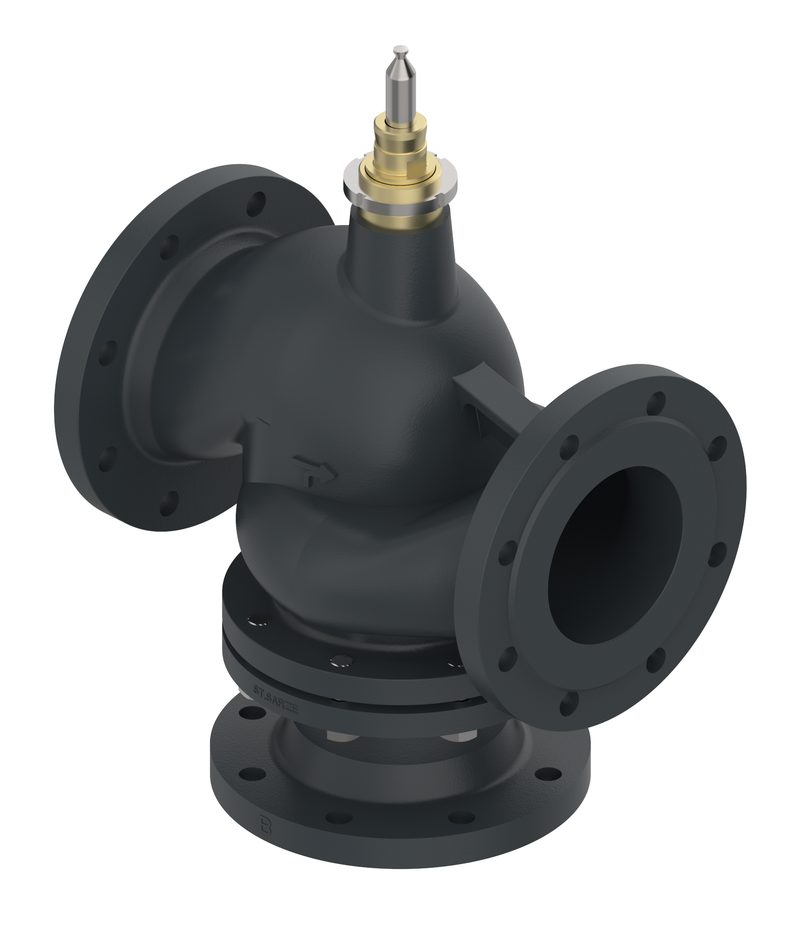

Danfoss VF 3 PN 16 3-Way Seated Flanged Mixing Valve DN 125, Kvs 220
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss VF 3 three-way seated flanged control-valve body, OEM order code 065B3125. VF 3 PN16 125/220 3-way seated flange Nominal size DN 125, Kvs 220 m³/h, nominal pressure PN 16 (16 bar), valve stroke 40 mm. Mixing valve (secondary pressure-relief function). Equal percentage flow characteristic, control ratio 100:1, seat leakage 0.05 % Kvs max; max closing Δp 3 bar mixing / 0.6 bar diverting. Materials: body Ductile cast iron EN-GJS-400-18-LT (GGG 40.3), cone GGG 40, stem Stainless steel, stuffing-box seal PFTE. For heating and cooling circuits on district heating/cooling circulation water (alt. glycolic water up to 50%), media temperature -10 °C to 200 °C. Motorised by a matched Danfoss AMV/AME electric actuator sized to the valve stroke. Net weight 59.1 Kilogram. Data quoted verbatim from store.danfoss.com (code 065B3125).
Technical Specifications
- Brand
- Danfoss
- Part number
- 065B3125
- Type
- VF 3
- Product group
- Other valves
- Valve function
- Three-way (3-port) seated flanged control-valve body
- Primary function
- Mixing valve
- Secondary function
- Pressure relief
- Application
- Heating and cooling
- Permissible media
- District heating/cooling circulation water
- Alternative medium
- Glycolic water up to 50%
- Nominal size
- DN 125
- Kvs value
- 220 m³/h
- Nominal pressure
- PN 16 (16 bar)
- Max. closing differential pressure (mixing)
- 3 bar
- Max. closing differential pressure (diverting)
- 0.6 bar
- Stroke
- 40 mm
- Connection
- Flange
- Flow characteristic
- Equal percentage
- Control ratio
- 100:1
- Max. leakage through port
- 0.05 % Kvs
- Valve body material
- Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
- Valve cone material
- GGG 40
- Valve stem material
- Stainless steel
- Stuffing-box sealing material
- PFTE
- Media temperature
- -10 °C to 200 °C
- Net weight
- 59.1 Kilogram
- Gross weight
- 64.6 Kilogram
- EAN
- 5702421509647
- HS code
- 8481.80 (taps, cocks, valves for pipes)
Standards & Compliance
- Material
- Ductile cast iron EN-GJS-400-18-LT (GGG 40.3); cone GGG 40; stem Stainless steel
- Pressure Rating
- PN 16 (16 bar)
- Temperature Range
- -10 °C to 200 °C
- HS Code
- 8481.80
Compatibility & Fitment
Three-way seated valve body — requires a matched Danfoss electric actuator (AMV/AME series) sized to the valve stroke (40 mm). Confirm stroke (40 mm), Kvs (220 m³/h), nominal size (DN 125) and pressure class (PN 16) against the circuit design before ordering.
