Danfoss VFH2-WG DN 125 PN 16 manual butterfly valve — wafer, worm gear
Pricing
Request a quote
We reply within 24 hours
Product Description

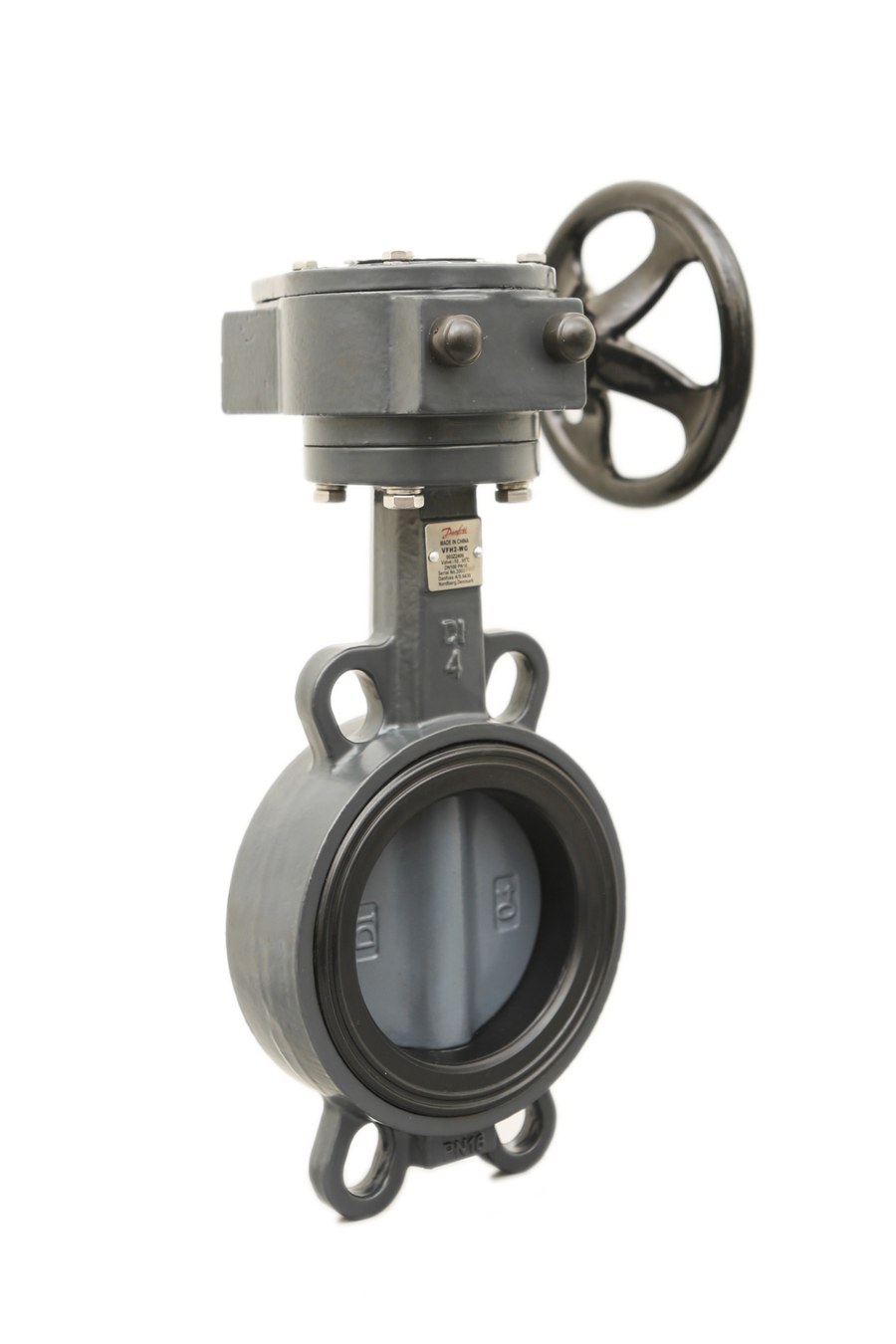

Danfoss VFH2-WG DN 125 PN 16 — centric-disc butterfly valve for isolation and control in hydronic heating and cooling circuits. Wafer connection. Kvs 874 m³/h. Media temperature -10 °C to 95 °C. Maximum differential pressure 16 bar. Ductile iron (DIN GGG40) body, nylon coated disc, EPDM liner. Manual worm-gear operator with position indicator. Leakage rate A (bubble-tight). OEM designation "VFH2 -WG DN 125, Butterfly valve, Manual - Worn Gear, PN16". OEM P/N 003Z2407. EAN 5710104522043. Technical data quoted verbatim from store.danfoss.com (code 003Z2407).
Technical Specifications
- Code number
- 003Z2407
- Type
- VFH2-WG
- Product group
- Butterfly valves
- Description
- VFH2 -WG DN 125, Butterfly valve, Manual - Worn Gear, PN16
- Valve type
- Manual butterfly valve
- Valve size
- DN 125
- Connection types
- Wafer
- Operation type
- Worm Gear
- Kvs value [m³/h]
- 874 m³/h
- Pressure class
- PN 16
- Max. differential pressure
- 16 bar
- Leakage rate
- Leakage rate A
- Media temperature range
- -10 °C to 95 °C
- Medium
- Glycolic water up to 50%
- Application
- Heating and cooling
- Valve body material
- Ductile iron (DIN GGG40)
- Valve disc material
- Nylon coated
- Rotation angle
- 90 °
- Operating torque
- 100 N-m
- Position indicator
- Yes
- Contains batteries
- No
- EU RoHS compliance
- Out of scope
- China RoHS compliance
- Out of scope
- Net weight
- 11.61 Kilogram
- Gross weight
- 11.61 Kilogram
- Volume
- 23.764 Liter
- EAN
- 5710104522043
- HS code
- 8481.80
Standards & Compliance
- Size / Series
- VFH2-WG
- Material
- Valve body Ductile iron (DIN GGG40), disc Nylon coated
- Pressure Rating
- PN 16
- Temperature Range
- -10 °C to 95 °C
- HS Code
- 8481.80
Compatibility & Fitment
VFH2 is a wafer/lug centric-disc butterfly valve series; select by pipe size (DN 125) and pressure class (PN 16). WAO = motorized on/off, WAM = motorized modulating 0(2)-10 V, WH = manual hand lever, WG = manual worm gear. This code is hand-operated. Confirm DN, connection and drive against the datasheet before ordering.
