Danfoss VFH2-WG DN 500 PN 16 manual butterfly valve — lug, worm gear
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss VFH2-WG DN 500 PN 16 — centric-disc butterfly valve for isolation and control in hydronic heating and cooling circuits. Lug connection. Kvs 23915 m³/h. Media temperature -10 °C to 95 °C. Maximum differential pressure 16 bar. Ductile iron (DIN GGG40) body, stainless steel disc, EPDM liner. Manual worm-gear operator with position indicator. Leakage rate A (bubble-tight). OEM designation "VFH2 -LG DN 500, Butterfly valve, Manual - Worn Gear, PN16". OEM P/N 003Z2415. EAN 5710104522128. Technical data quoted verbatim from store.danfoss.com (code 003Z2415).
Technical Specifications
- Code number
- 003Z2415
- Type
- VFH2-WG
- Product group
- Butterfly valves
- Description
- VFH2 -LG DN 500, Butterfly valve, Manual - Worn Gear, PN16
- Valve type
- Manual butterfly valve
- Valve size
- DN 500
- Connection types
- Lug
- Operation type
- Worm Gear
- Kvs value [m³/h]
- 23915 m³/h
- Pressure class
- PN 16
- Max. differential pressure
- 16 bar
- Leakage rate
- Leakage rate A
- Media temperature range
- -10 °C to 95 °C
- Medium
- Glycolic water up to 50%
- Application
- Heating and cooling
- Valve body material
- Ductile iron (DIN GGG40)
- Valve disc material
- Stainless Steel
- Rotation angle
- 90 °
- Operating torque
- 1600 N-m
- Position indicator
- Yes
- Contains batteries
- No
- EU RoHS compliance
- Out of scope
- China RoHS compliance
- Out of scope
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 139 Kilogram
- Gross weight
- 139 Kilogram
- Volume
- 495.444 Liter
- EAN
- 5710104522128
- HS code
- 8481.80
Standards & Compliance
- Size / Series
- VFH2-WG
- Material
- Valve body Ductile iron (DIN GGG40), disc Stainless Steel
- Pressure Rating
- PN 16
- Temperature Range
- -10 °C to 95 °C
- HS Code
- 8481.80
Compatibility & Fitment
VFH2 is a wafer/lug centric-disc butterfly valve series; select by pipe size (DN 500) and pressure class (PN 16). WAO = motorized on/off, WAM = motorized modulating 0(2)-10 V, WH = manual hand lever, WG = manual worm gear. This code is hand-operated. Confirm DN, connection and drive against the datasheet before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss VFH2-WG DN 600 PN 16 manual butterfly valve — wafer, worm gear
003Z2416
Danfoss
Danfoss VFH2-WAO PN 16 motorized butterfly valve — on/off actuator (003Z2448)
Danfoss
Danfoss VFH2-WAM PN 16 motorized butterfly valve — modulating actuator (003Z2449)
Danfoss
Danfoss VFH2-WAO PN 16 motorized butterfly valve — on/off actuator (003Z2450)
Danfoss
Danfoss VFH2-WAO PN 16 motorized butterfly valve — on/off actuator (003Z2454)
Danfoss
Danfoss VFH2-WAM PN 16 motorized butterfly valve — modulating actuator (003Z2455)
Danfoss
Danfoss VFH2-LAO DN 50 PN 16 motorized butterfly valve — lug, on/off actuator, 220 V AC
003Z6366
Danfoss

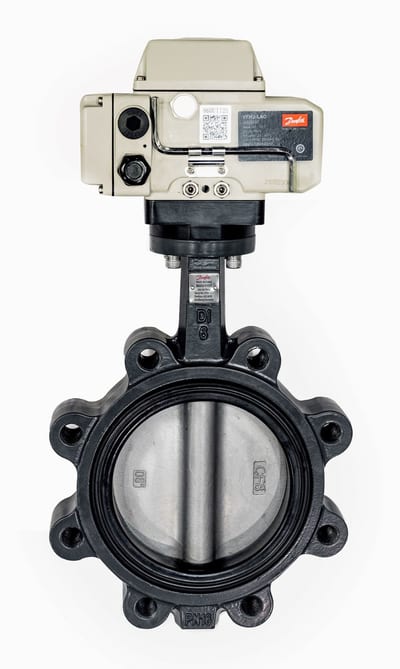

Danfoss VFH2-LAM DN 50 PN 16 motorized butterfly valve — lug, modulating actuator (2-10 V), 220 V AC
