Product Description

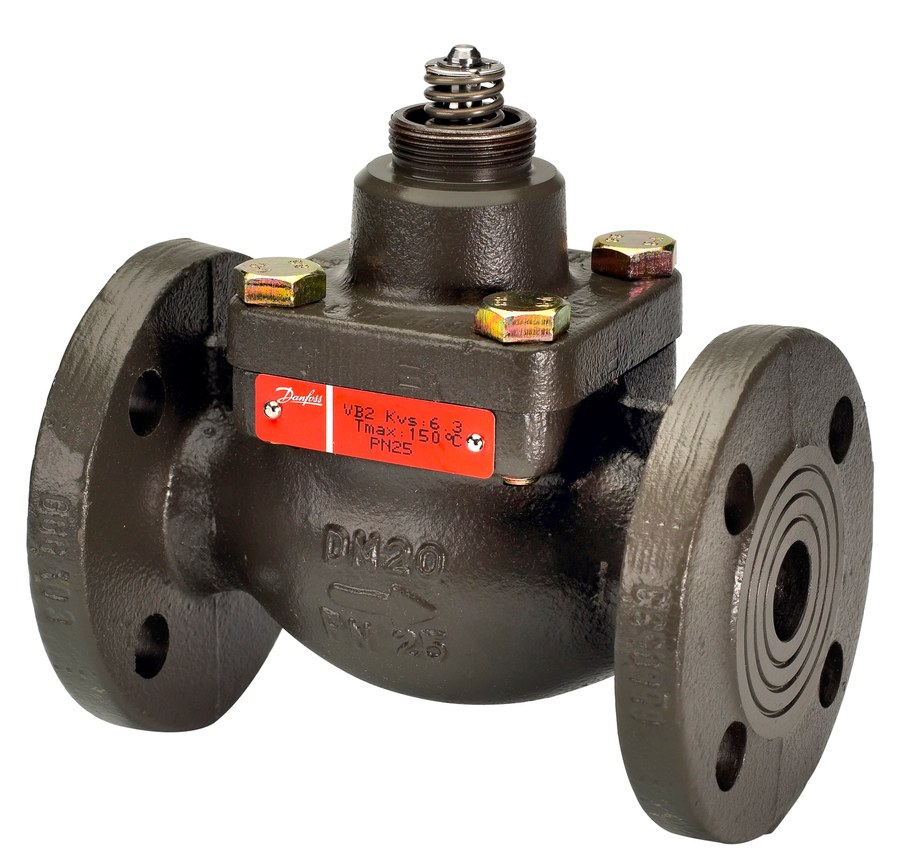

Danfoss VB 2 2-way seated control-valve body (OEM designation "VB 2 PN25 15/2,5 2-way seated flange"). A flanged globe-type valve body for use with a Danfoss AMV/AME electric linear actuator on District heating/cooling circulation water heating and district-heating circuits — the actuator is ordered separately and drives the 5 mm stroke spindle. Valve size DN 15; PN 25; Kvs 2.5 m³/h m³/h; Flange connection; Split flow characteristic; control ratio 50:1; maximum differential pressure 16 bar; spindle Normally open. Body Ductile cast iron EN-GJS-400-18-LT (GGG 40.3); cone Stainless steel; seat Stainless steel; stuffing-box seal EPDM; seat leakage ≤ 0.05 % Kvs. Media District heating/cooling circulation water (Glycolic water up to 30%), 2 °C to 150 °C. OEM P/N 065B2055. EAN 5702421508428. Technical data quoted verbatim from store.danfoss.com (code 065B2055).
Technical Specifications
- Code number
- 065B2055
- Type
- VB 2
- Product group
- Motorized control valves
- Gross weight
- 3.926 Kilogram
- Net weight
- 3.926 Kilogram
- Volume
- 5.054 Liter
- Application
- District Heating
- Application alternative VSP
- Heating
- Connection types
- Flange
- Control ratio
- 50:1
- Description
- VB 2 PN25 15/2,5 2-way seated flange
- Diameter [mm]
- 15 mm
- Differential pressure range [bar] [Max]
- 16 bar
- Flow characteristic
- Split
- Function
- Pressure relief
- Kvs values [m³/h]
- 2.5 m³/h
- Leakage through port max. [% Kvs]
- 0.05
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 150 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Number of ports
- 2
- Permissible media
- District heating/cooling circulation water
- PN alternative VSP
- 16
- Pressure class
- PN 25
- Pressure nominal [bar]
- 25 bar
- Spindle position
- Normally open
- Stroke [mm]
- 5 mm
- Stuffing box sealing material
- EPDM
- Valve body material
- Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
- Valve cone material
- Stainless steel
- Valve seat material
- Stainless steel
- Valve size
- DN 15
- Valve stem material
- Stainless steel
- EAN
- 5702421508428
- HS code
- 8481.80
Standards & Compliance
- Size / Series
- VB 2
- Material
- Ductile cast iron EN-GJS-400-18-LT (GGG 40.3)
- Thread Standard
- Flange
- Pressure Rating
- PN 25
- Temperature Range
- 2 °C to 150 °C
- HS Code
- 8481.80
Compatibility & Fitment
Order a Danfoss AMV/AME linear actuator (5 mm stroke) to drive this VB 2 body — the body ships without actuator. Flanged body; mate to PN-matched counter-flanges. Confirm DN (DN 15), Kvs (2.5 m³/h), PN (PN 25) and the actuator stroke/force against the VM 2 / VB 2 data sheet before ordering. The replaceable valve insert (065B2033-2041) and stuffing-box service kit (065B2070) are the field-serviceable parts.
