Product Description

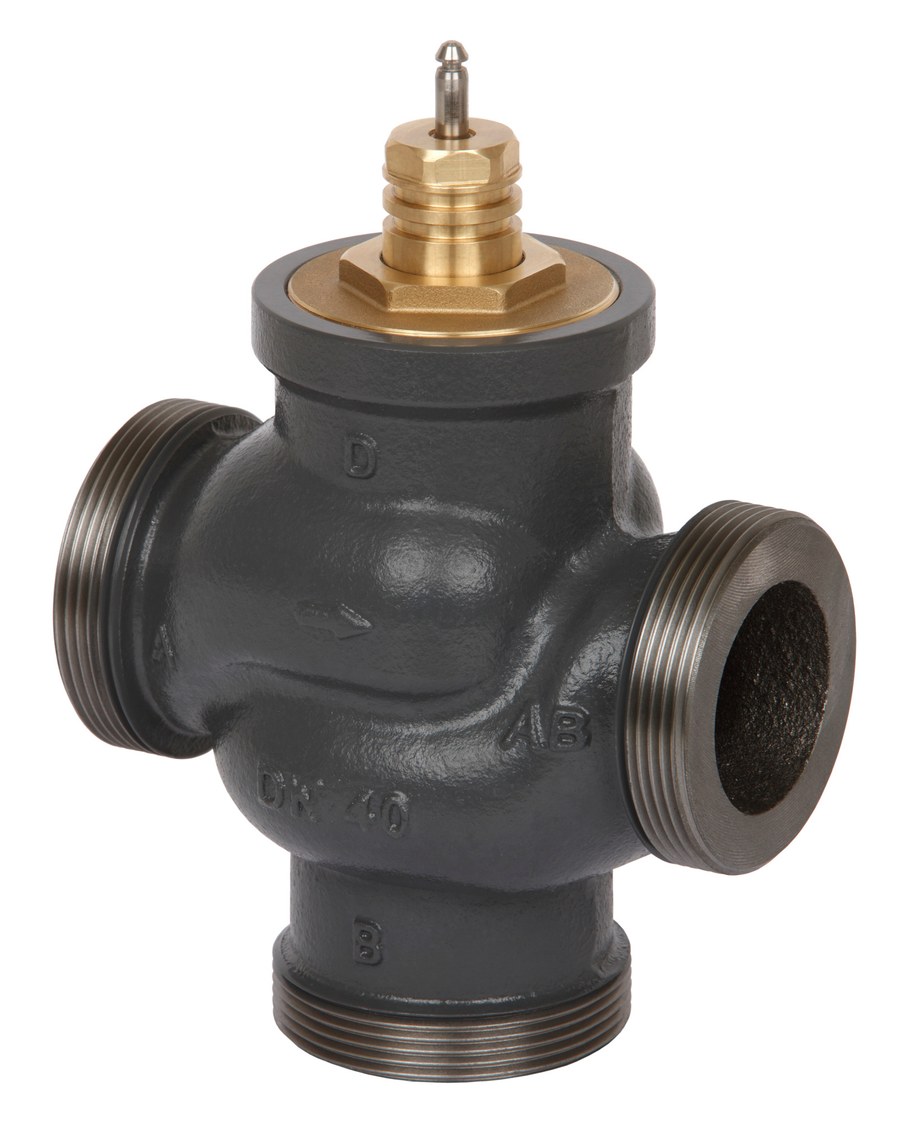

Danfoss VRG 3 3-way seated mixing/diverting control-valve body (OEM designation "VRG3 PN16 DN15/0,63 ext.thread"). A external-thread globe-type valve body for motorised control of District heating/cooling circulation water on heating, cooling and district-heating circuits — driven by a separately-ordered Danfoss AMV/AME electric actuator for constant-flow mixing or diverting service. Valve size DN 15; PN 16; Kvs 0.63 m³/h; 3 ports; External Thread connection G 1; Equal percentage flow characteristic; control ratio 30:1; Mixing valve; body Grey cast iron EN-GJL-250 (GG-25); cone Brass; stem Stainless steel; stuffing-box seal EPDM; seat leakage bubble tight design % Kvs. Media District heating/cooling circulation water (Glycolic water up to 50%), -10 °C to 130 °C. OEM P/N 065Z0111. EAN 5702421559802. Technical data quoted verbatim from store.danfoss.com (code 065Z0111).
Technical Specifications
- Code number
- 065Z0111
- Type
- VRG 3
- Product group
- Other valves
- Gross weight
- 0.821 Kilogram
- Net weight
- 0.748 Kilogram
- Volume
- 1.504 Liter
- Application
- Heating and cooling
- Application alternative VSP
- District heating
- Cavitation factor
- 0.4
- Closing differential pressure (diverting) [bar] [Max]
- 1 bar
- Closing differential pressure (mixing) [bar] [Max]
- 4 bar
- Connection size
- G 1
- Connection types
- External Thread
- Control ratio
- 30:1
- Description
- VRG3 PN16 DN15/0,63 ext.thread
- Diameter [mm]
- 15 mm
- Flow characteristic
- Equal percentage
- Function
- Mixing valve
- Kvs values [m³/h]
- 0.63 m³/h
- Leakage through port (B-AB) max. [% Kvs]
- 1.0
- Leakage through port max. [% Kvs]
- bubble tight design
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 130 °C
- Media temperature [°C] [Min]
- -10 °C
- Medium alternative
- Glycolic water up to 50%
- Mounting version
- Flow
- Number of ports
- 3
- Permissible media
- District heating/cooling circulation water
- PN alternative VSP
- 10
- Pressure nominal [bar]
- 16 bar
- Stroke [mm]
- 10 mm
- Stuffing box sealing material
- EPDM
- Valve body material
- Grey cast iron EN-GJL-250 (GG-25)
- Valve cone material
- Brass
- Valve stem material
- Stainless steel
- EAN
- 5702421559802
- HS code
- 8481.80
Standards & Compliance
- Size / Series
- VRG 3
- Material
- Grey cast iron EN-GJL-250 (GG-25)
- Thread Standard
- External Thread G 1
- Pressure Rating
- PN 16
- Temperature Range
- -10 °C to 130 °C
- HS Code
- 8481.80
Compatibility & Fitment
Order a Danfoss AMV/AME linear actuator (10 mm stroke) to drive this VRG 3 body — the body ships without actuator. Three-port valve for mixing (two inlets, one outlet) or diverting service; confirm the flow/mixing mounting orientation. Match DN (DN 15), Kvs (0.63), PN (PN 16) and the external-thread connection (G 1) against the VRG/VRB data sheet before ordering; external-thread and internal-thread bodies of the same DN are not interchangeable.
