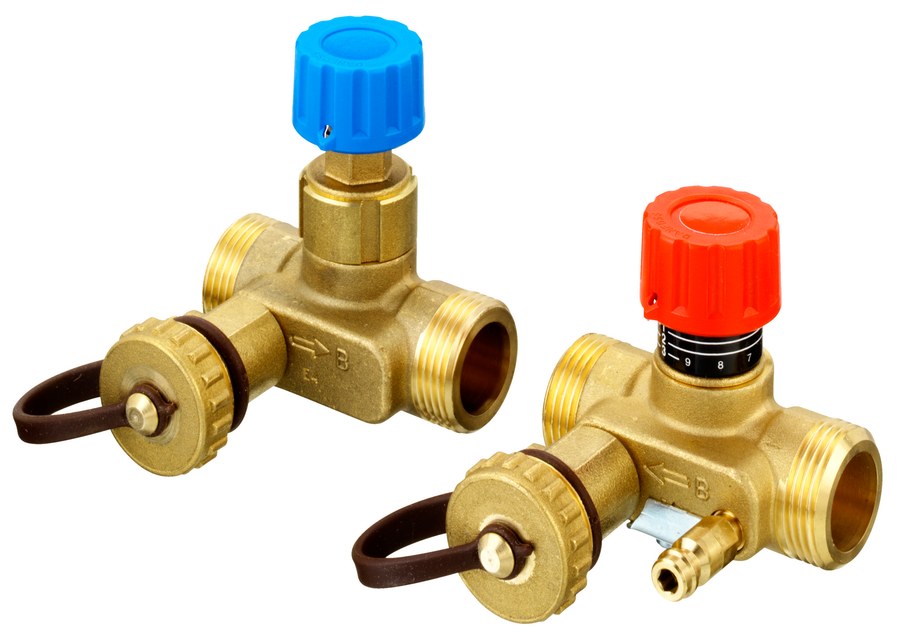

Danfoss USV-M and USV-I Set DN 32 PN 16 manual static balancing valve, internal thread

Danfoss USV-M and USV-I Set DN 32 PN 16 — manual (static) balancing valve for the risers and branches of hydronic heating and cooling systems; the matched pair of a USV-M measuring valve and a USV-I presetting/isolating valve, supplied together for two-valve balancing of a heating or cooling circuit. Presetting fixes the branch flow so design flow is distributed correctly across the network. Kvs 6.3 m³/h. internal thread connection (Internal thread ISO 7/1; Rp 1 ¼). PN 16. OEM designation "USV-M and USV-I Set, DN 32, Internal thread ISO 7/1; Rp 1 ¼". OEM P/N 003Z2144. EAN 5702420068152. Technical data quoted verbatim from store.danfoss.com (code 003Z2144).

Code number

003Z2144

Type

USV-M and USV-I Set

Product group

Manual balancing

Description

USV-M and USV-I Set, DN 32, Internal thread ISO 7/1; Rp 1 ¼

Valve size

DN 32

Connection

Internal thread ISO 7/1; Rp 1 ¼

Kvs value

6.3 m³/h

Pressure class

PN 16

Contains batteries

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Net weight

2.665 kg

Gross weight

2.665 kg

Volume

3.521 L

EAN

5702420068152

HS code

8481.80

Connection types

Internal thread ISO 7/1

Kvs values [m³/h]

6.3 m³/h

Size / Series

USV-M and USV-I Set

Thread Standard

ISO 7/1

Pressure Rating

PN 16

HS Code

8481.80
