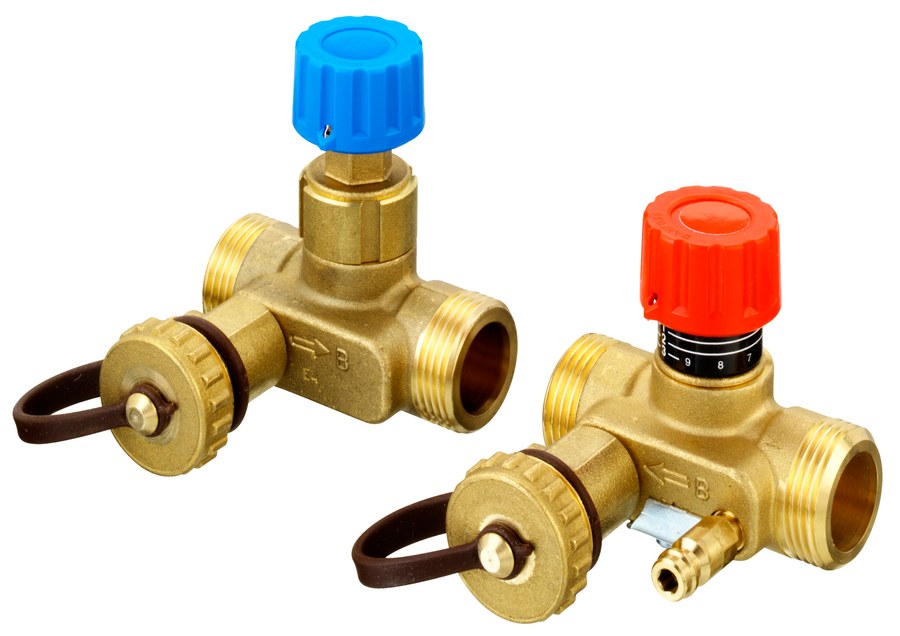

Danfoss USV-M and USV-I Set DN 25 PN 16 manual static balancing valve, external thread
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss USV-M and USV-I Set DN 25 PN 16 — manual (static) balancing valve for the risers and branches of hydronic heating and cooling systems; the matched pair of a USV-M measuring valve and a USV-I presetting/isolating valve, supplied together for two-valve balancing of a heating or cooling circuit. Presetting fixes the branch flow so design flow is distributed correctly across the network. Kvs 4 m³/h. external thread connection (External thread ISO 228/1; G 1 ¼A). PN 16. OEM designation "USV-M and USV-I Set, DN 25, External thread ISO 228/1; G 1 ¼A". OEM P/N 003Z2148. EAN 5702420083643. Technical data quoted verbatim from store.danfoss.com (code 003Z2148).
Technical Specifications
- Code number
- 003Z2148
- Type
- USV-M and USV-I Set
- Product group
- Manual balancing
- Description
- USV-M and USV-I Set, DN 25, External thread ISO 228/1; G 1 ¼A
- Valve size
- DN 25
- Connection
- External thread ISO 228/1; G 1 ¼A
- Kvs value
- 4 m³/h
- Pressure class
- PN 16
- Contains batteries
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 1.648 kg
- Gross weight
- 1.648 kg
- Volume
- 1.809 L
- EAN
- 5702420083643
- HS code
- 8481.80
- Connection types
- External thread ISO 228/1
- Kvs values [m³/h]
- 4 m³/h
Standards & Compliance
- Size / Series
- USV-M and USV-I Set
- Thread Standard
- ISO 228/1
- Pressure Rating
- PN 16
- HS Code
- 8481.80
Compatibility & Fitment
Supplied as the two-valve USV set (USV-M measuring valve + USV-I isolating valve) for one branch. Select by pipe size (DN 25) and network pressure class (PN 16); use the Kvs with the branch design flow to set the required presetting. The USV-M can be upgraded in situ to a differential-pressure (PV) controller. Confirm code and connection against the datasheet before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss USV-M and USV-I Set DN 32 PN 16 manual static balancing valve, external thread
003Z2149
Danfoss
Danfoss USV-M and USV-I Set DN 40 PN 16 manual static balancing valve, external thread
003Z2150
Danfoss
Danfoss USV-I DN 50 PN 16 manual static balancing valve, internal thread
003Z2151
Danfoss
Danfoss USV-I DN 50 PN 16 manual static balancing valve, external thread
003Z2152
Danfoss
Danfoss USV-M DN 50 PN 16 manual static balancing valve, internal thread
003Z2153
Danfoss
Danfoss USV-M DN 50 PN 16 manual static balancing valve, external thread
003Z2154
Danfoss
Danfoss USV-M and USV-I Set DN 50 PN 16 manual static balancing valve, internal thread
003Z2155
Danfoss
Danfoss USV-M and USV-I Set DN 50 PN 16 manual static balancing valve, external thread
003Z2160
Technical guides
- Balancing Valve Finder — Danfoss AB-QM, ASV-PV / ASV-M, USV-I / USV-M, MSV-BD / MSV-F2, IMI TA STAD / STAF, Frese by DN and Type
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 003Z2148?
- 003Z2148 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 003Z2148.
- What is the HS code for 003Z2148?
- The customs tariff (HS) code for 003Z2148 is 8481.80.
- Who manufactures 003Z2148?
- 003Z2148 is a Danfoss product in the HVAC & Refrigeration range.
- Is a datasheet available for 003Z2148?
- Yes — the 003Z2148 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 003Z2148?
- The minimum order quantity is 1.
- Is 003Z2148 available?
- Yes — 003Z2148 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
