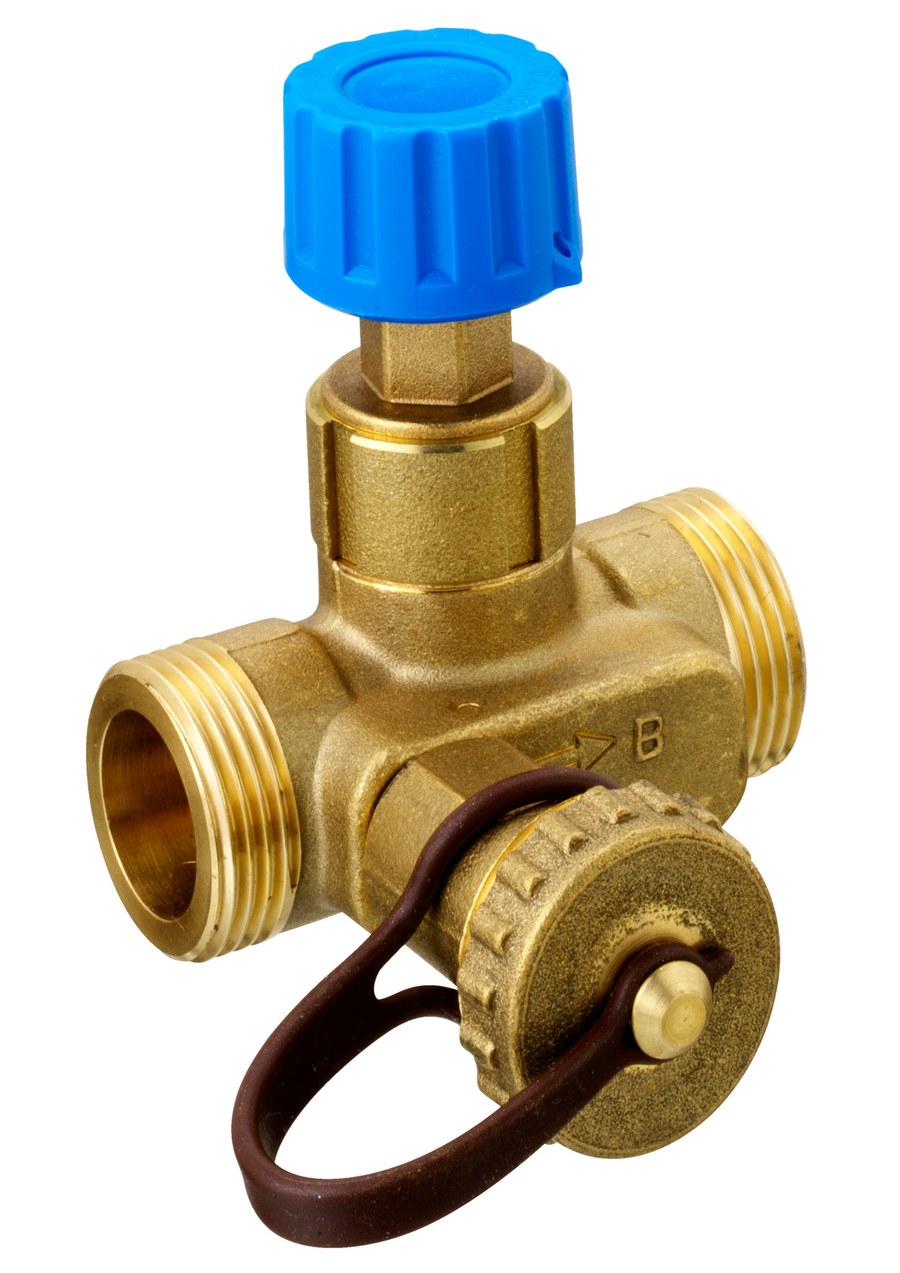

Danfoss USV-M DN 40 PN 16 manual static balancing valve, external thread

Danfoss USV-M DN 40 PN 16 — manual (static) balancing valve for the risers and branches of hydronic heating and cooling systems; the measuring partner valve of the USV pair — carries the measuring/flow-limitation function and is upgradeable in situ to a differential-pressure (PV) controller. Presetting fixes the branch flow so design flow is distributed correctly across the network. Kvs 10 m³/h. Maximum differential pressure 80 kPa. Media temperature -20 to 120 °C. external thread connection (External thread ISO 228/1, G 1 ¾A). Brass body, PN 16. OEM designation "USV-M, DN 40, G 1 ¾A; External thread ISO 228/1". OEM P/N 003Z2130. EAN 5702420083551. Technical data quoted verbatim from store.danfoss.com (code 003Z2130).

Code number

003Z2130

Type

USV-M

Product group

Manual balancing

Description

USV-M, DN 40, G 1 ¾A; External thread ISO 228/1

Valve size

DN 40

Connection

External thread ISO 228/1, G 1 ¾A

Valve body material

Brass

Kvs value

10 m³/h

Pressure class

PN 16

Max. differential pressure

80 kPa

Media temperature range

-20 to 120 °C

Setting scale

No

Shut-off function

Yes

Drain function

Yes

Flow limitation

Yes

Upgradeability

Yes

Contains batteries

No

EU RoHS compliance

Out of scope

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Net weight

1.61 kg

Gross weight

1.61 kg

Volume

2.055 L

EAN

5702420083551

HS code

8481.80

Size / Series

USV-M

Material

Valve body Brass

Thread Standard

ISO 228/1, G 1 ¾A

Pressure Rating

PN 16

Temperature Range

-20 to 120 °C

HS Code

8481.80
