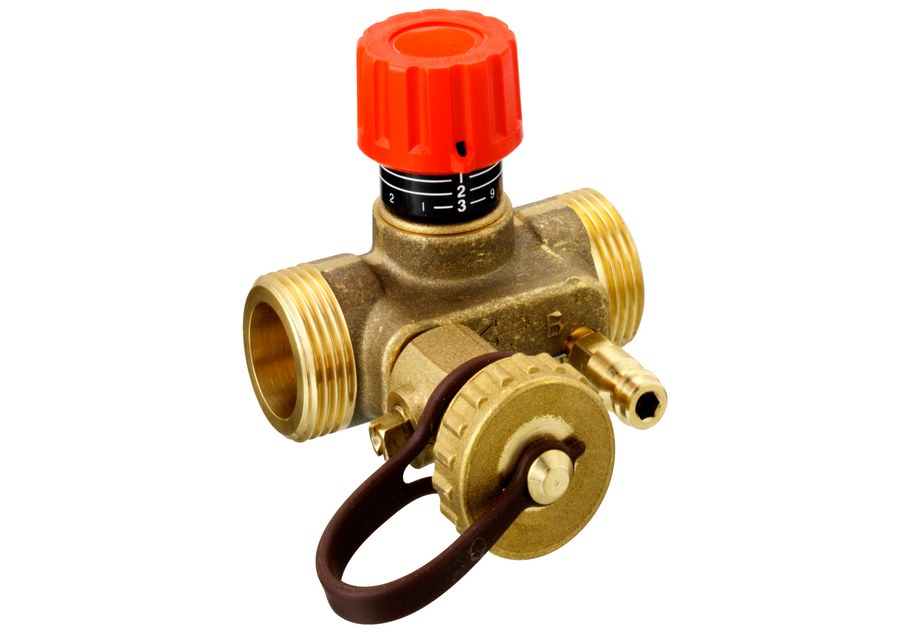

Danfoss USV-I DN 15 PN 16 manual static balancing valve, external thread
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss USV-I DN 15 PN 16 — manual (static) balancing valve for the risers and branches of hydronic heating and cooling systems; the presetting and isolating partner valve — sets the design flow (setting scale), shuts off and drains the circuit. Presetting fixes the branch flow so design flow is distributed correctly across the network. Kvs 1.6 m³/h. Maximum differential pressure 150 kPa. Media temperature -20 to 120 °C. external thread connection (External thread ISO 228/1, G ¾A). Brass body, PN 16. OEM designation "USV-I, DN 15, G ¾A; External thread ISO 228/1". OEM P/N 003Z2136. EAN 5702421528709. Technical data quoted verbatim from store.danfoss.com (code 003Z2136).
Technical Specifications
- Code number
- 003Z2136
- Type
- USV-I
- Product group
- Manual balancing
- Description
- USV-I, DN 15, G ¾A; External thread ISO 228/1
- Valve size
- DN 15
- Connection
- External thread ISO 228/1, G ¾A
- Valve body material
- Brass
- Kvs value
- 1.6 m³/h
- Pressure class
- PN 16
- Max. differential pressure
- 150 kPa
- Media temperature range
- -20 to 120 °C
- Setting scale
- Yes
- Shut-off function
- Yes
- Drain function
- Yes
- Flow limitation
- Yes
- Contains batteries
- No
- EU RoHS compliance
- Out of scope
- China RoHS compliance
- Out of scope
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.34 kg
- Gross weight
- 0.34 kg
- Volume
- 0.464 L
- EAN
- 5702421528709
- HS code
- 8481.80
Standards & Compliance
- Size / Series
- USV-I
- Material
- Valve body Brass
- Thread Standard
- ISO 228/1, G ¾A
- Pressure Rating
- PN 16
- Temperature Range
- -20 to 120 °C
- HS Code
- 8481.80
Compatibility & Fitment
USV-I is the presetting/isolating partner of the USV pair — fit it with a USV-M measuring valve on the branch. Read the setting scale to fix the design flow; the valve also shuts off and drains the circuit. Select by pipe size (DN 15) and pressure class (PN 16). Confirm code and connection before ordering.
