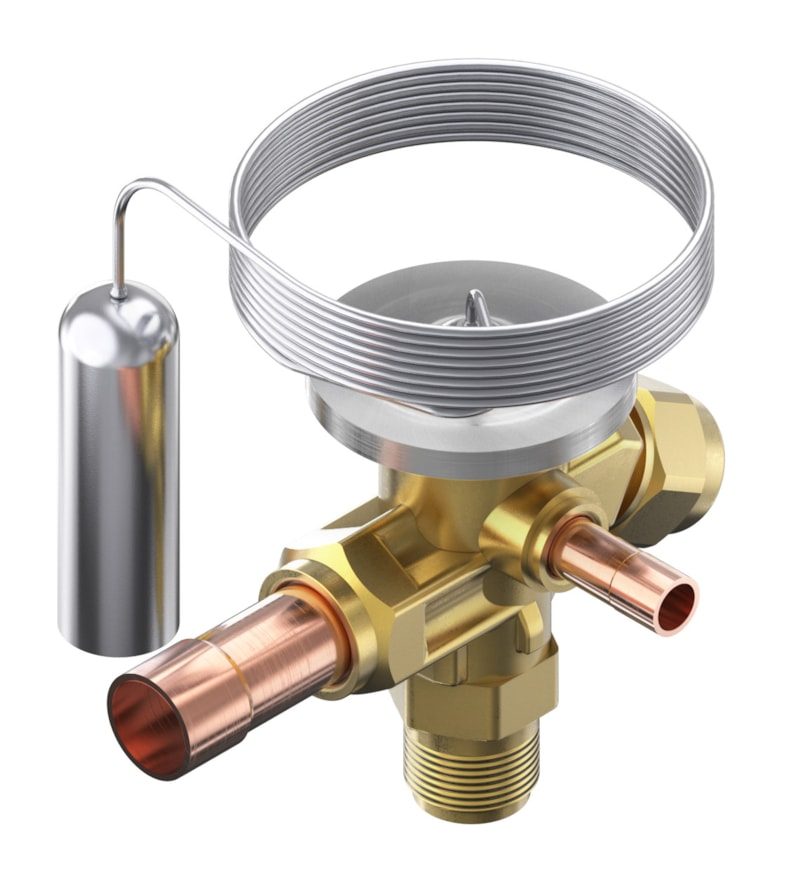

Danfoss TE 2 thermostatic expansion valve, R448A/R449A, 3/8 in flare × 12 mm solder, externally equalized, evaporating -60 to -25 °C
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TE 2 thermostatic expansion valve for R448A/R449A. Externally equalized (6 mm solder equalizer) with adjustable 4 °C static superheat, 3/8 in flare inlet and 12 mm solder outlet, evaporating range -60 to -25 °C. Maximum operating pressure MOP 35. Interchangeable orifice assembly (ordered separately).
Technical Specifications
- Type
- Thermostatic expansion valve
- Series
- TE 2 (T2 / TE 2 program)
- Refrigerant
- R448A/R449A
- Inlet
- 3/8 in flare
- Outlet
- 12 mm solder
- Pressure equalization
- Externally equalized
- Equalization connection
- 6 mm solder
- MOP
- MOP 35 (limited at -20 °C)
- Evaporating temperature range
- -60 to -25 °C
- Static superheat
- 4 °C (adjustable)
- Capillary tube
- 1500 mm
- Max working pressure
- 34 bar (500 psig)
- Body/connection material
- Brass
- Orifice
- Replaceable (ordered separately)
- Net weight
- 0.279 kg
- Gross weight
- 0.302 kg
- EAN
- 5702428537582
- MPN
- 068Z3672
- Product group
- Expansion valves
- Approval
- EAC
- Body material
- Brass
- Capillary tube length [in]
- 59 in
- Capillary tube length [mm]
- 1500 mm
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection Code
- (3011:X:10; 3001:X:12)
- Connection material
- Brass
- Direction
- Angleway
- Equalization connection type
- Solder
- Equalization size [mm]
- 6 mm
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction
- Single-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 2
- Inlet connection type
- Flare
- Inlet size [in]
- 3/8 in
- Max. Working Pressure [bar]
- 34 bar
- Max. Working Pressure [psig]
- 500 psig
- MOP Point [psig]
- MOP 35
- MOP Point [°C]
- -20 °C
- MOP Point [°F]
- -5 °F
- Outlet connection type
- Solder
- Outlet size [mm]
- 12 mm
- Parts included
- Bulb strap
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R448A
- Static Superheat (SS) [°C]
- 4 °C
- Static Superheat (SS) [°F]
- 7.2 °F
- Superheat setting
- Adjustable
- Temperature range [°C] [max]
- -25 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- -15 °F
- Temperature range [°F] [min]
- -75 °F
Standards & Compliance
- Classification / Approval
- UL, EAC, PED 2014/68/EU Art. 4 par. 3, EN 12178, EN 12284
- HS Code
- 8481.80
Compatibility & Fitment
Refrigerant compatibility per Danfoss datasheet. Verify against your system specification.
Product Documentation
More from Danfoss
Danfoss
Danfoss T 2 thermostatic expansion valve, R448A/R449A, 3/8 in flare × 1/2 in flare, internally equalized, evaporating -60 to -25 °C
068Z3735
Danfoss

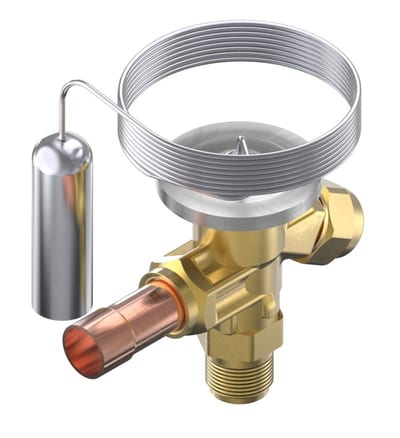

Danfoss T 2 thermostatic expansion valve, R452A, 3/8 in flare × 1/2 in solder, internally equalized, evaporating -40 to +10 °C
068Z3810
Danfoss

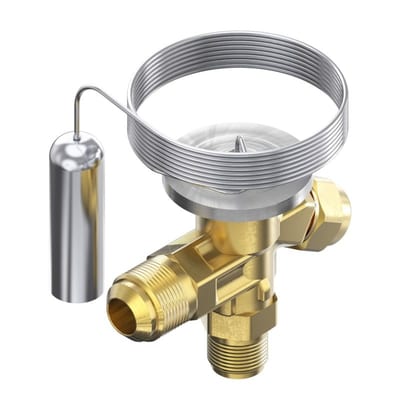

Danfoss T 2 thermostatic expansion valve, R22/R407C, 3/8 in flare × 1/2 in flare, internally equalized, evaporating -60 to -25 °C
068Z3228
Danfoss

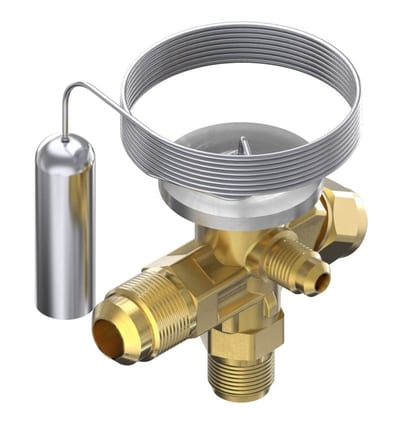

Danfoss TE 2 thermostatic expansion valve, R22/R407C, 3/8 in flare × 1/2 in flare, externally equalized, evaporating -60 to -25 °C
068Z3229
Danfoss
Danfoss T 2 thermostatic expansion valve, R22/R407C, 3/8 in flare × 1/2 in solder, internally equalized, evaporating -40 to 10 °C (code 068Z3281)
Danfoss

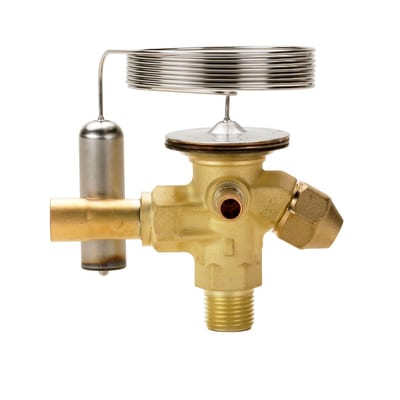

Danfoss TE 2 thermostatic expansion valve, R22/R407C, 3/8 in flare × 1/2 in solder, externally equalized, evaporating -40 to 10 °C (code 068Z3284)
