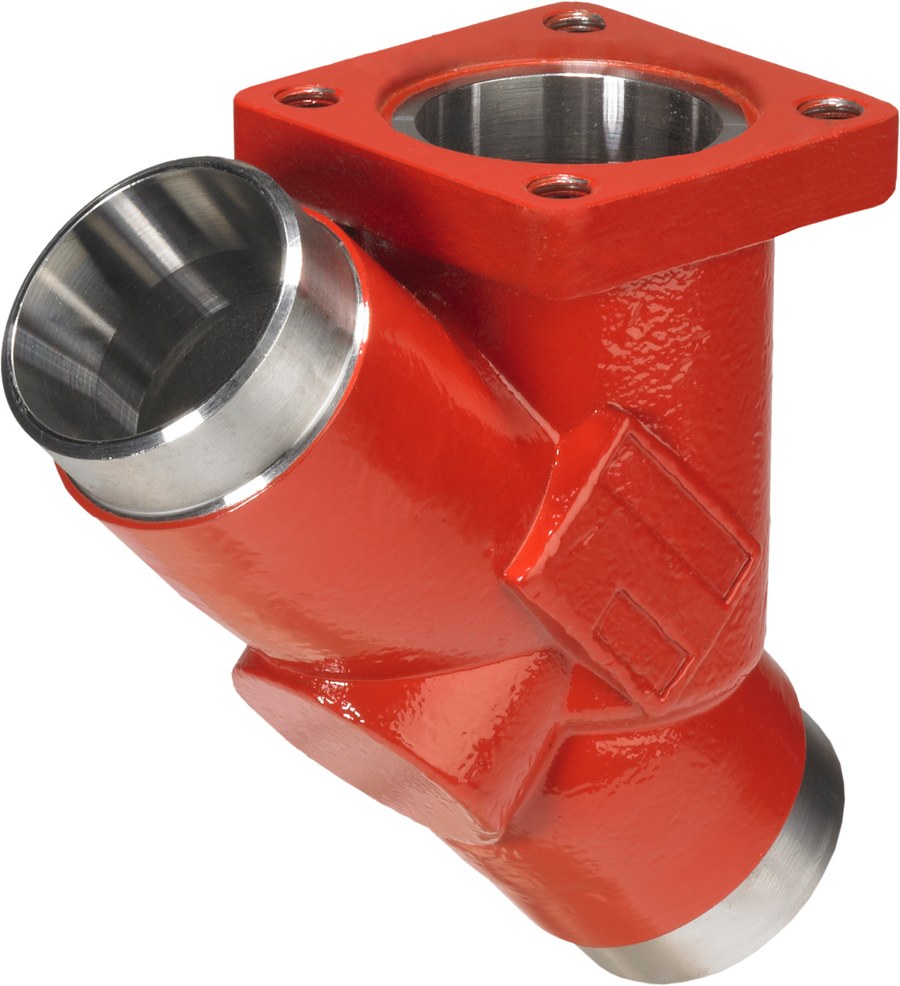

Danfoss SVL Flexline multifunction valve body, SVL 40 straightway butt weld, 40 mm (1 1/2 in), 52 bar, steel (code 148B5655)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVL 40 multifunction valve body for the SVL Flexline industrial-refrigeration range, code 148B5655. This is the bare valve housing (body only, without function module) in a low-temperature steel casting; it is welded permanently into the line and then converted to any SVL Flexline function — shut-off (SVA-S/SVA-L), regulating (REG-SA/REG-SB), check & stop (SCA-X) or check (CHV-X) — by fitting the corresponding function module (complete top part). Keeping a common body across functions lets a plant standardise on one welded housing and change the valve duty later without re-welding. This SKU is the straightway body with 40 mm (1 1/2 in) butt weld connections. Bi-flow body; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Steel construction suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Straightway bodies place the inlet and outlet in line; butt weld ends are prepared for butt-welding to the mating pipe. Order the matching SVL function module separately for the required duty and nominal size.
Specifications
- Part number
- 148B5655
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 40 mm
Compatibility
Danfoss SVL Flexline multifunction valve body. Select by nominal size (40 mm / 1 1/2 in), body direction (straightway) and connection (butt weld). The same welded body accepts any SVL Flexline function module of the matching size, so the valve duty (shut-off / regulating / check & stop / check) is set by the top part fitted, not by the body. Butt-weld and socket-weld housings are separate codes and are not interchangeable; EN (DIN) and ASME weld-end variants are also separate codes — confirm the mating pipe standard before ordering. Straightway and angleway bodies of the same size share the function-module range.
Approvals
